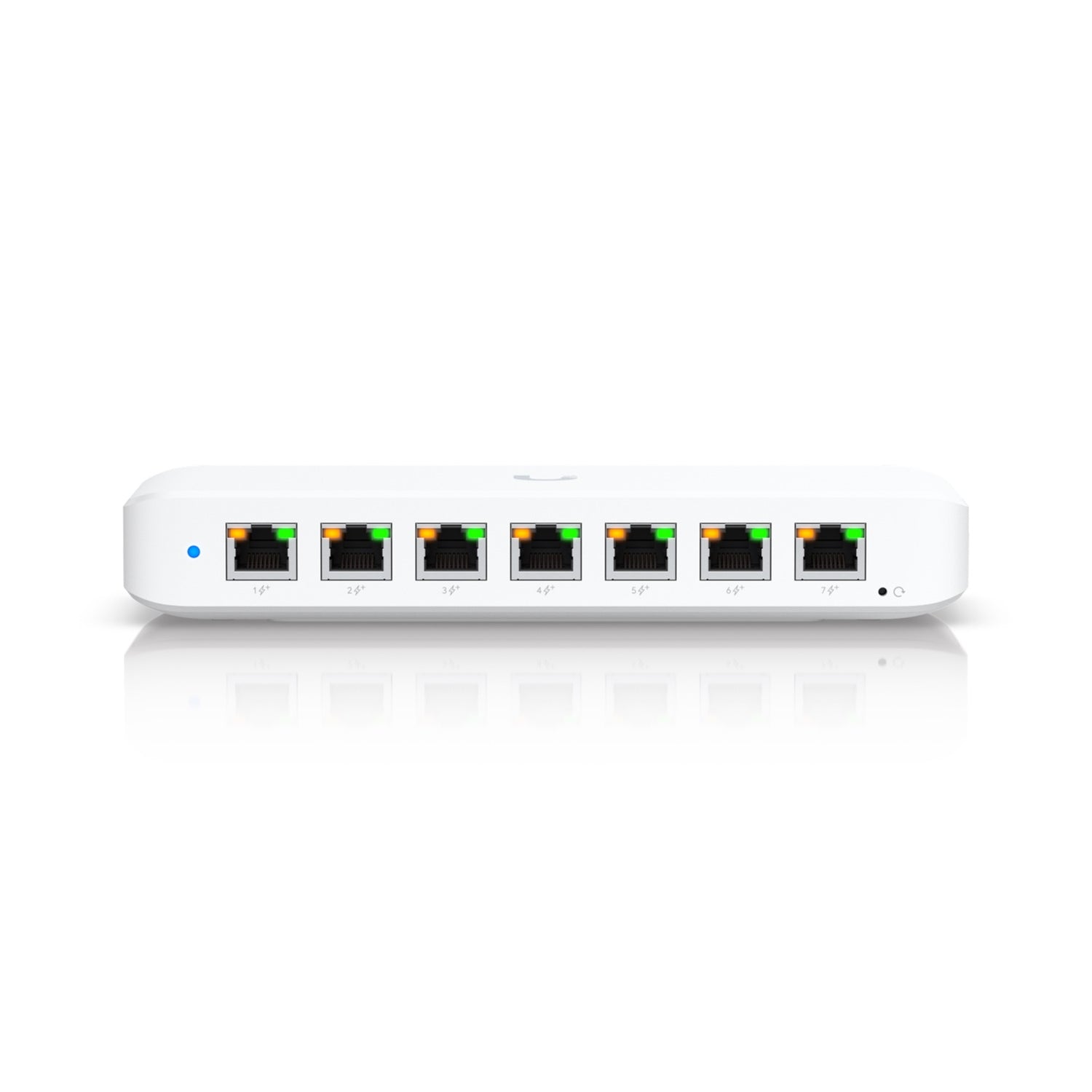

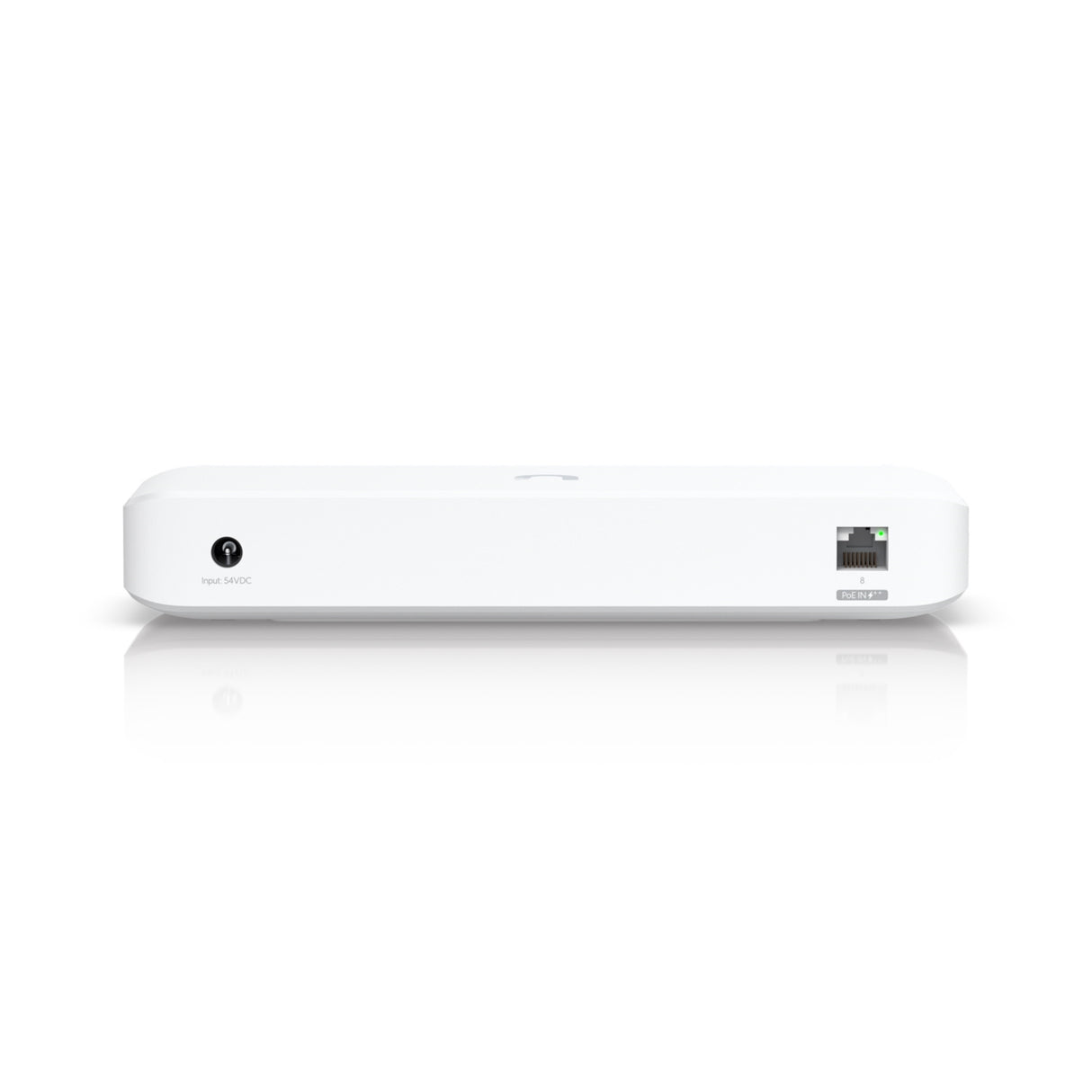

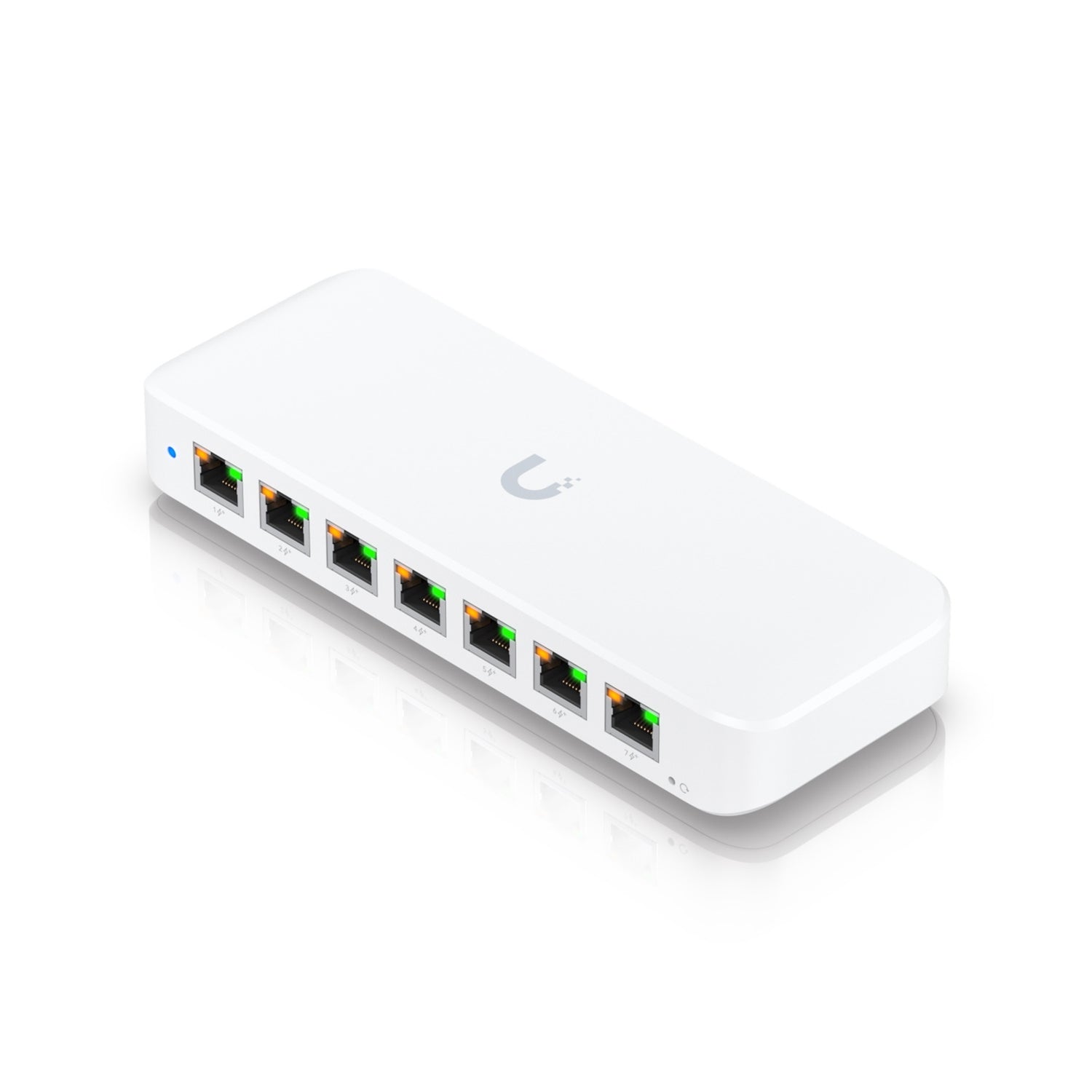

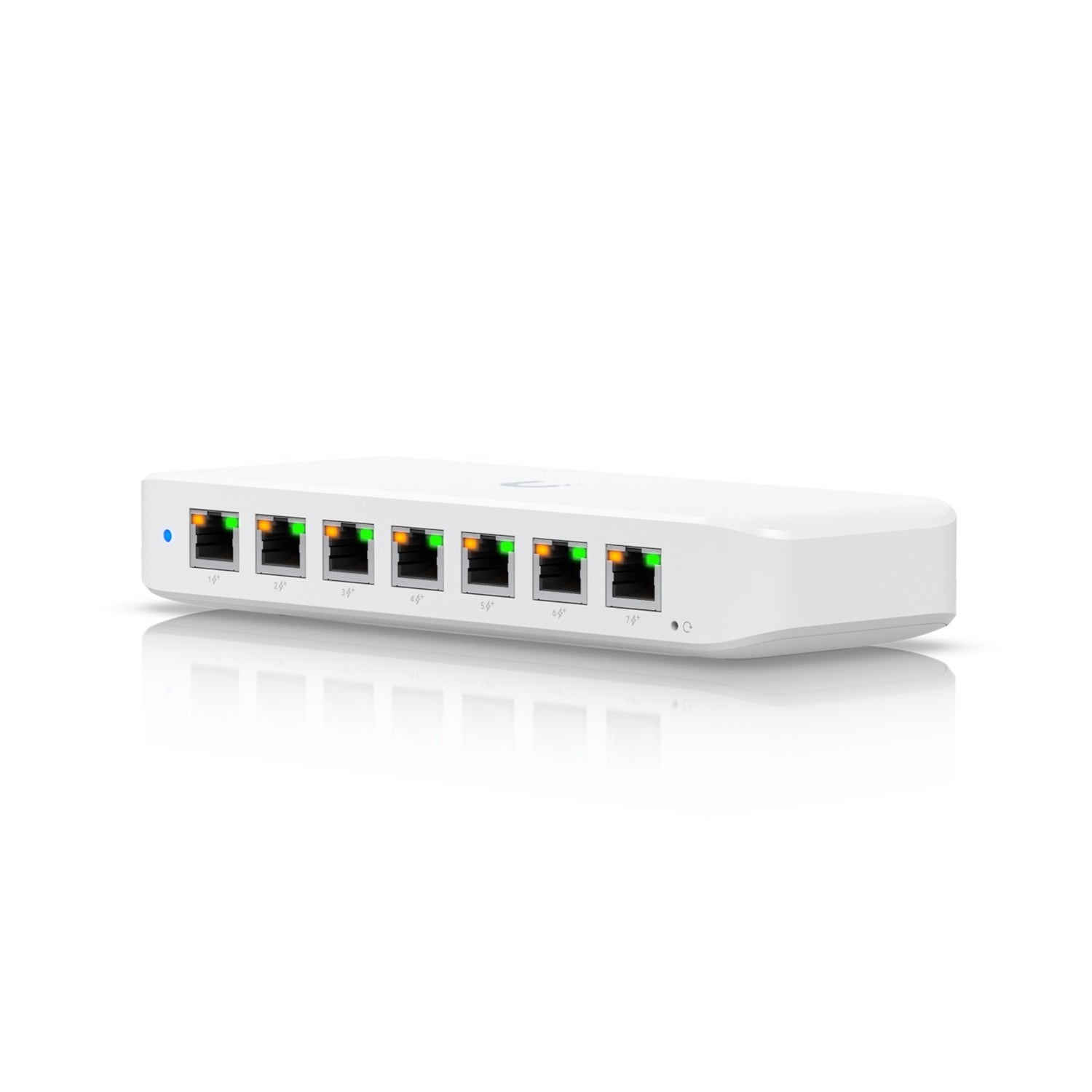

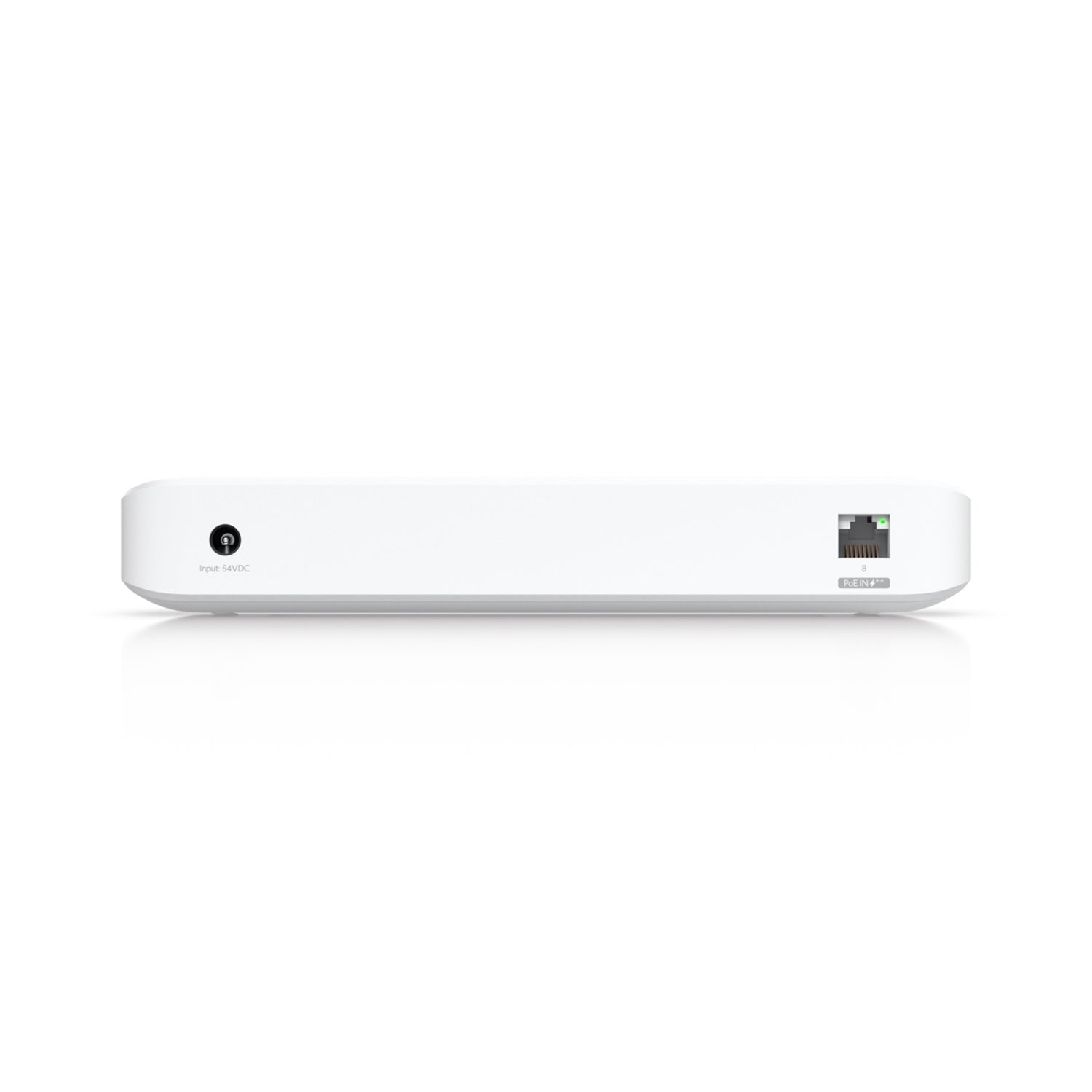

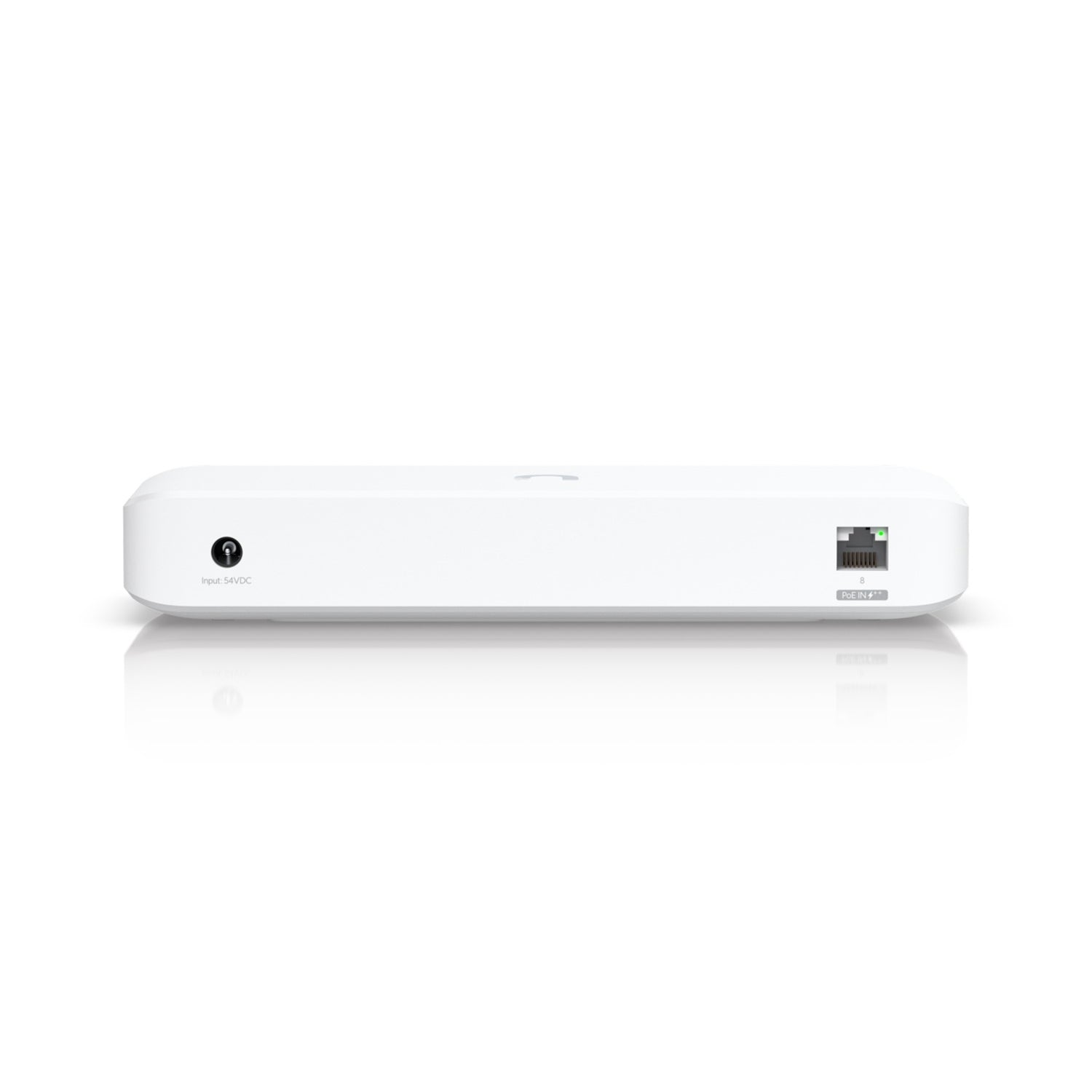

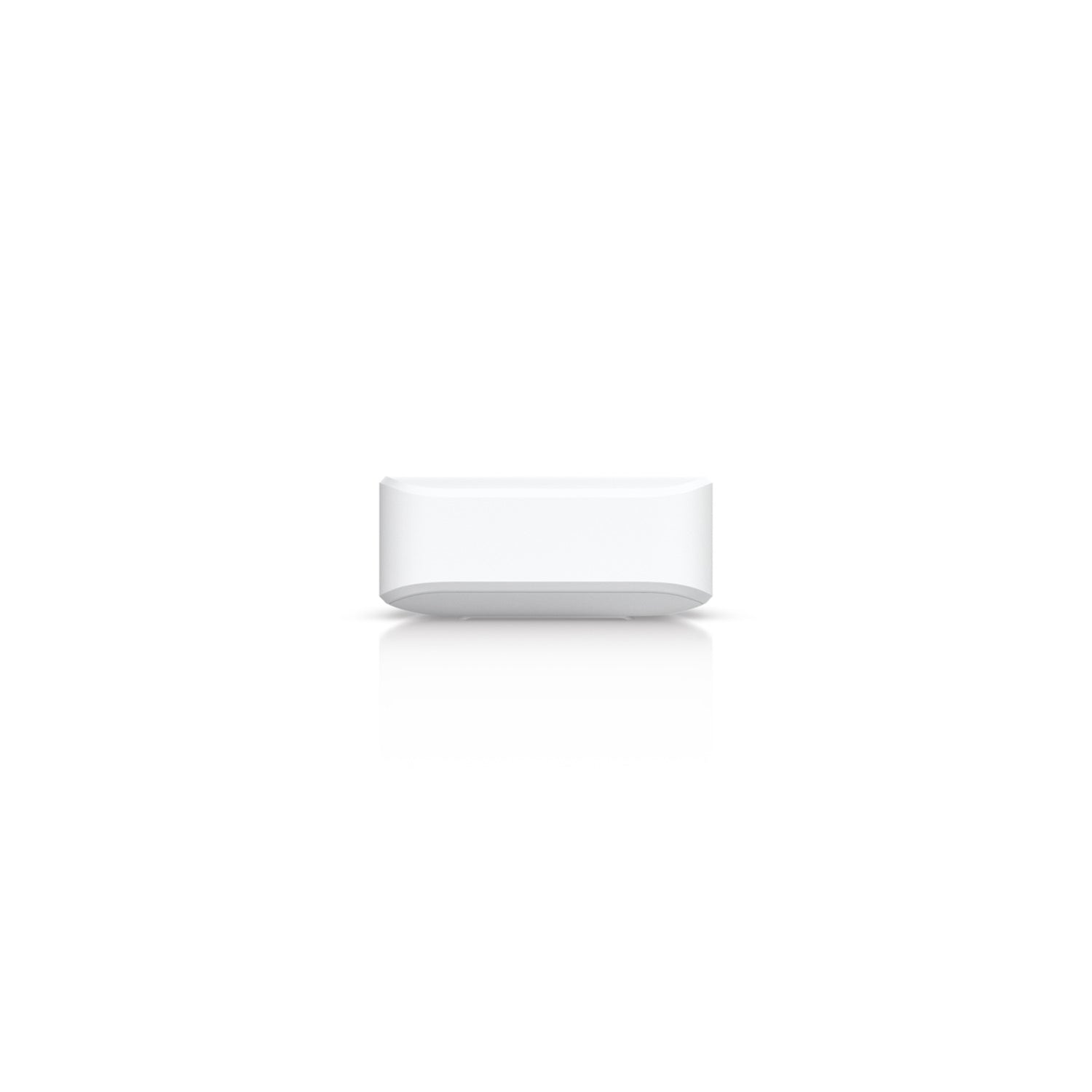

Ubiquiti USW-ULTRA-60W UniFi Switch Ultra 8 Port Layer 2 Gigabit PoE+ Switch
$235.00
Compact 8‑Port GbE PoE Layer 2 Switch
A compact, Layer 2, 8‑port GbE PoE switch designed for flexible deployment and versatile mounting options.
Key Features
- 8 Gigabit Ethernet RJ45 ports
- 7 PoE/PoE+ output ports
- 1 GbE port with optional PoE++ input
- Total non‑blocking throughput: 8 Gbps
- Switching capacity: 16 Gbps
- Forwarding rate: 11.904 Mpps
- Supports PoE, PoE+, and PoE++ (input)
- Polycarbonate enclosure
- Ethernet in‑band management
- Layer 2 feature set including port isolation, storm control, and more
- Compatible with UniFi Network version 8.0.7 and later
Technical Specifications
| Category | Details |
|---|---|
| Product Type | Compact Layer 2 8‑port GbE PoE switch |
| Enclosure Material | Polycarbonate |
| Management Interface | Ethernet In‑Band |
| Networking Interface | (8) GbE RJ45 ports |
| PoE Interface | (7) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total Non‑Blocking Throughput | 8 Gbps |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.904 Mpps |
Power & PoE
| Category | Details |
|---|---|
| Power Method | (1) 54V, 1.1A power adapter (included) |
| Power Supply | 54V external, 1.1A / 60W |
| Supported Voltage Range | 44—57V DC |
| Max. Power Consumption | 9W with PoE input (excluding PoE output) |
| 8W with AC adapter input (excluding PoE output) | |
| Total Available PoE | PoE++ input: 42W |
| PoE+ input: 16W | |
| 60W PoE adapter input: 42W | |
| 60W AC adapter input: 52W | |
| 210W AC adapter input: 202W | |
| Max. PoE+ Wattage per Port | 30W by PSE |
| PoE Input Pins | PoE++ (Pins 1, 2+; 3, 6‑ and 4, 5+; 7, 8‑) |
Physical & Environmental
| Category | Details |
|---|---|
| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
| Weight – Device | 320 g (11.3 oz) |
| Weight – Wall Mount | 45 g (1.6 oz) |
| Weight – 60W Adapter | 330 g (11.6 oz) |
| Ambient Operating Temperature | PoE++ input: -30 to 60° C (-22 to 140° F) |
| 60W AC adapter input: -20 to 45° C (-4 to 113° F) | |
| 210W AC adapter input: -20 to 60° C (-4 to 140° F) | |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Button | Factory Reset |
Layer 2 Features
- Port isolation
- Storm control
- Port mirroring
- Multicast / broadcast rate limiting
- Flow control
- Jumbo frames
- Egress rate limit
Indicators & System
- System status
- Ethernet
- PoE
- Link/Activity
Certifications
- CE
- FCC
- IC
Software Compatibility
- UniFi Network version 8.0.7 and later
