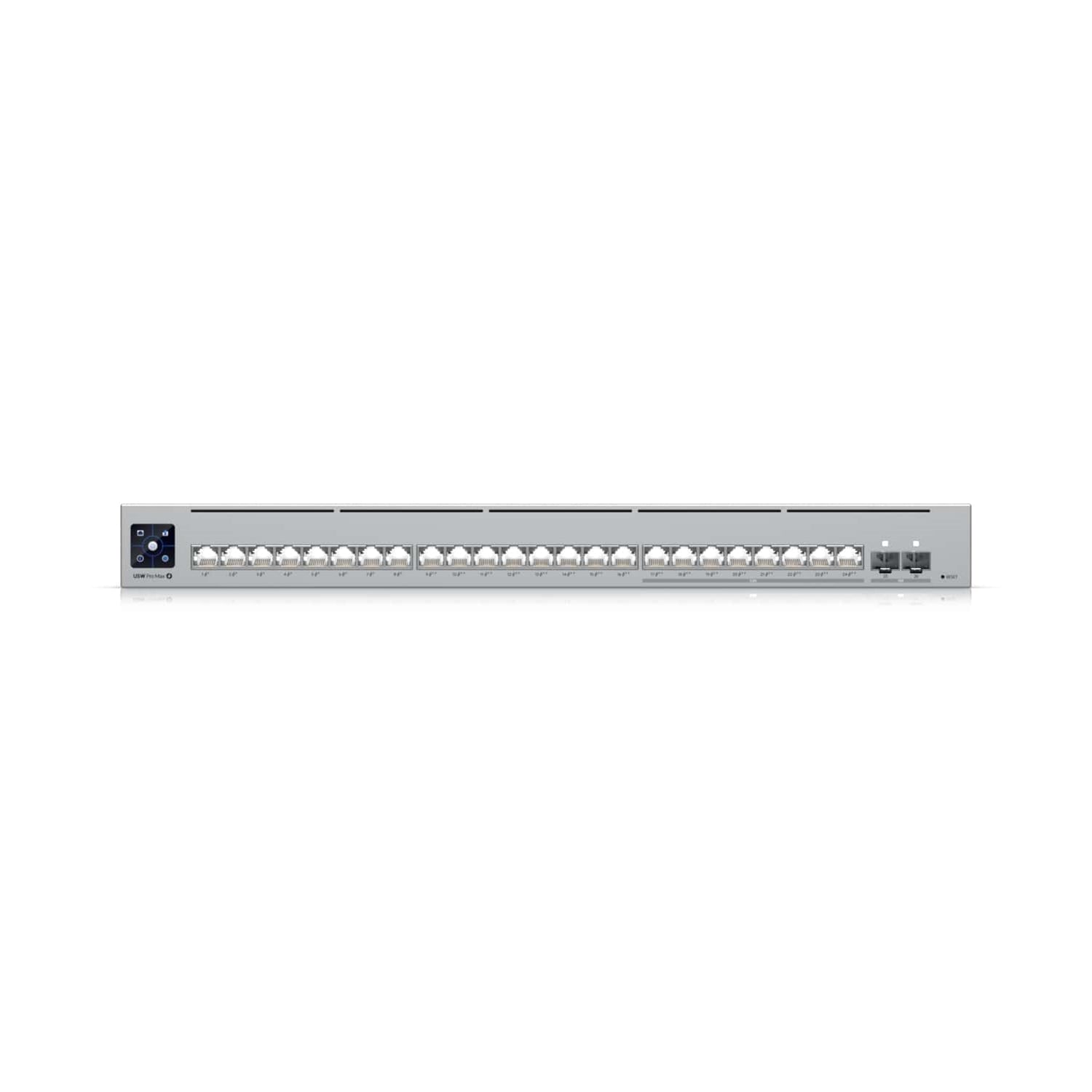

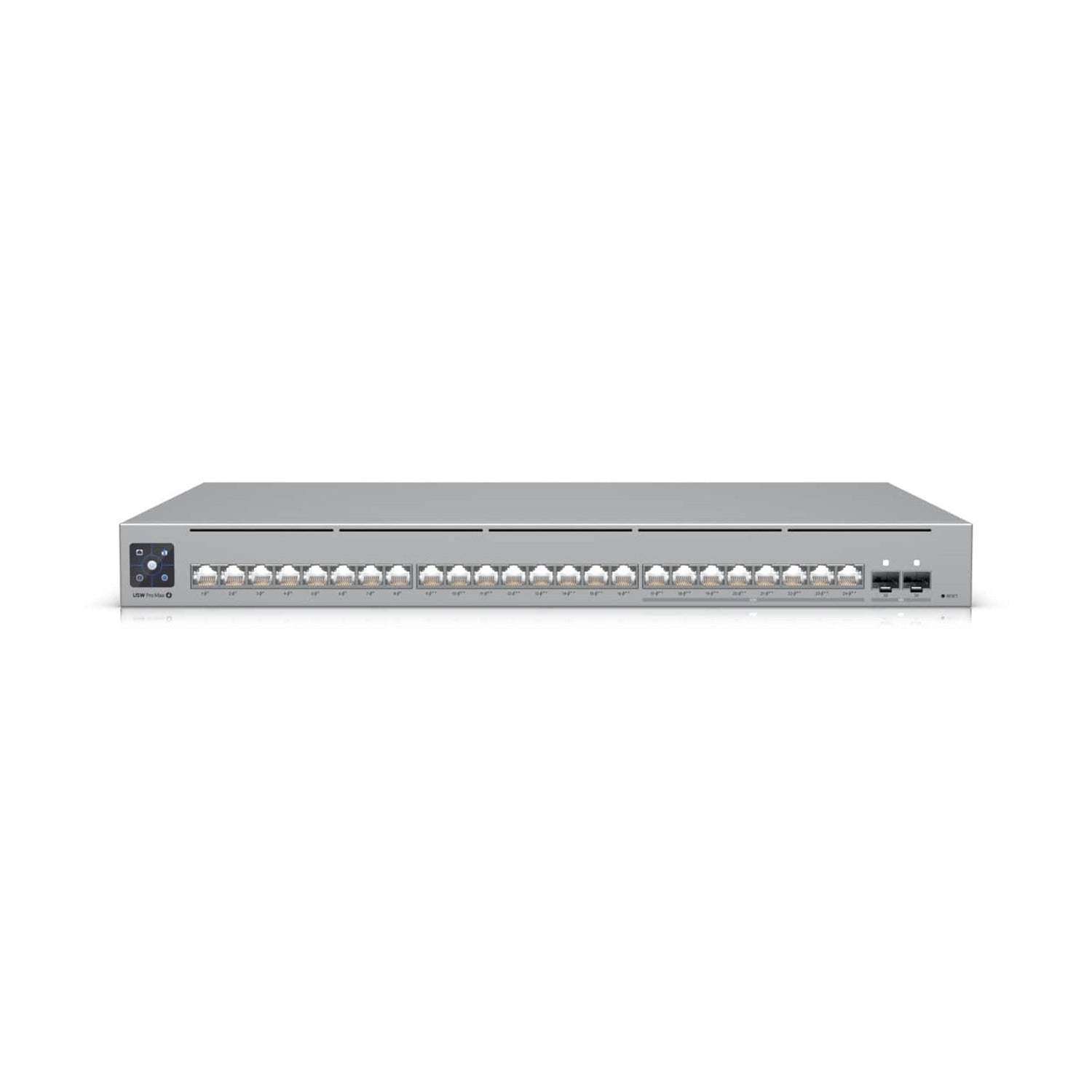

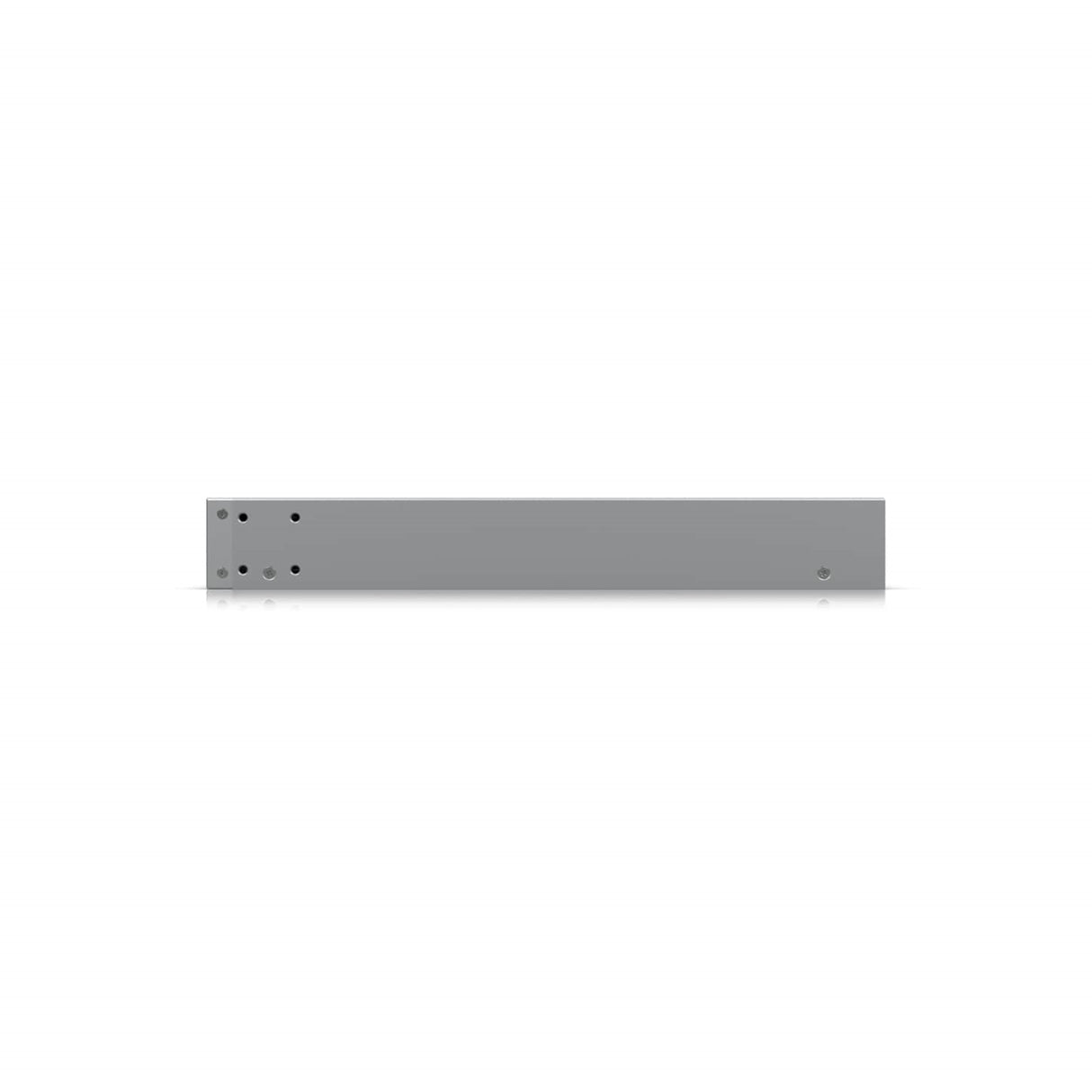

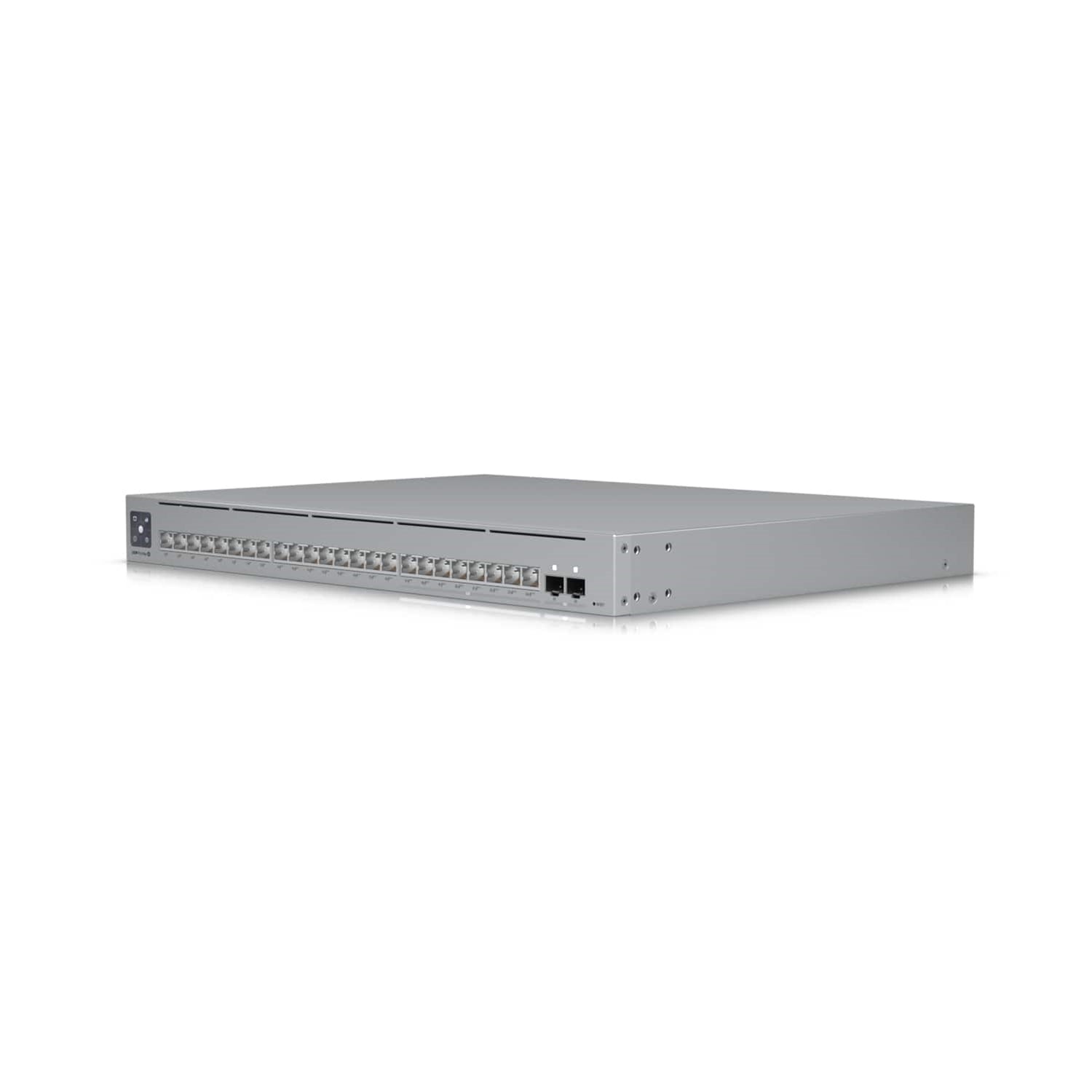

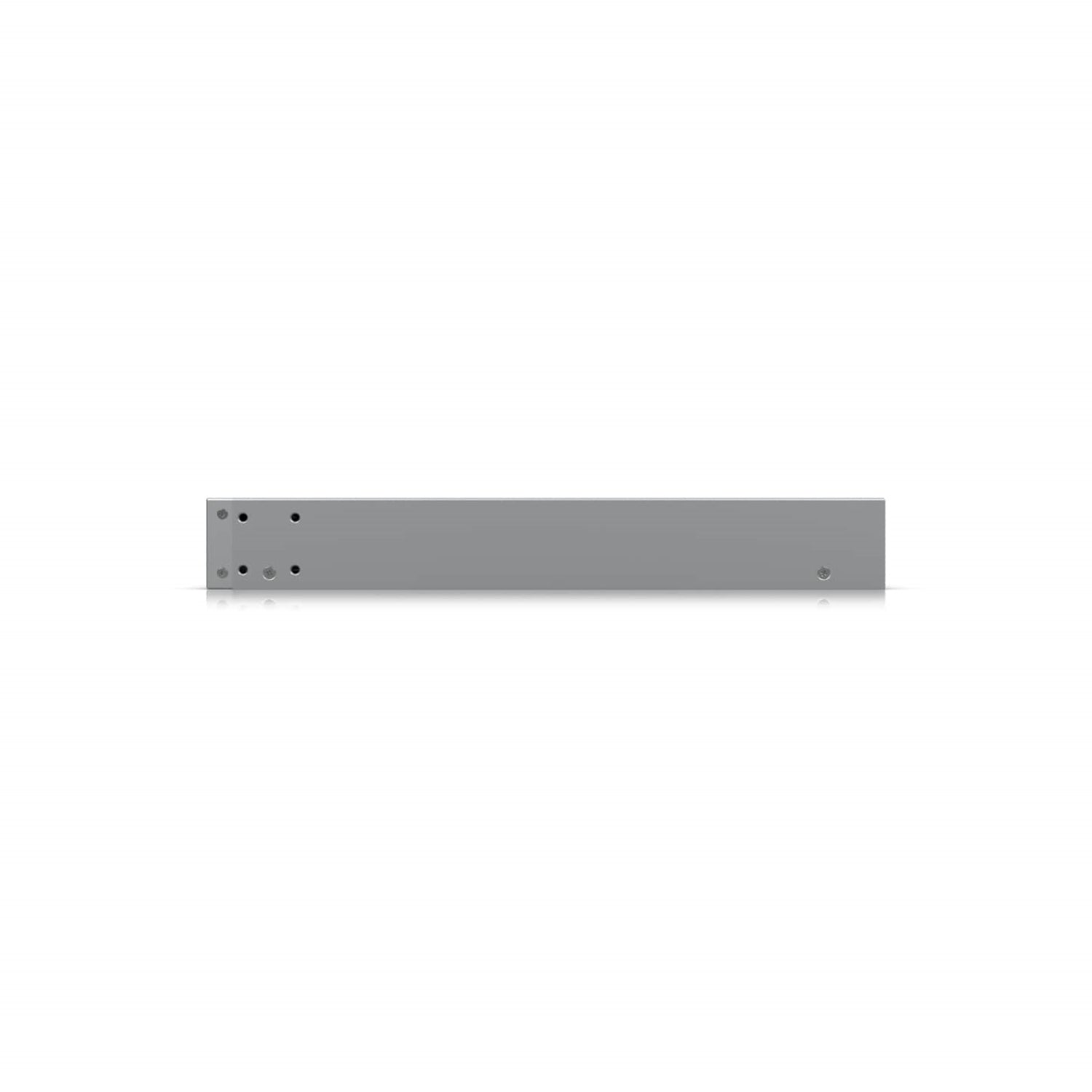

Ubiquiti UniFi Pro Max 24 PoE Network Switch - USW-Pro-Max-24-POE
$1,267.00
Ubiquiti UniFi USW-Pro-Max-24-PoE Network Switch
The Ubiquiti UniFi USW-Pro-Max-24-PoE is a cutting-edge Layer 3 Etherlighting switch designed for high-power PoE++ output. This 24-port switch delivers an exceptional blend of performance and innovation, making it ideal for demanding network environments.
Key Features
- 24-port Layer 3 network switch
- 8 × 2.5 GbE PoE++ RJ45 ports
- 16 × GbE RJ45 ports, including:
- 8 × PoE+ ports
- 8 × PoE++ ports
- 2 × 10G SFP+ ports for high-speed uplinks
- Etherlighting ports that illuminate to indicate:
- Port location
- Speed/link
- Native VLAN/network
- Etherlighting brightness optimized when used with UniFi Etherlighting Patch Cables
- DC power backup ready
- 400W total PoE power availability
- Total non-blocking throughput: 56 Gbps
- Switching capacity: 112 Gbps
Specifications
Mechanical
| Parameter | Value |
|---|---|
| Dimensions | 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7") |
| Weight (without brackets) | 5.1 kg (11.3 lb) |
| Weight (with brackets) | 5.2 kg (11.5 lb) |
| Enclosure material | SGCC steel |
Hardware & Interfaces
| Category | Details |
|---|---|
| Management interface | Ethernet In-Band |
| Networking interfaces | (16) GbE RJ45 ports |
| (8) 1/2.5 GbE RJ45 ports | |
| (2) 10G SFP+ ports | |
| PoE interfaces | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) | |
| Total non-blocking throughput | 56 Gbps |
| Switching capacity | 112 Gbps |
Power
| Parameter | Value |
|---|---|
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| DC input | USP RPS DC input |
| Power supply | AC/DC, internal, 450W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 50W (excluding PoE output) |
| Total available PoE | 400W |
| Max. PoE wattage per port (PSE) | PoE: 15.4W |
| PoE+: 30W | |
| PoE++: 60W | |
| Voltage range PoE mode | PoE: 44—57V |
| PoE+: 50—57V |
Controls & Display
| Component | Details |
|---|---|
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
Certifications
- CE
- FCC
- IC
Etherlighting Functionality
Ethernet Ports
- Locating
- Speed/link
- Native VLAN/network
SFP+ Ports
- Locating
- Speed/link
- Native VLAN/network
LEDs
- System status
- RPS status
Box Contents
- 1 × USW-Pro-Max-24-PoE Switch
- 4 × rubber feet
- 1 × UK power cable
- 1 × pair rackmount ears
- 1 × rackmount accessories set
