Ubiquiti UBB UniFi Building-to-Building Bridge (Point to Point Networking Kit)
$772.00

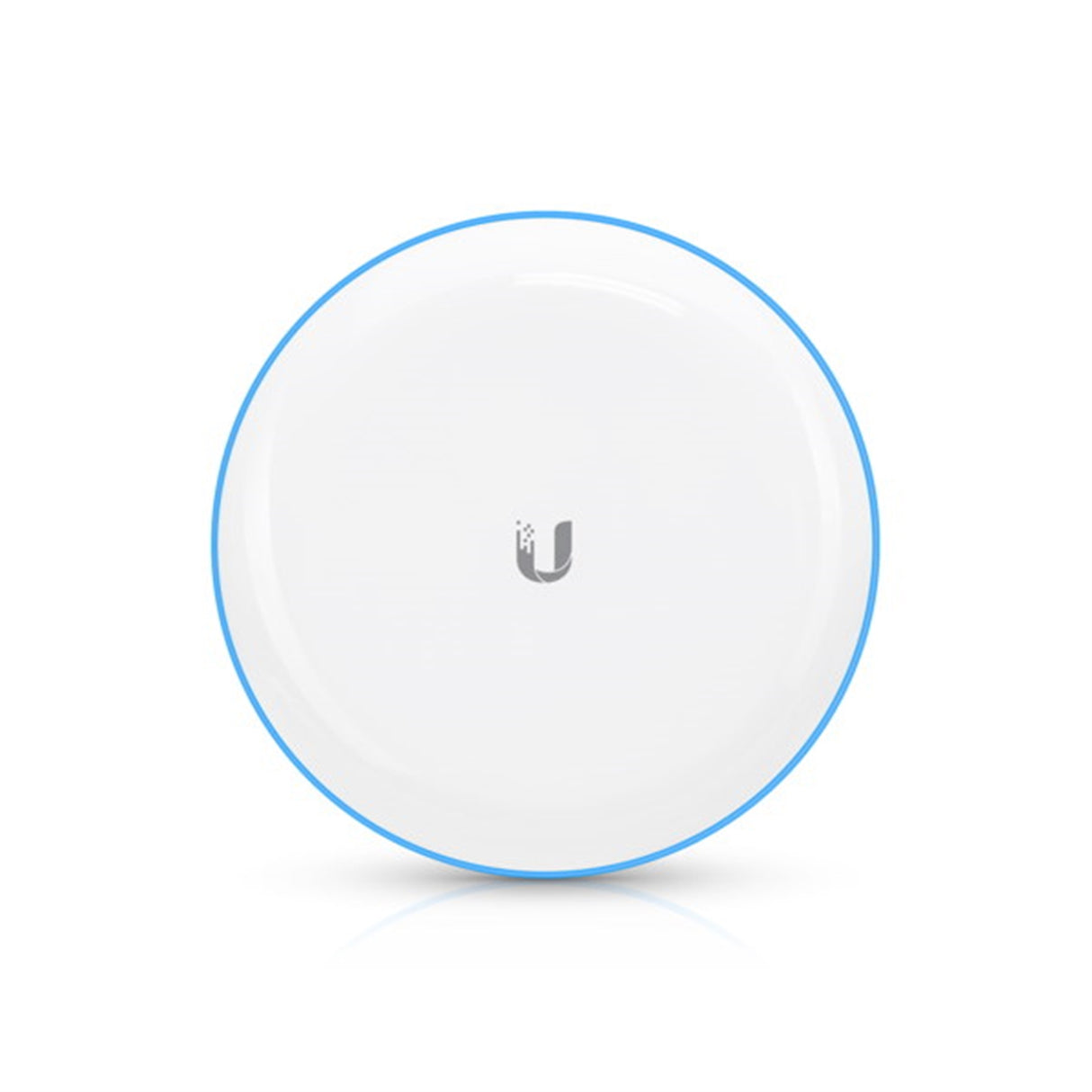

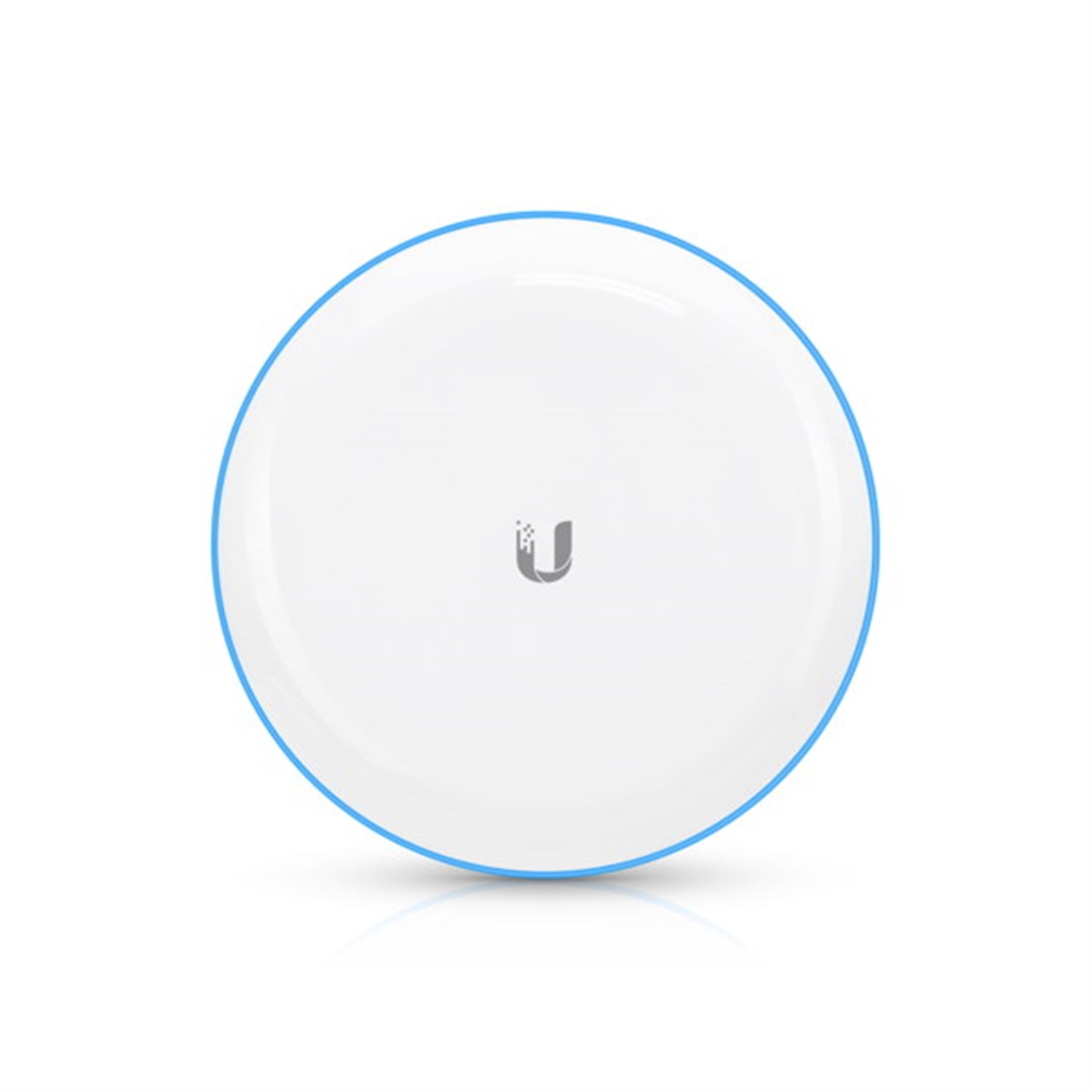

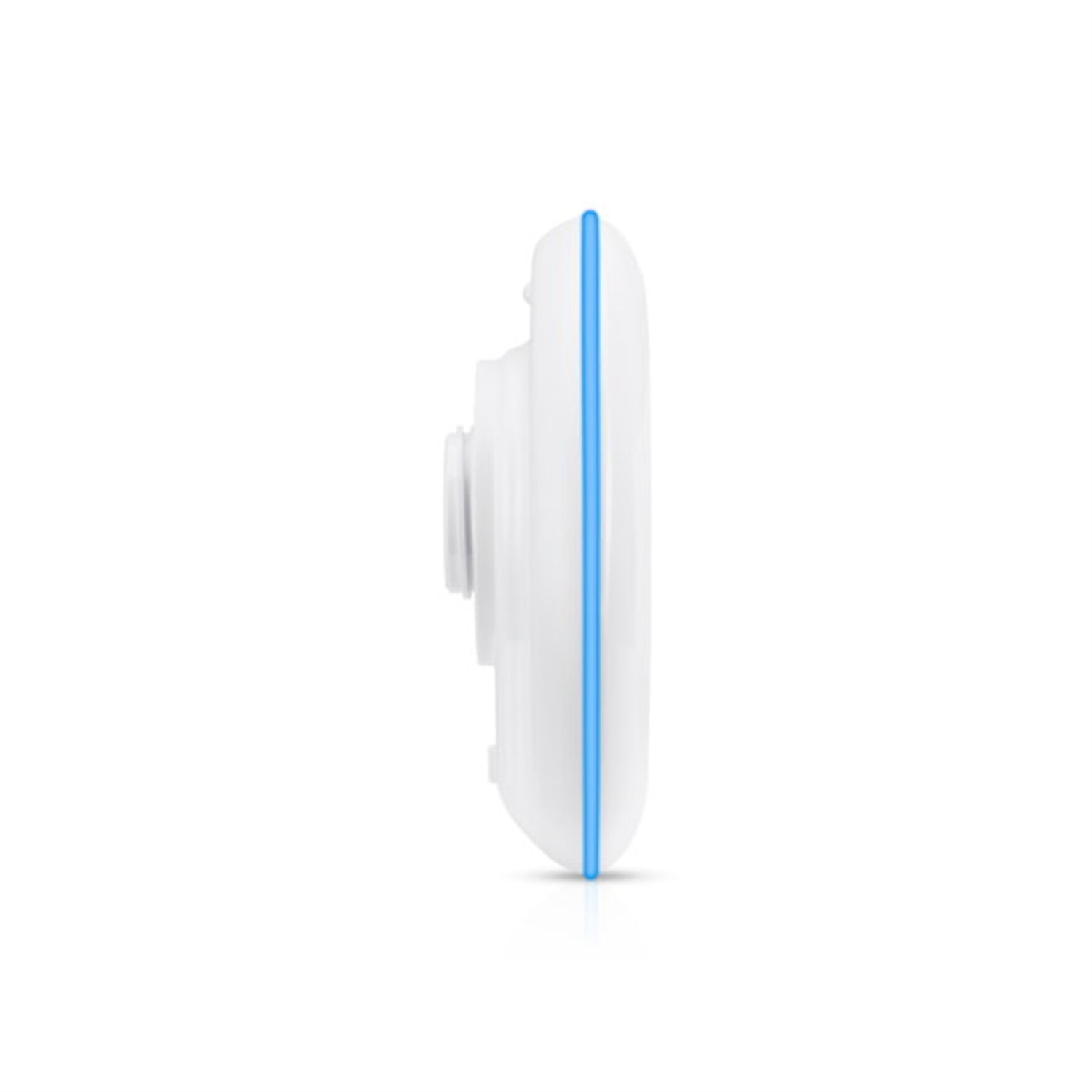

UniFi Building-to-Building Bridge – 60 GHz PtP with 5 GHz Backup
A 60 GHz point-to-point (PtP) link using 802.11ad with an integrated 5 GHz radio for backup. Designed for high‑throughput connectivity with a range of up to 500 m, this 1.7+ Gbps bi‑directional Plug and Play 60 GHz bridge delivers fast, reliable building‑to‑building wireless networking.
Integration with the UniFi Controller makes bridging two networks seamless. Sold as a pack of two radios, the UniFi Building‑to‑Building Bridge includes everything needed to get up and running within minutes for simple, easy‑to‑use gigabit connectivity.
Key Features
- 60 GHz PtP link using 802.11ad
- Integrated 5 GHz radio for backup redundancy
- Up to 1.7+ Gbps bi‑directional throughput
- Range of up to 500 m
- Plug and Play 60 GHz bridge design
- UniFi Controller management for seamless network bridging
- Simple, easy‑to‑use gigabit connectivity

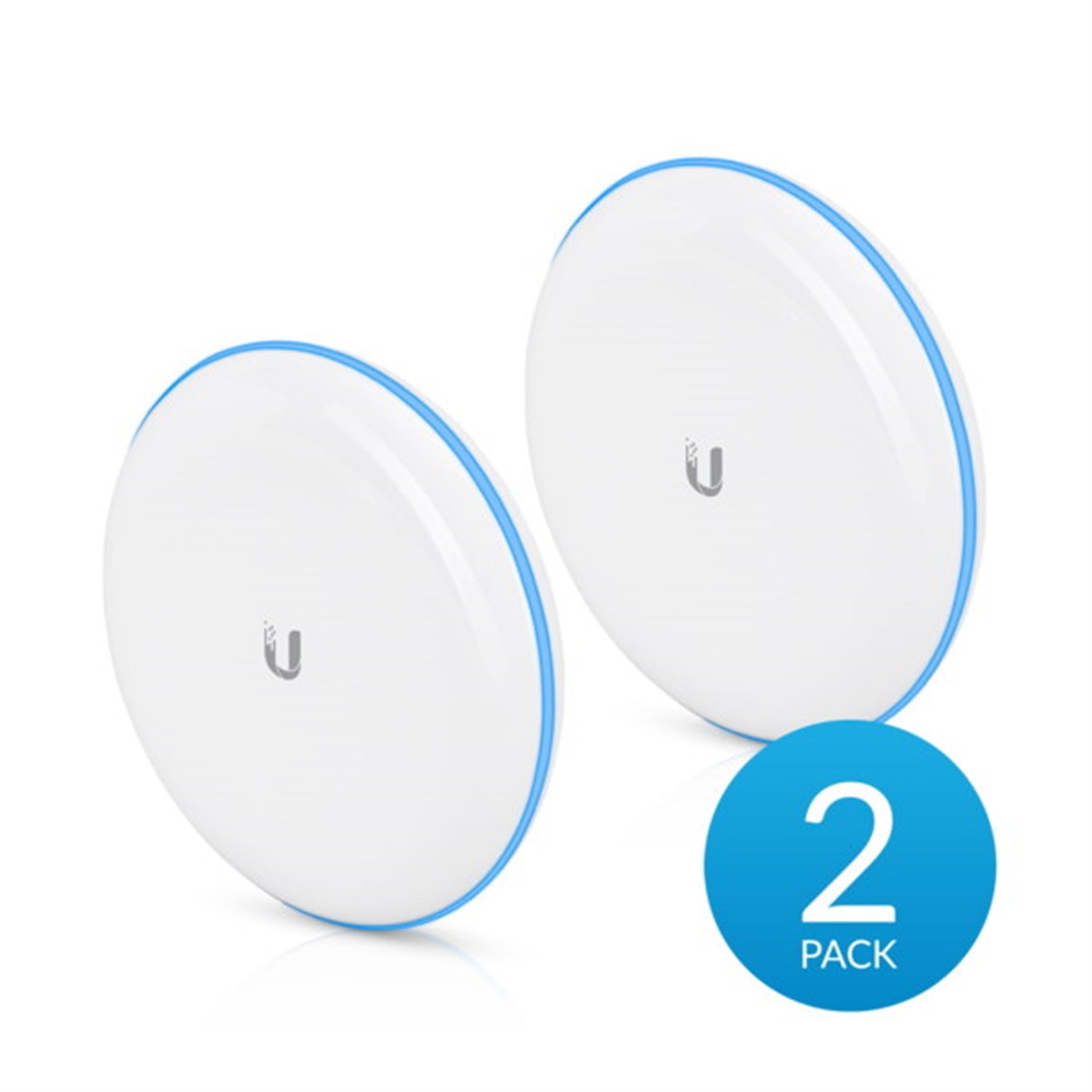

- Supplied as a pack of two radios
Package Contents
- UniFi Building‑to‑Building Bridge (x2)
- Ball joint mount (x2)
- Lock ring (x2)
- Metal strap (x2)
- Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
- Power cord (x2)
Easy Alignment with LED Indicator
Use the built‑in LED indicator to adjust the bridge position for optimal signal alignment with the paired device.
Simple Setup with UniFi Controller
The UniFi Building‑to‑Building Bridge integrates with the UniFi Controller, making it easy to configure and manage, and enabling seamless bridging between two networks.
Technical Specifications
| Specification | Detail |
|---|---|
| Dimensions | 140 x 140 x 90 mm (5.51 x 5.51 x 3.54") |
| Weight | 376 g (13.3 oz) |
| GPS | Yes |
| Maximum TX Power | 25 dBm (5 GHz) |

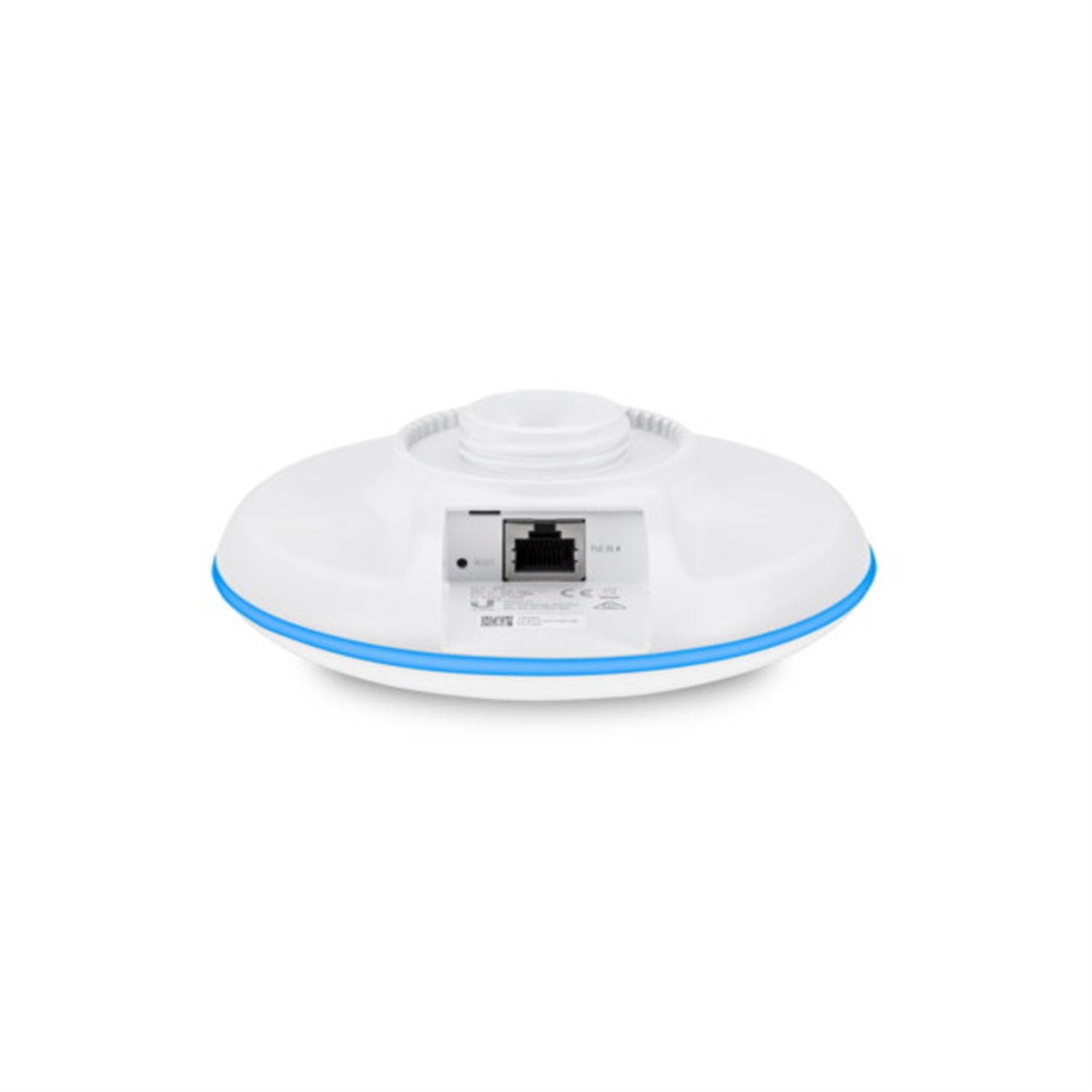

| Interfaces | (1) 10/100/1000 Ethernet Port |
| Bluetooth | Yes |
| Enclosure | UV‑Resistant Polycarbonate |
| Power Method | 802.3af Supported, Passive Power over Ethernet (48V) |
| Power Supply | UniFi PoE Switch; 48V, 0.32A Gigabit PoE Adapter (Included) |
| Max Power Consumption | 11 W |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |

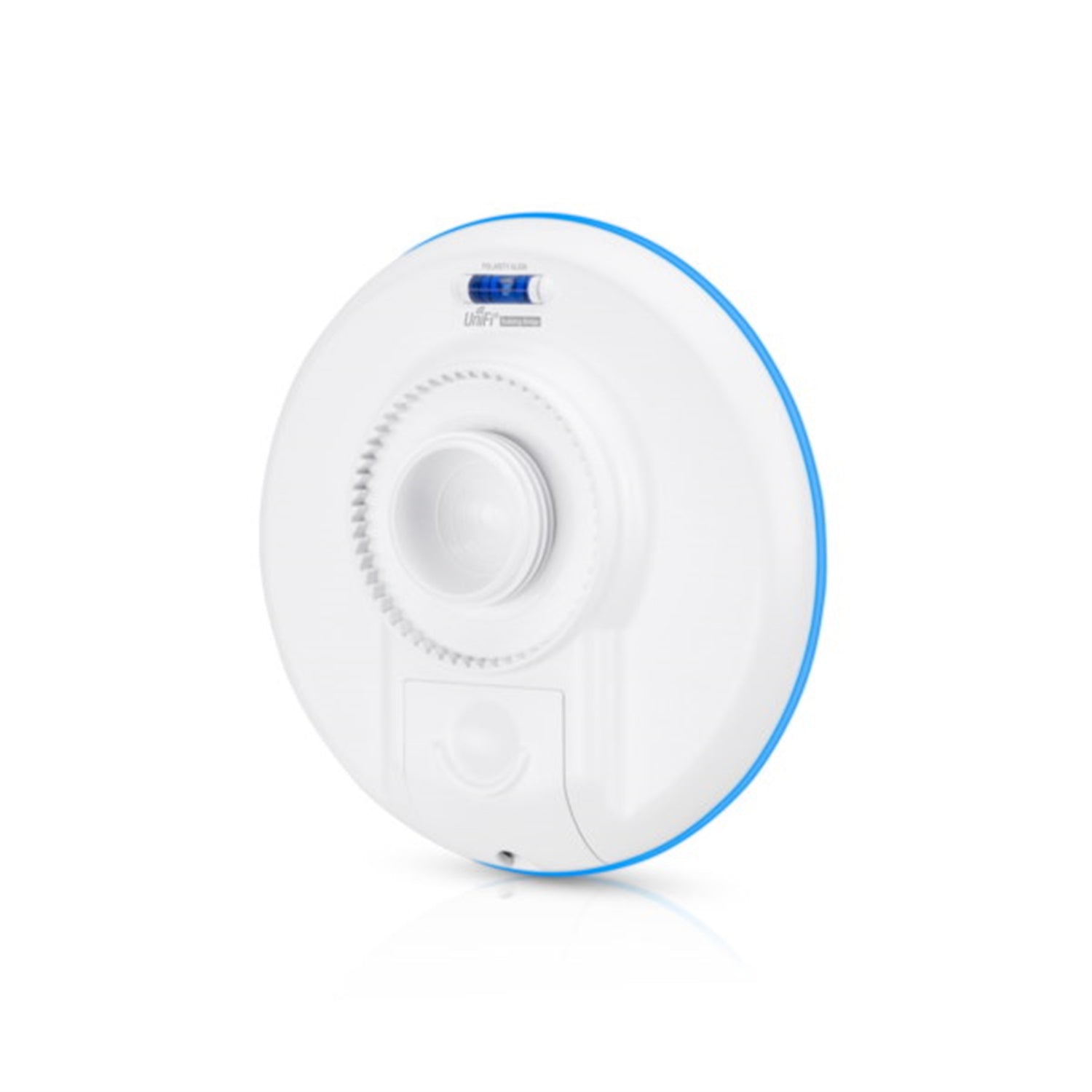

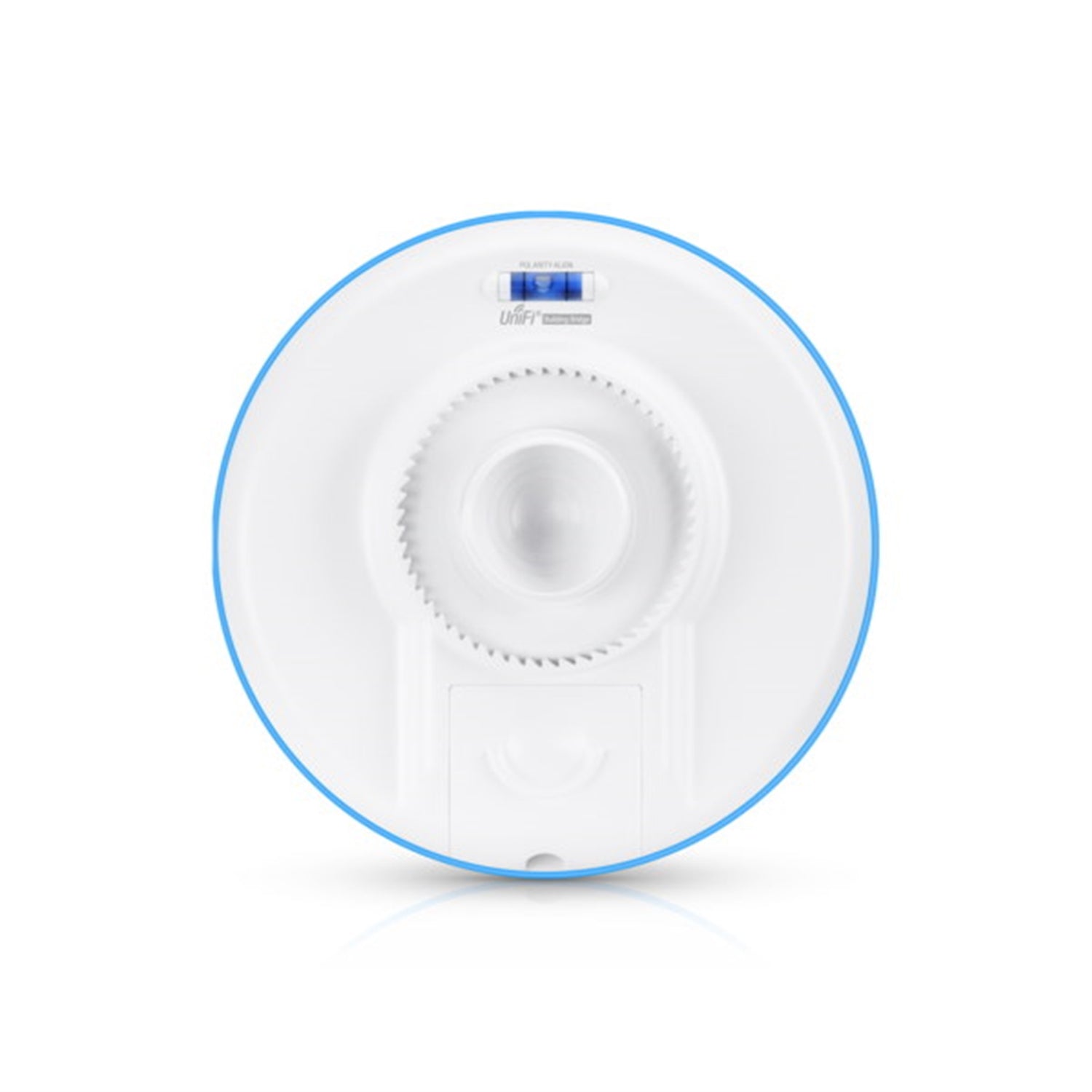

| Mounting | Pole‑Mount (Kit Included); Wall‑Mount (Not Included) |
| ESD/EMP Protection | 24kV Contact/Air |
| Operating Temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
