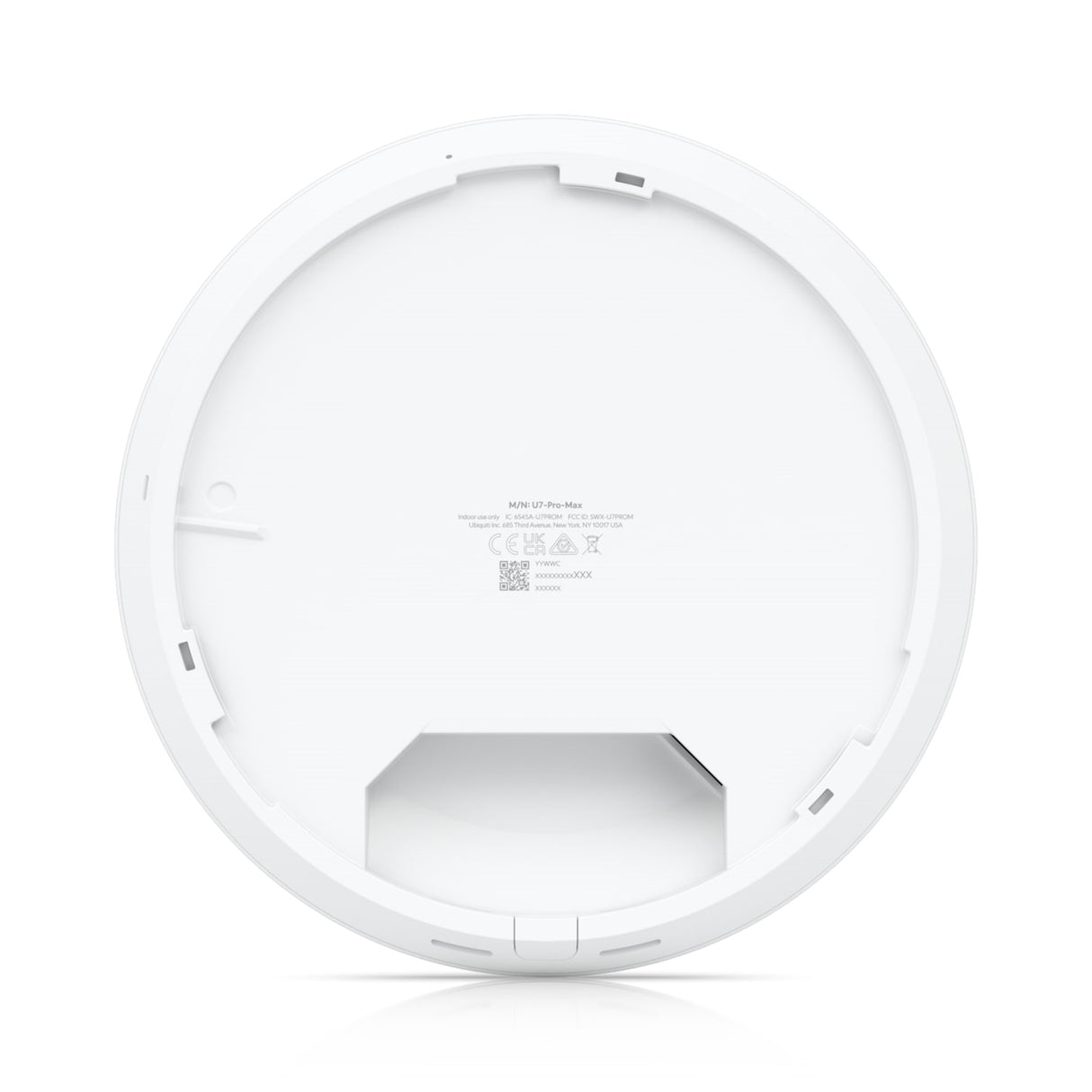

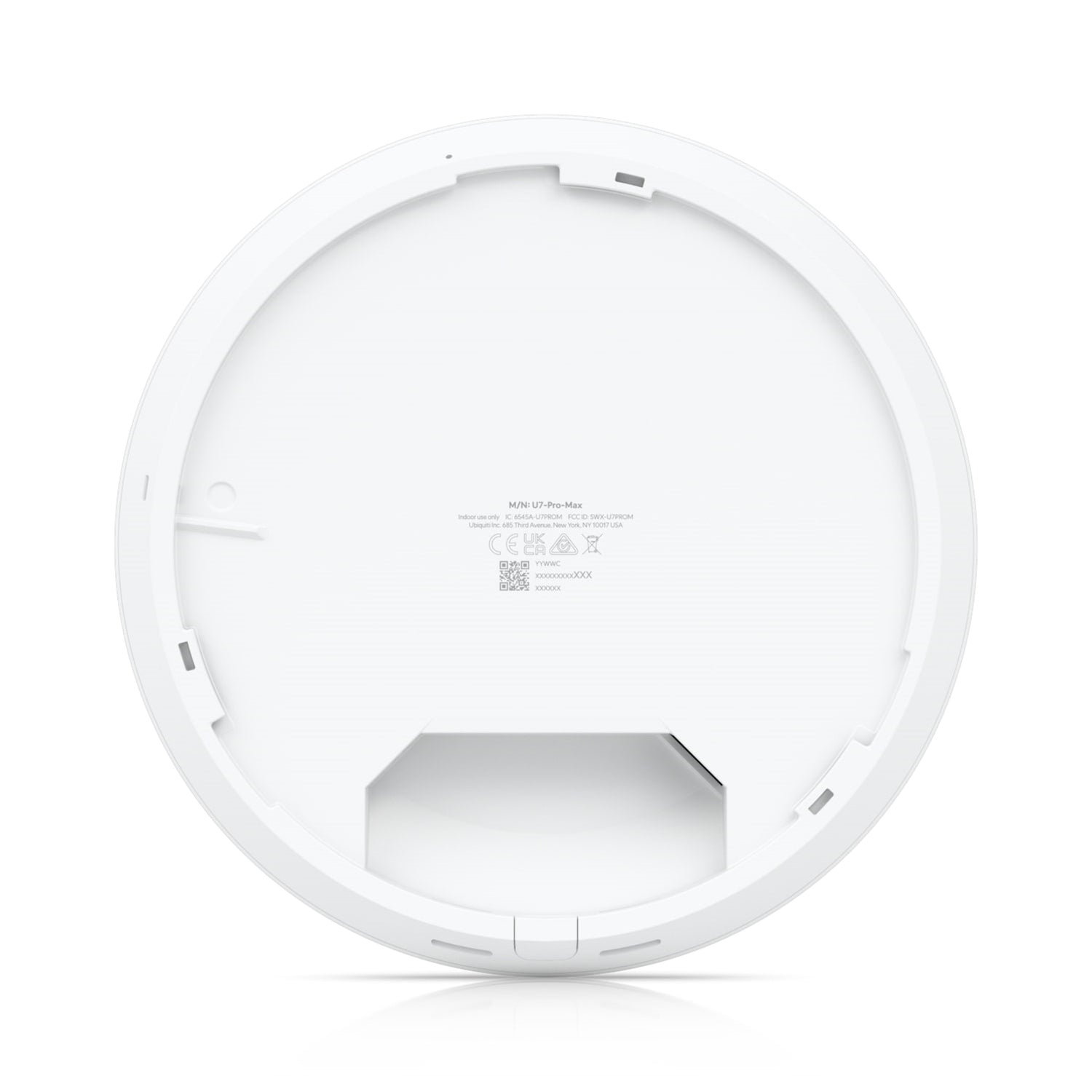

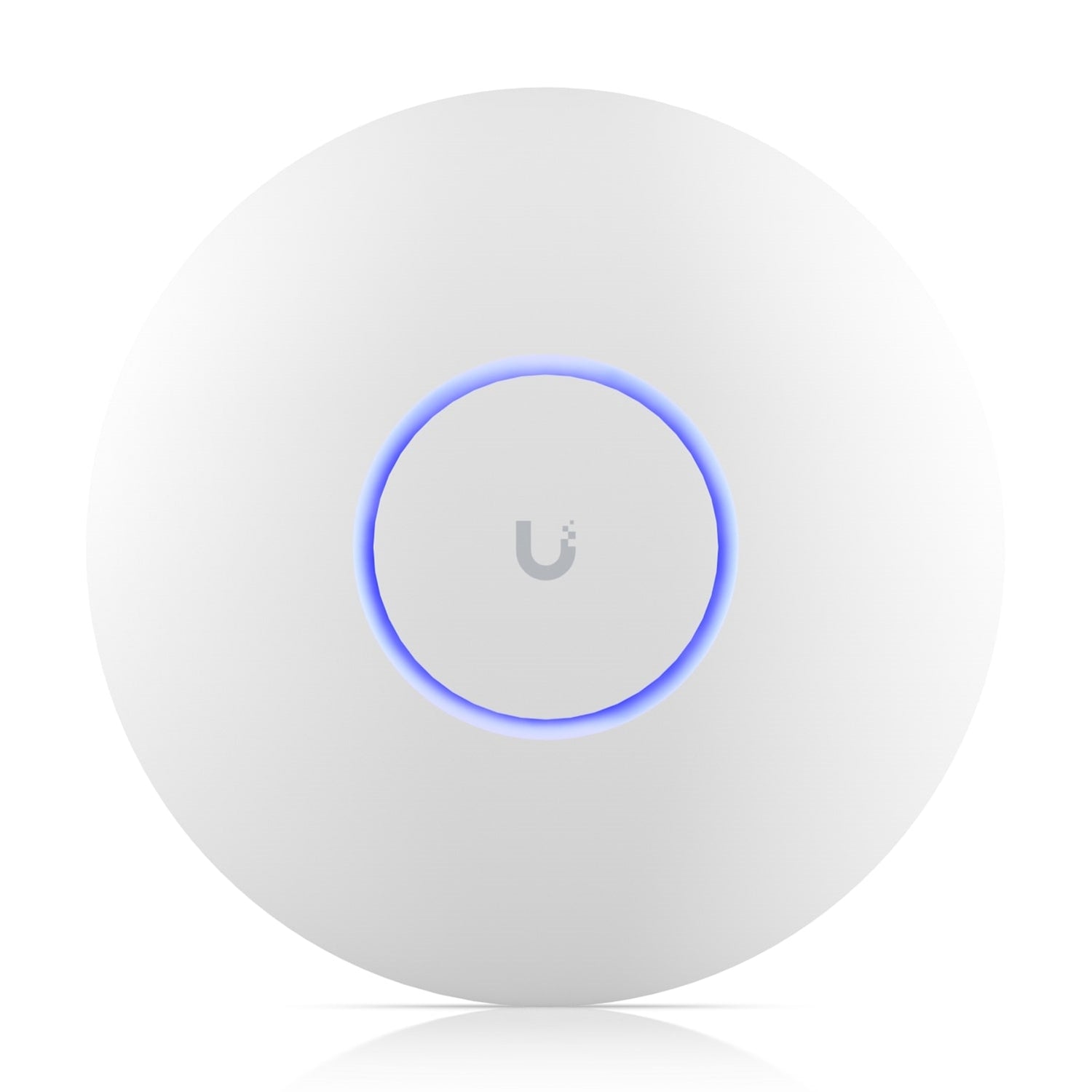

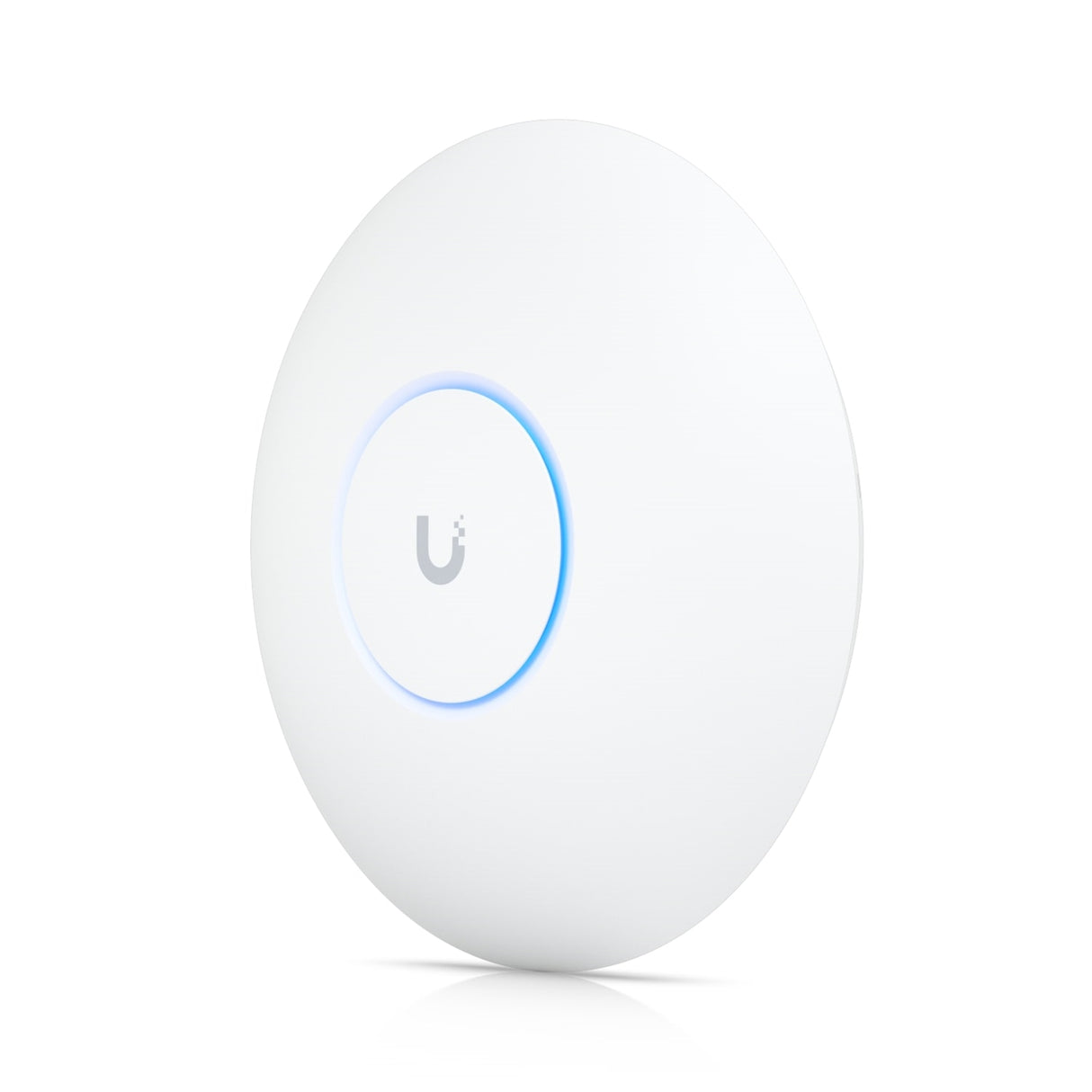

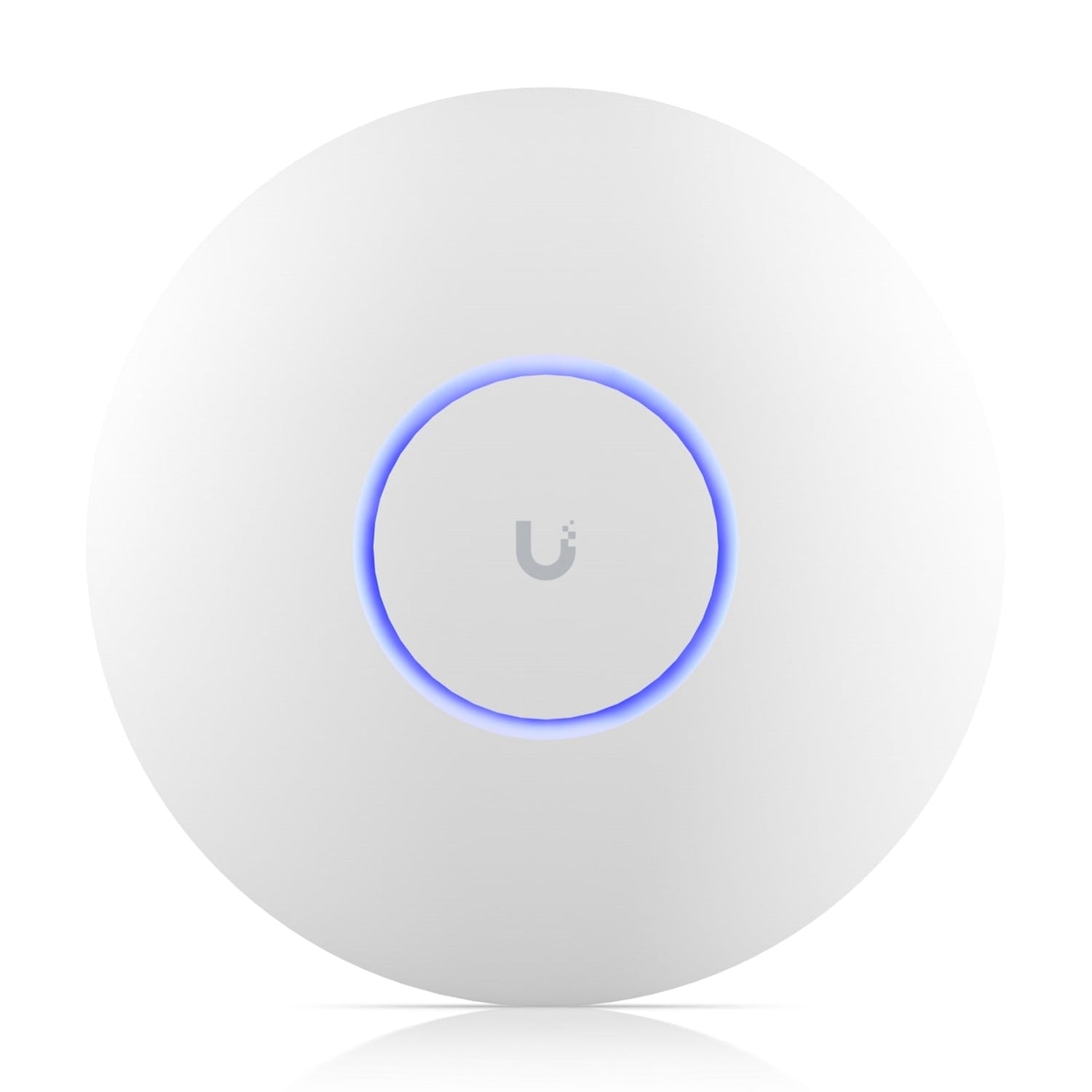

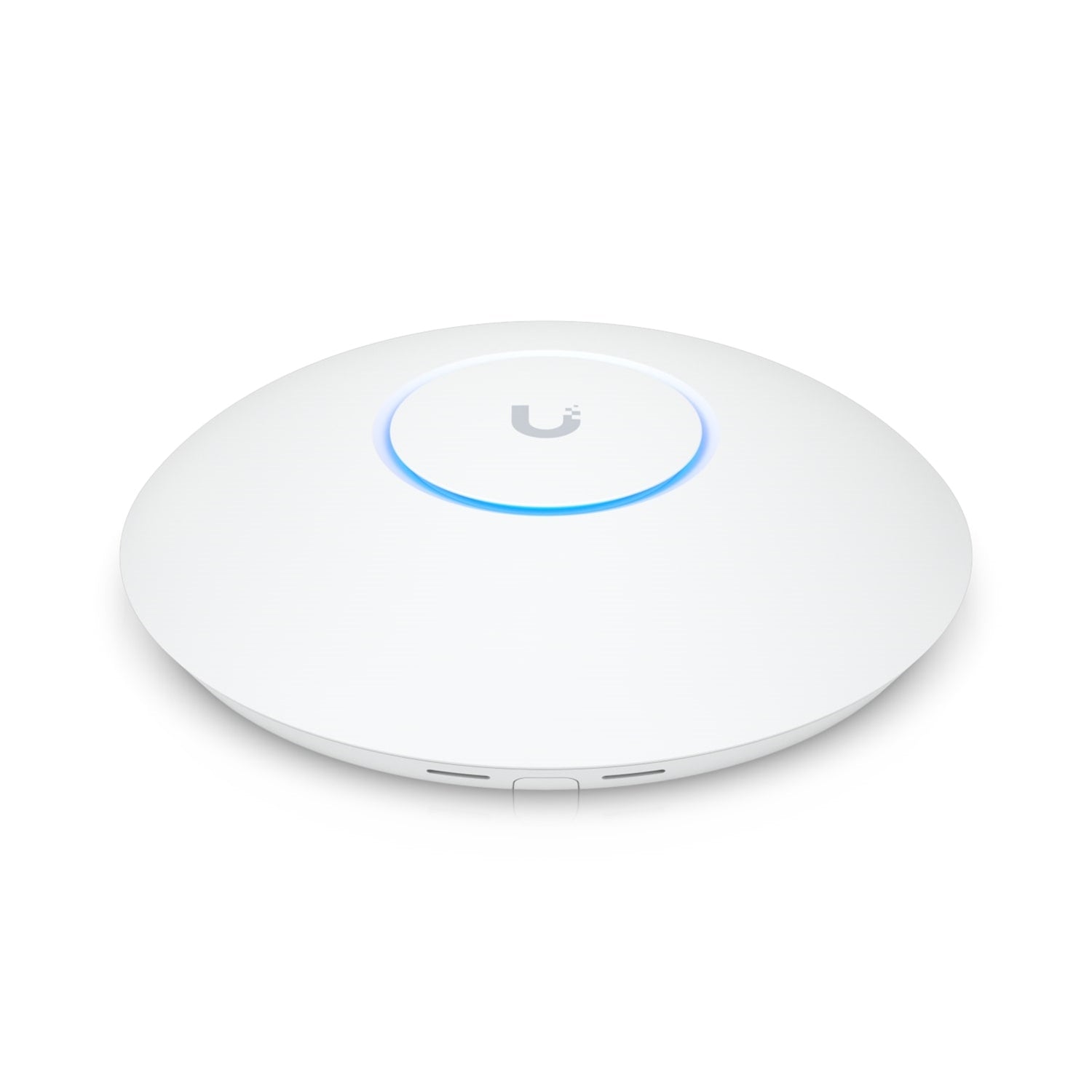

Ubiquiti U7-PRO-MAX U7 Pro Max WiFi 7 Ceiling Mounted Access Point with 2.5GbE Uplink
$454.00

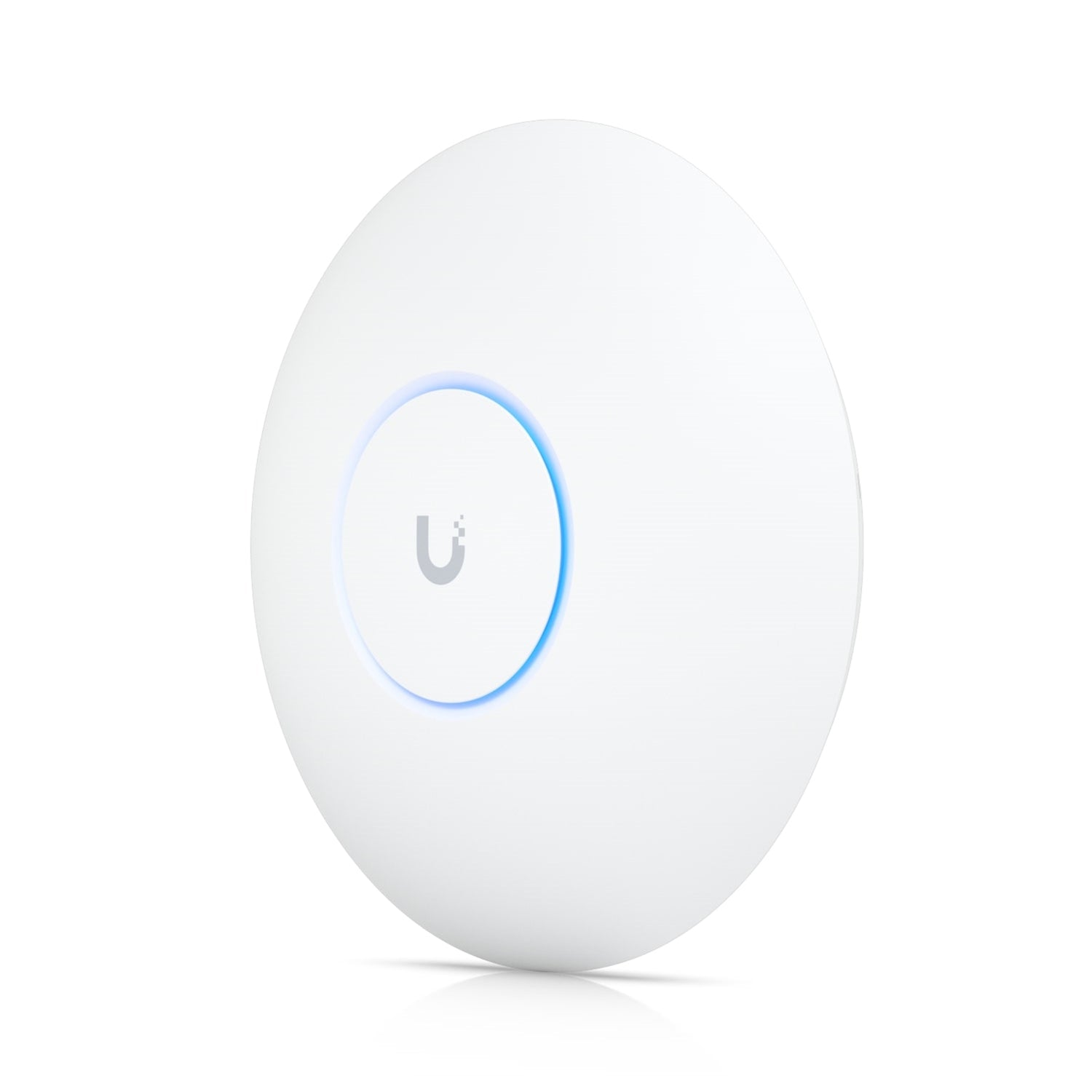

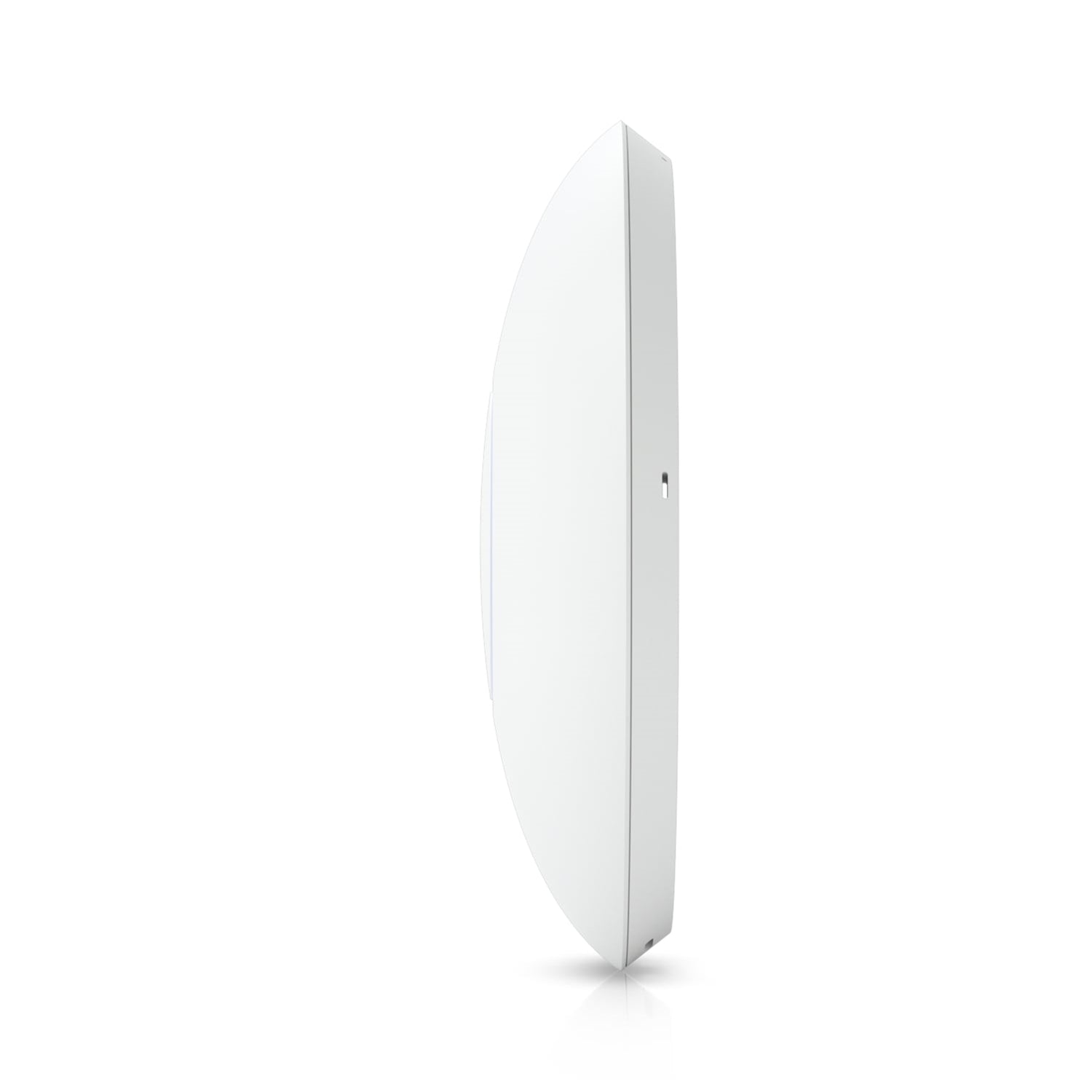

Ubiquiti UniFi U7 Pro Max WiFi 7 Access Point
The Ubiquiti UniFi U7 Pro Max is a high-performance WiFi 7 (802.11be) access point designed to deliver exceptional speed, capacity, and efficiency in demanding, high-density environments. With tri-band operation, 6 GHz support, and up to 15 Gbps aggregate throughput, it provides reliable, high-speed connectivity for enterprise, campus, and public venue deployments.
Key Features
-
WiFi 7 with 6 GHz support
Supports 802.11a/b/g/n/ac/ax/be for next-generation wireless performance. -
Tri-band operation with up to 15 Gbps aggregate throughput
-
8 spatial streams for high-capacity, high-efficiency wireless
-
Real-time spectral analysis
Enhances channel selection and optimizes performance. -
Wide coverage
Up to 160 m² (1,750 ft²). -
High client capacity
Supports 500+ connected devices. -
OFDMA and MU-MIMO
Efficiently manages traffic in high-density environments. -
Power over Ethernet
Powered using PoE+ with a 2.5 GbE uplink. -
Advanced security protocols
Supports WPA-PSK and WPA-Enterprise (WPA/WPA2/WPA3/PPSK). -
Sleek, installation-friendly design
Wall or ceiling mounting with included hardware.
Technical Specifications
Mechanical
| Parameter | Value |
|---|---|
| Dimensions | 206 x 46 mm (8.1 x 1.8") |
| Weight | 680 g (1.5 lb) |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
Hardware
| Parameter | Value |
|---|---|

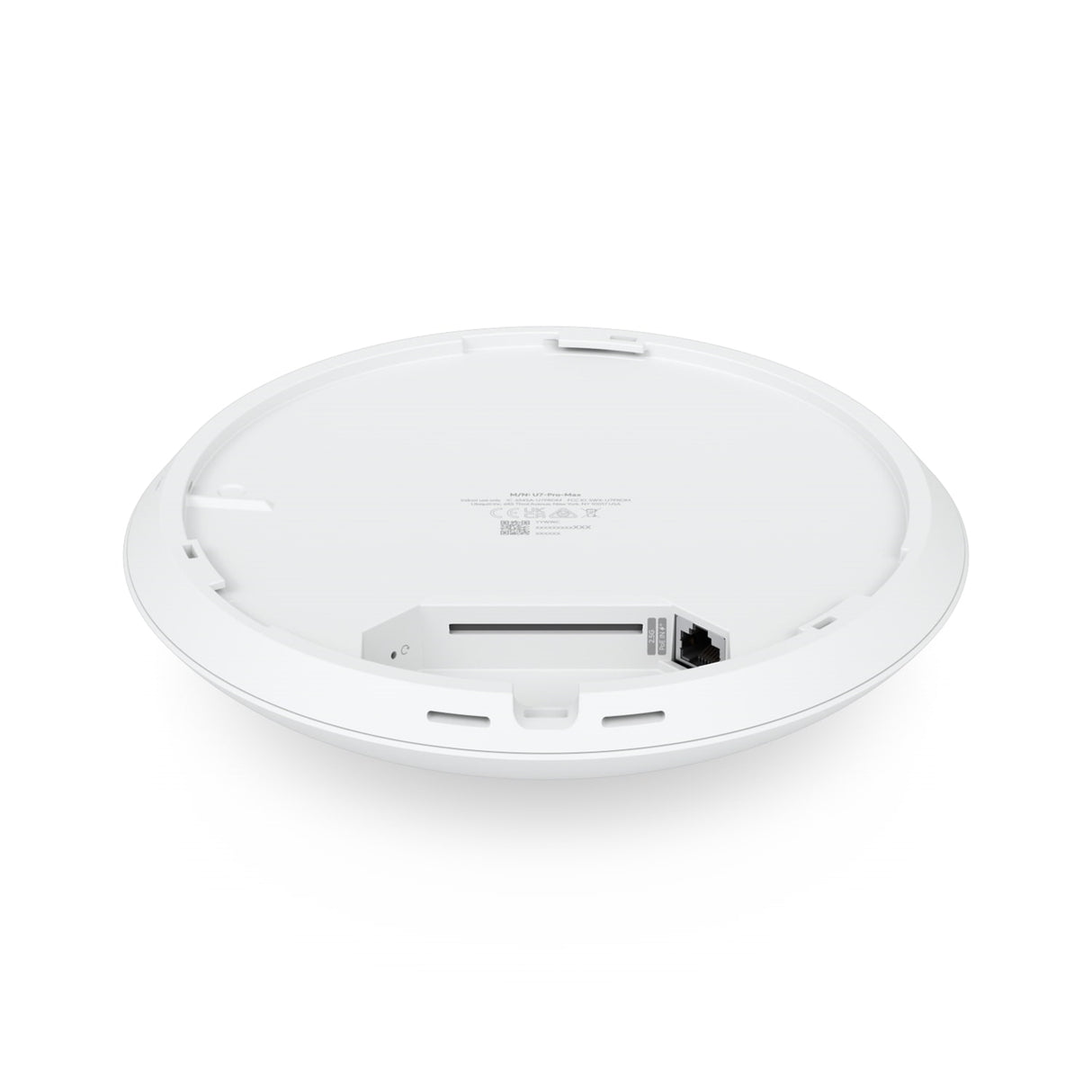

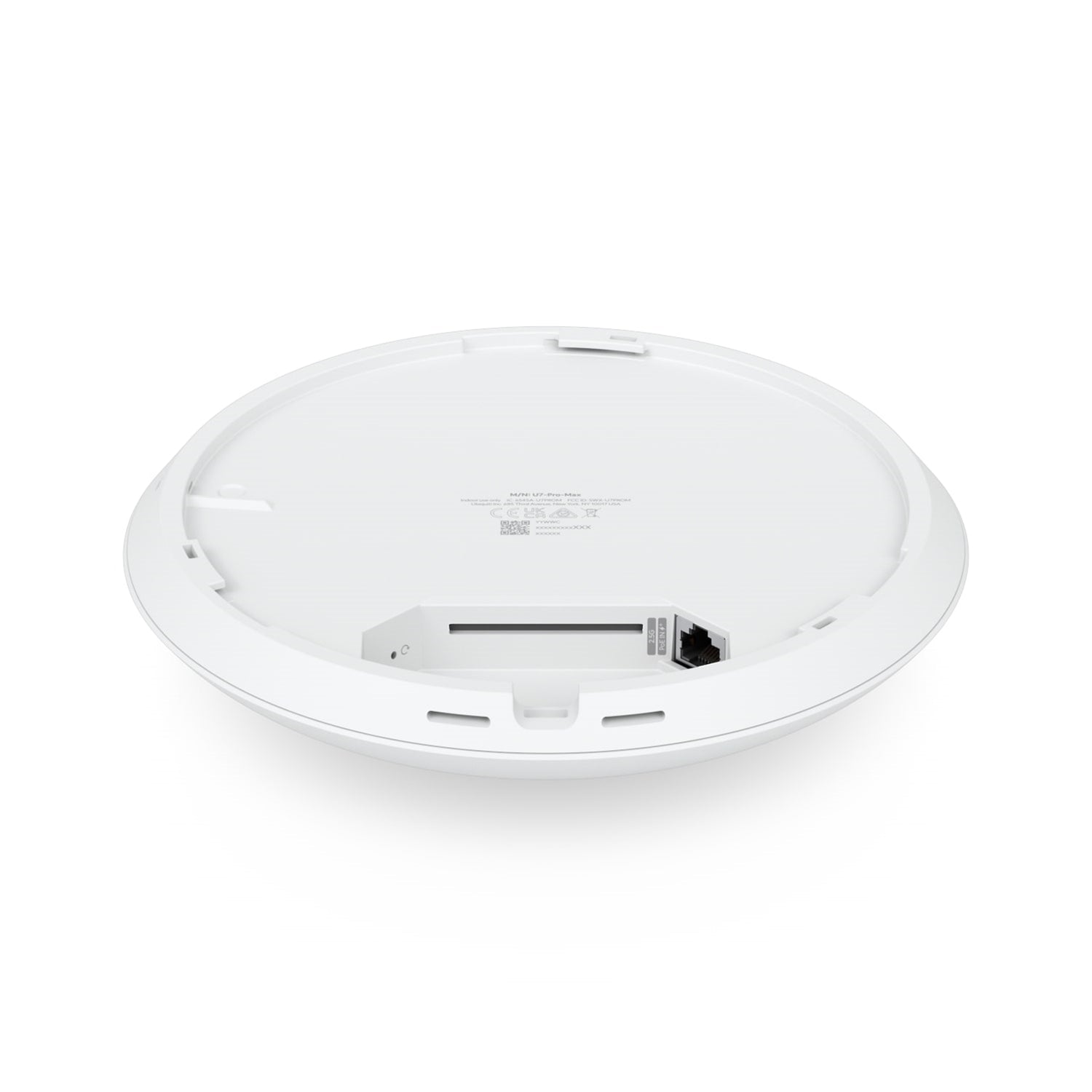

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Management Interface | Ethernet |
| Power Method | PoE+ |
| Power Supply | UniFi PoE switch |
| Supported Voltage | 44—57V DC |
| Max. Power Consumption | 22W |
Radio & Performance
| Parameter | Value |
|---|---|
| Max. TX Power | 2.4 GHz – 23 dBm; 5 GHz – 29 dBm; 6 GHz – 23 dBm |
| MIMO | 2.4 GHz – 2 x 2; 5 GHz – 4 x 4; 6 GHz – 2 x 2 |
| Throughput Rate | 2.4 GHz – 688 Mbps; 5 GHz – 8648 Mbps; 6 GHz – 5765 Mbps |
| Antenna Gain | 2.4 GHz – 4 dBi; 5 GHz – 6 dBi; 6 GHz – 5.9 dBi |
| Concurrent Clients | 500+ |
LEDs & Controls
| Parameter | Value |
|---|---|
| LEDs | White/Blue |
| Button | Factory reset |
Mounting & Environment
| Parameter | Value |
|---|---|
| Mounting | Wall, ceiling (included) |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Software & Networking
| Parameter | Value |
|---|---|
| WiFi Standards | 802.11a/b/g/n/ac/ax/be |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic | Isolation supported |
Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (WiFi 6/6E): 7.3 Mbps to 4.8 Gbps (MCS0–MCS11 NSS1/2/3/4, HE 20/40/80/160)
- 802.11be (WiFi 7):
- 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0–MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
- 6 GHz: 7.3 Mbps to 5.7 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
| Parameter | Value |
|---|---|
| UniFi Network | Version 8.2.93 and later |
Box Contents
- 1 x U7 Pro Max access point
- 1 x Mounting template level
- 1 x Wall mount plate
- 1 x Multi-purpose mounting plate
- All mounting hardware
