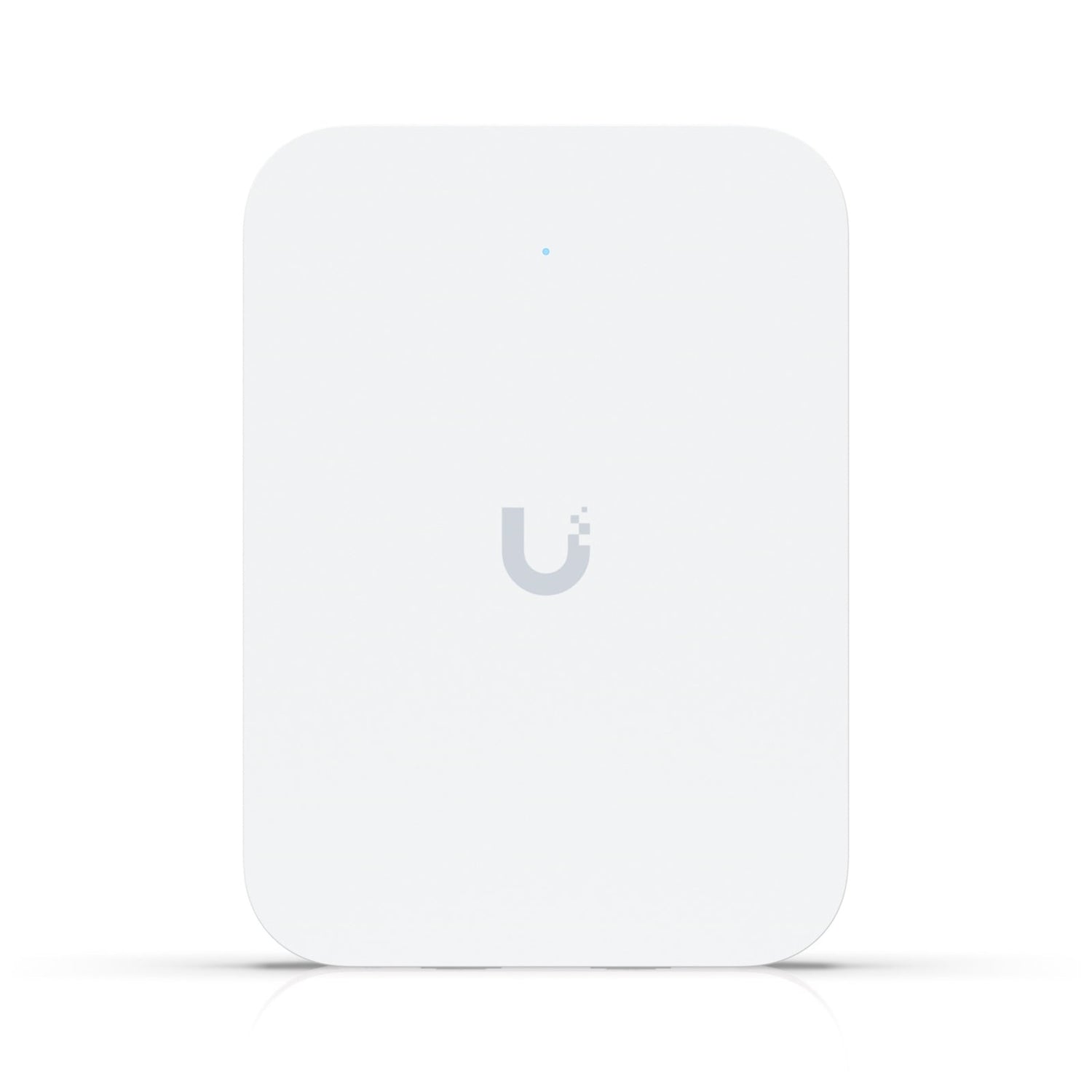

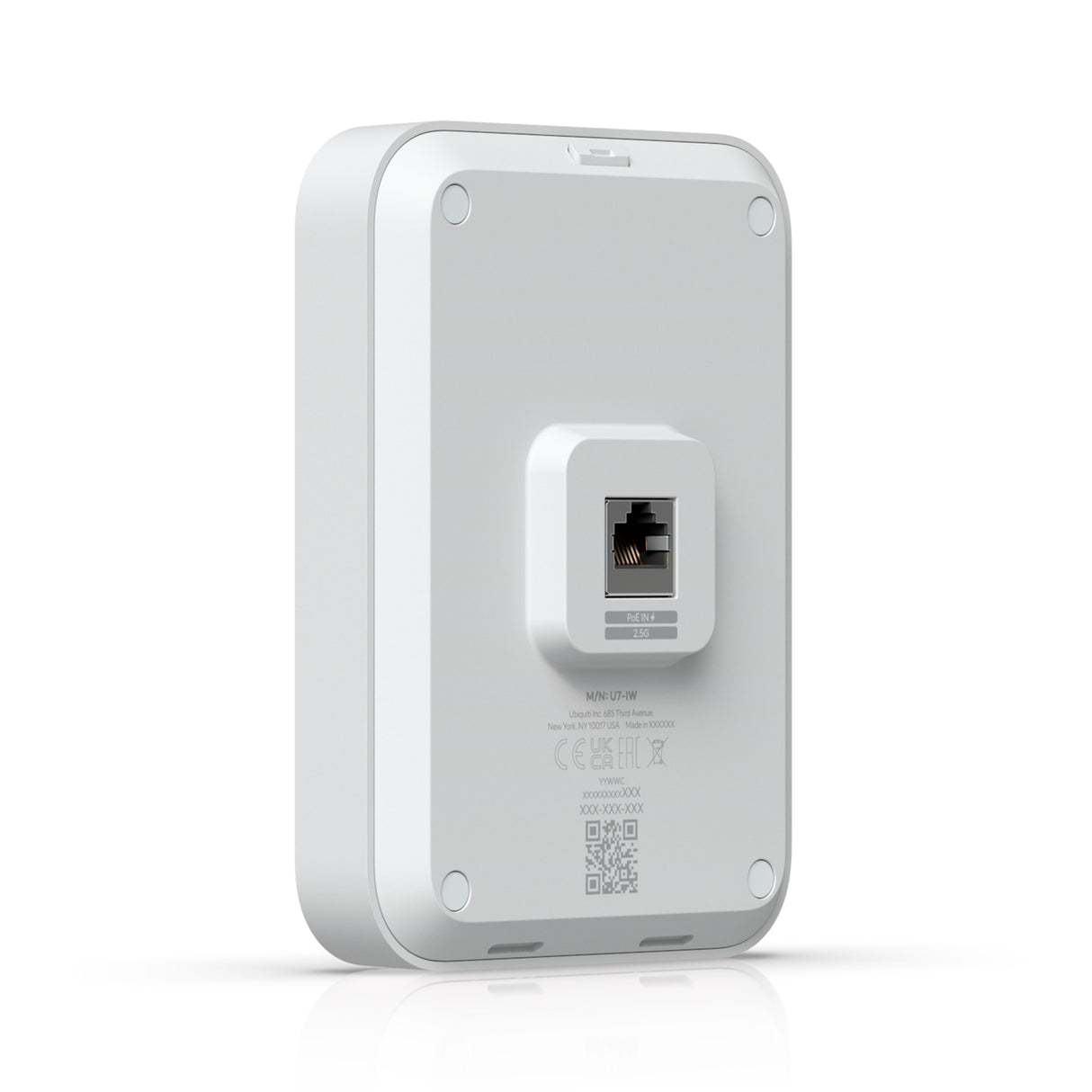

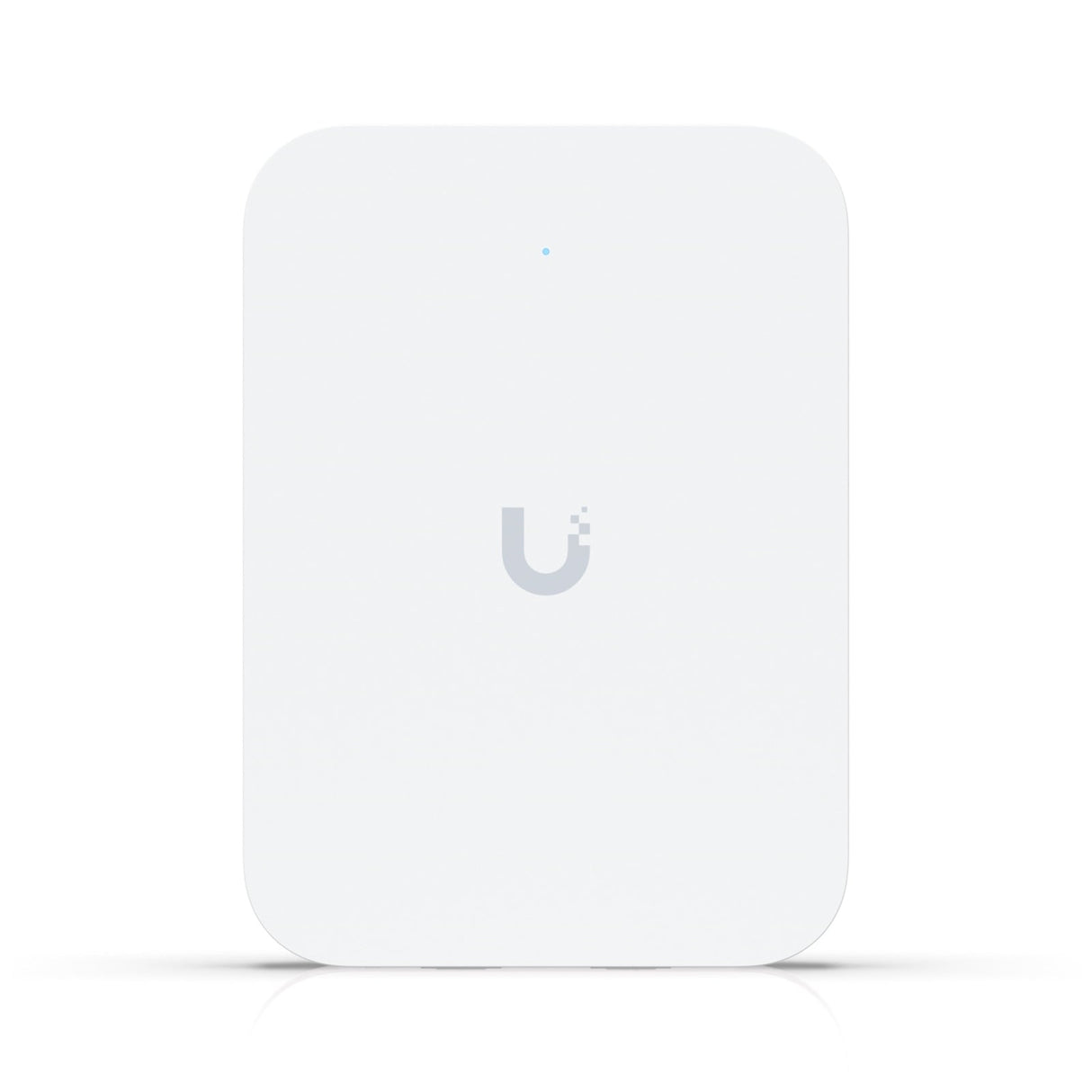

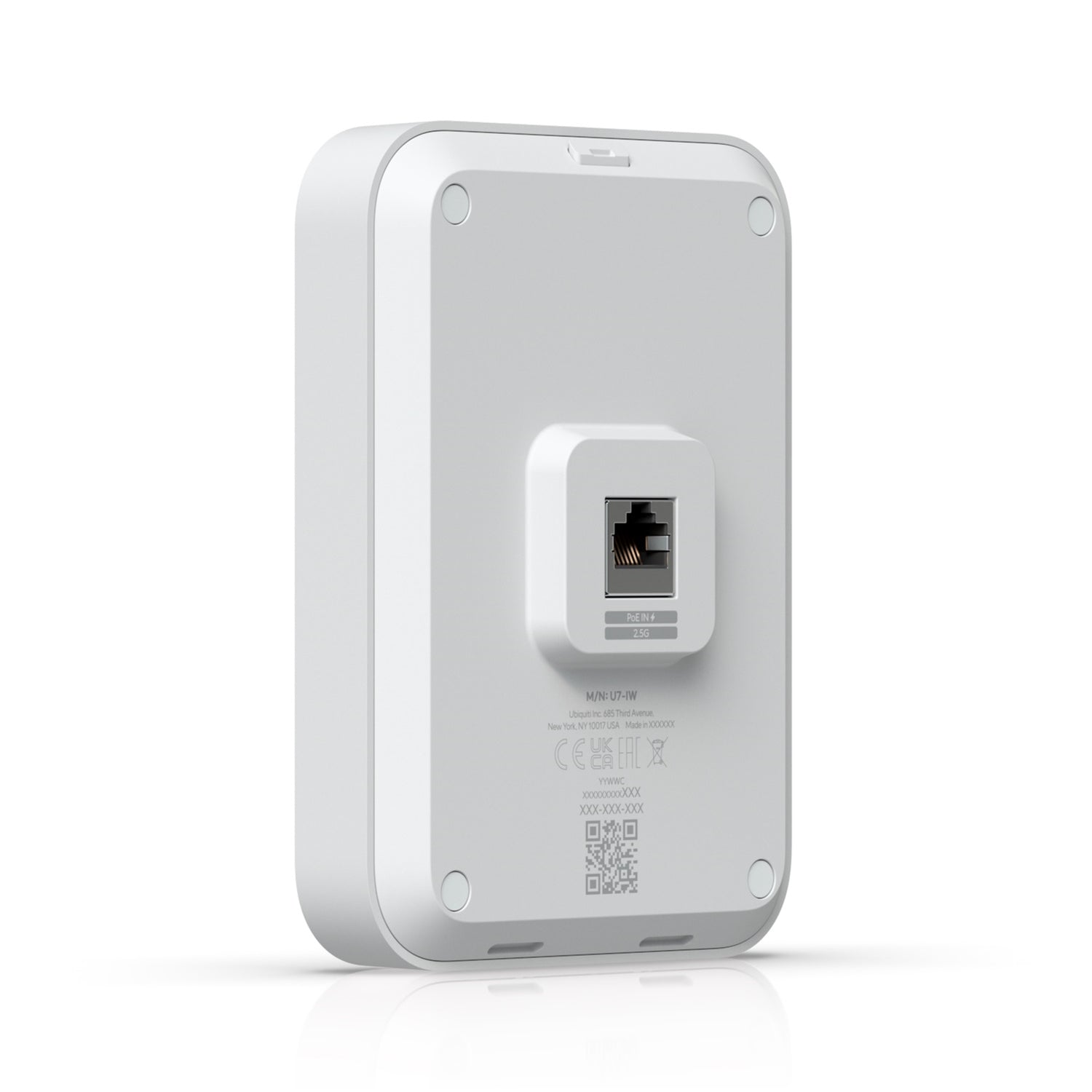

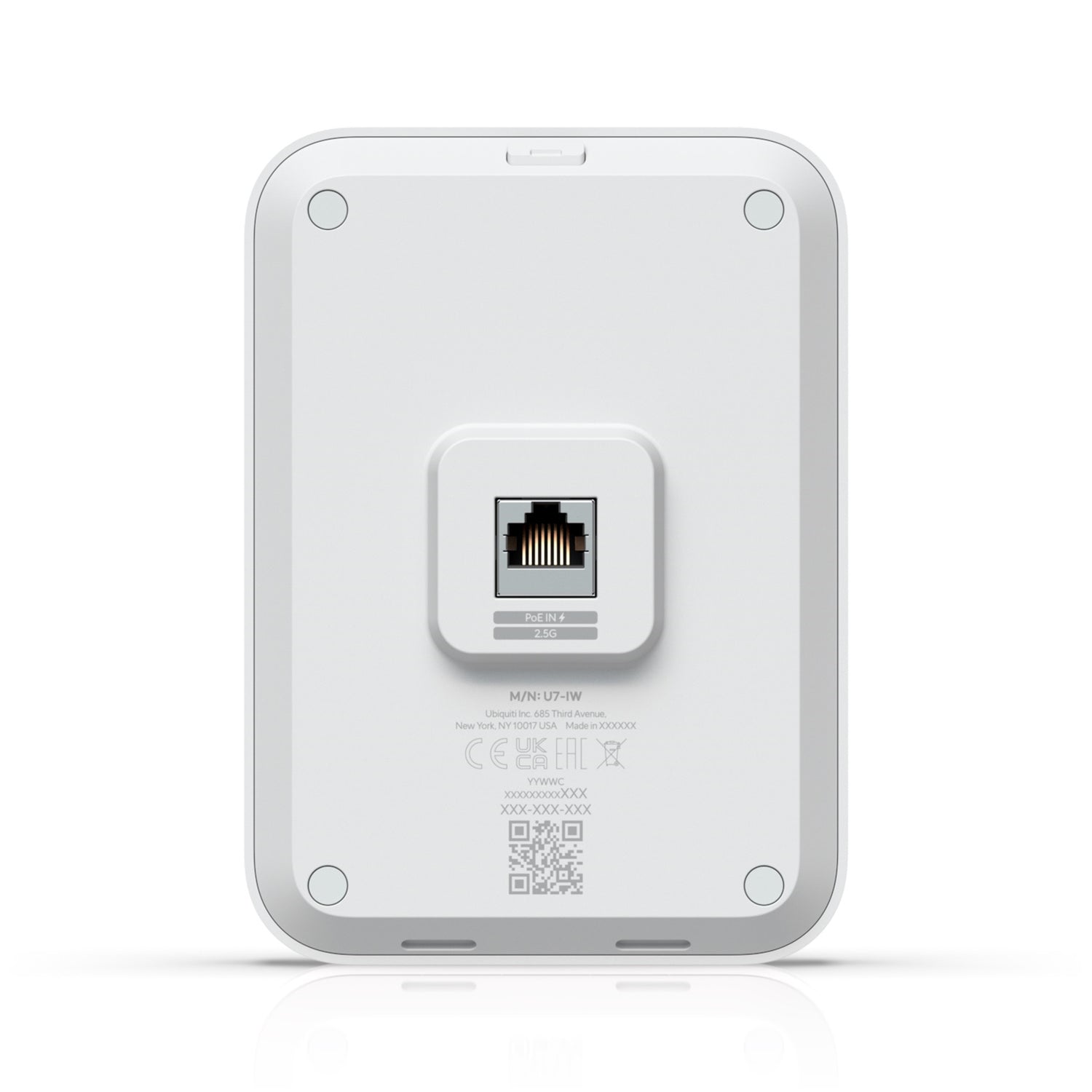

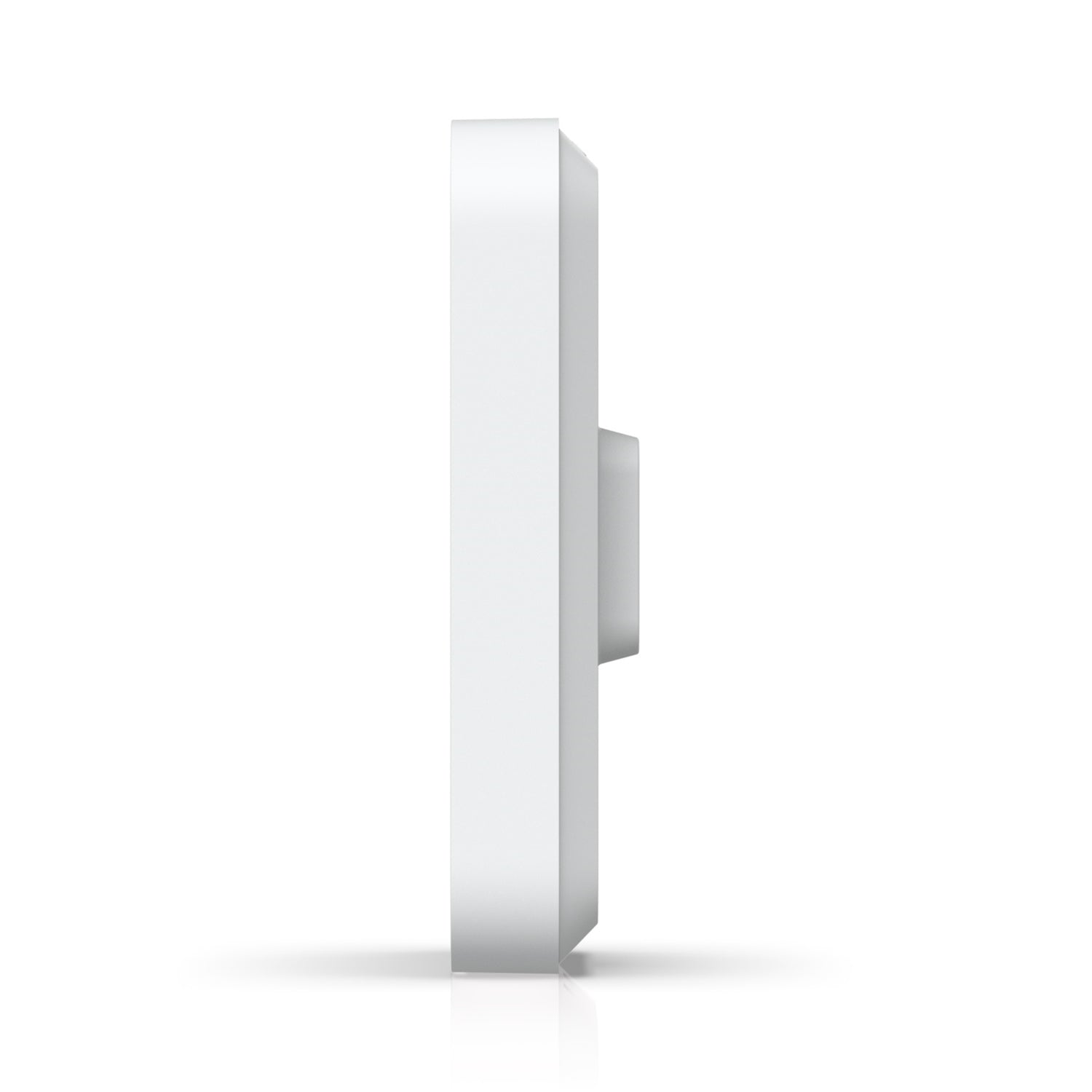

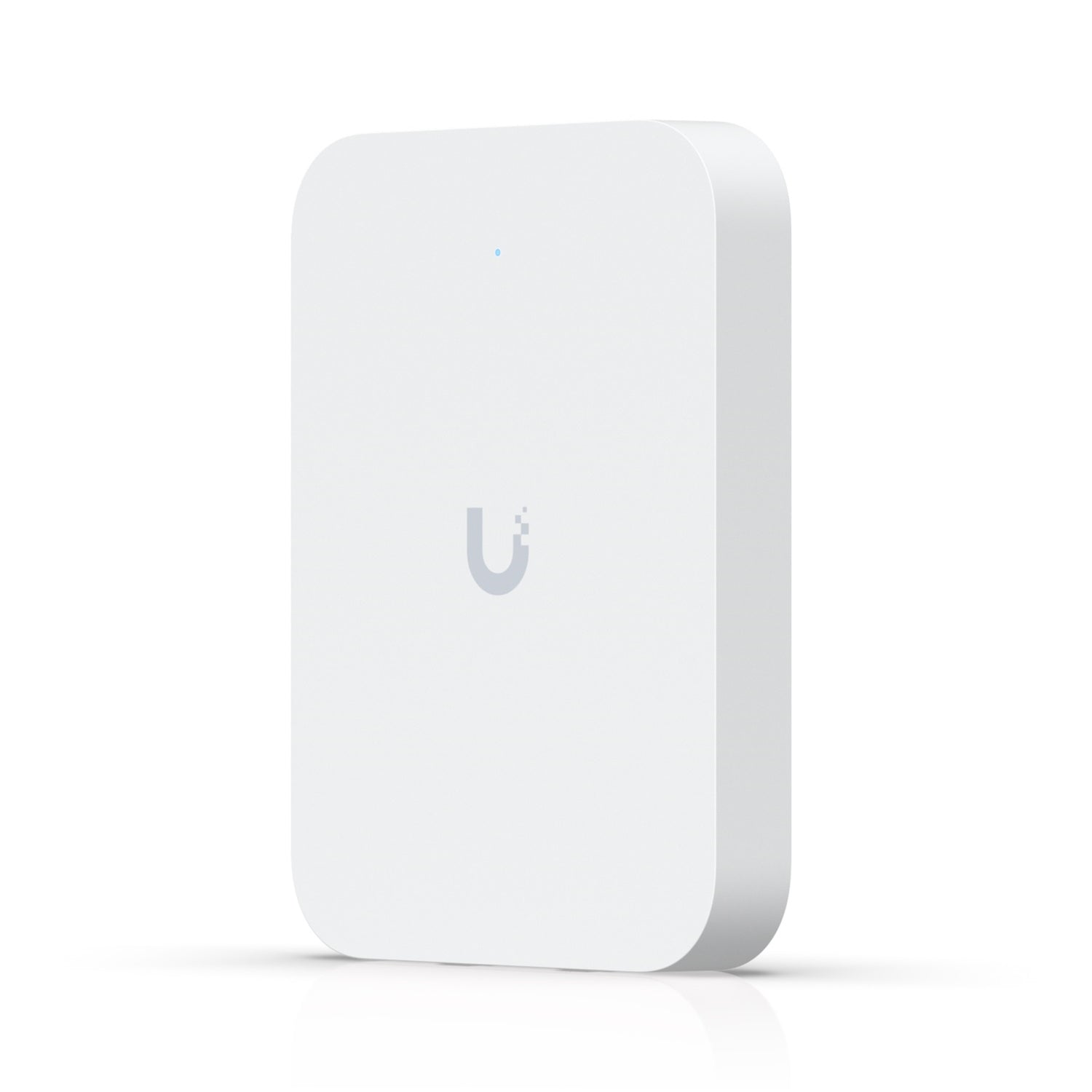

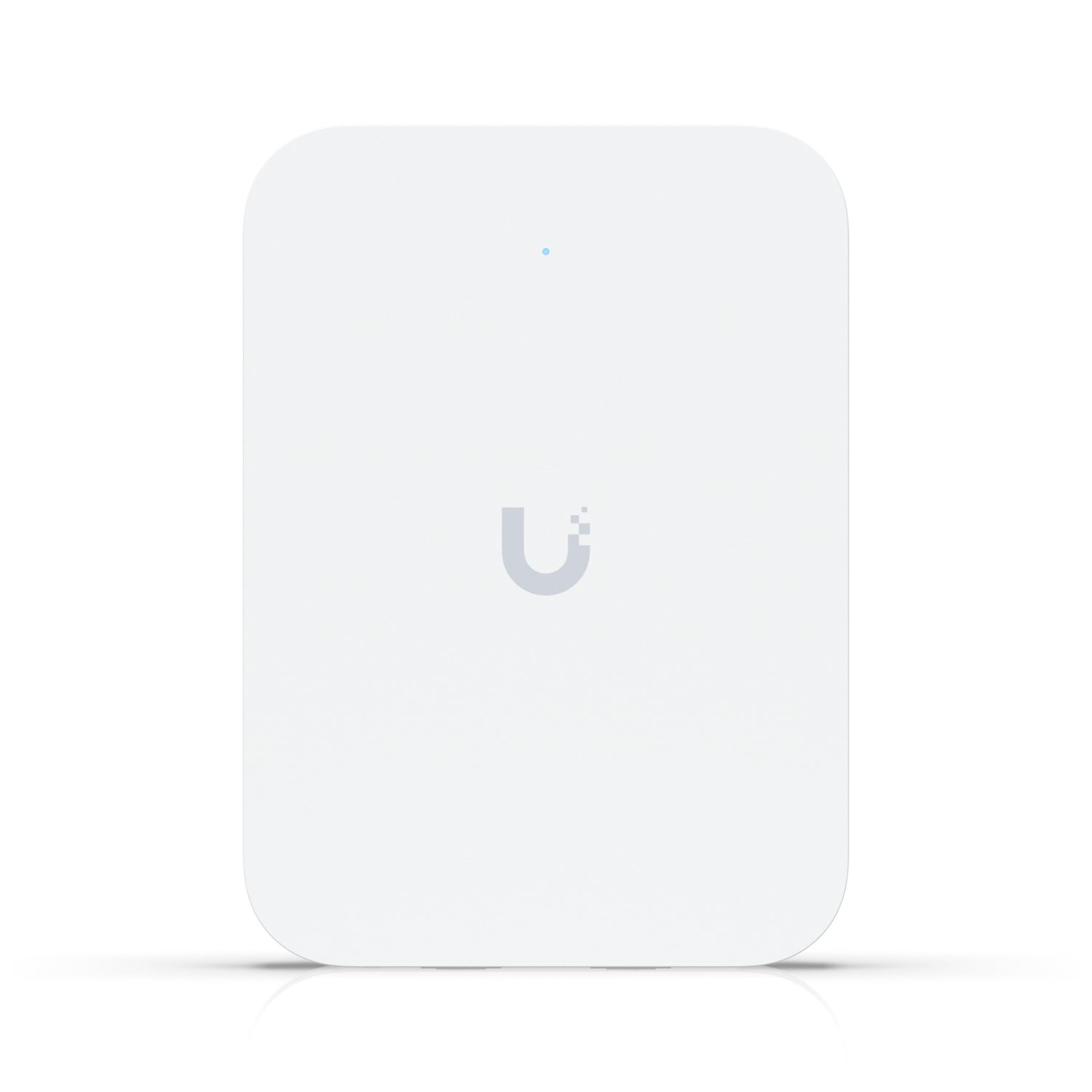

Ubiquiti U7-IW UniFi 7 In Wall WiFi 7 Access Point

Wall-Mounted WiFi 7 Access Point with Integrated 2.5 GbE PoE Switch

Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

Note: PoE+ input is required for single-port PoE output.

Key Features

• WiFi 7 access point with 4 spatial streams
• Wall-mounted design for hospitality environments

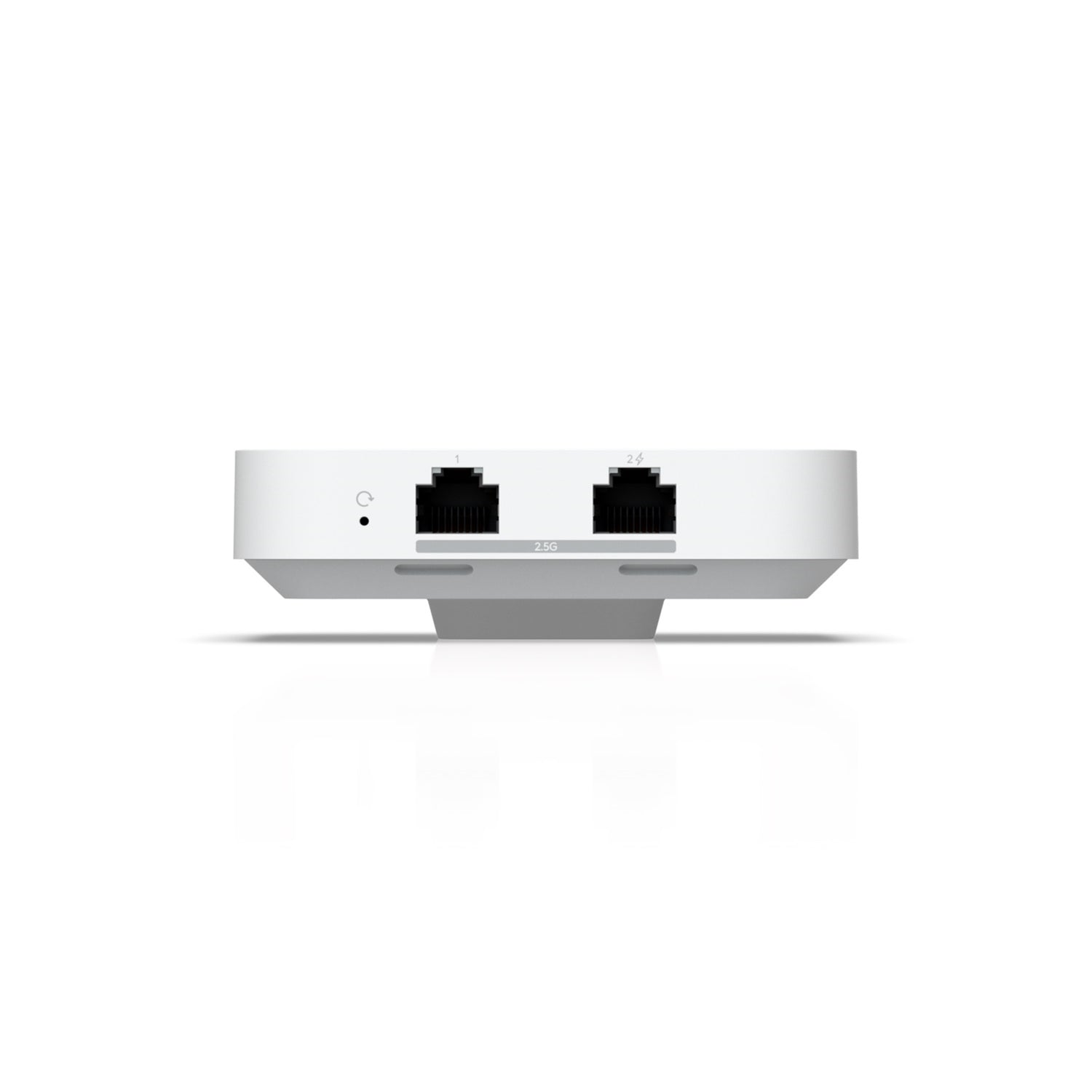

• Integrated 2.5 GbE PoE switch
• Wireless meshing support
• Advanced roaming, steering, and radio management
• Captive hotspot portal and PPSK support
• Passpoint (Hotspot 2.0) ready
• PoE+ input required for PoE output

Wireless Performance

• WiFi Standard: WiFi 7
• Spatial Streams: 4
• Coverage Area: 115 m² (1,250 ft²)
• Max. Client Count: 200+
• Max. BSSIDs: 8 per radio

MIMO

• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Maximum Data Rates

• 5 GHz: 4.3 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)

Antenna Gain

• 5 GHz: 8 dBi
• 2.4 GHz: 4 dBi

Max. TX Power

• 5 GHz: 24 dBm
• 2.4 GHz: 23 dBm

Supported Data Rates

• 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

Advanced WiFi Features

• Wireless meshing
• Band steering
• 802.11v BSS transition management
• 802.11r fast roaming
• 802.11k Radio Resource Management (RRM)
• Advanced radio management

Security & Access Control

• Passpoint (Hotspot 2.0)
• Captive hotspot portal
• Private Pre-Shared Key (PPSK)
• WiFi speed limiting
• Client device isolation
• WiFi schedules
• RADIUS over TLS (RadSec)
• Dynamic RADIUS-assigned VLAN

Hardware & Power

This wall-mounted WiFi 7 access point combines high-performance wireless networking with an integrated 2.5 GbE PoE switch, making it well-suited to demanding hospitality deployments.
