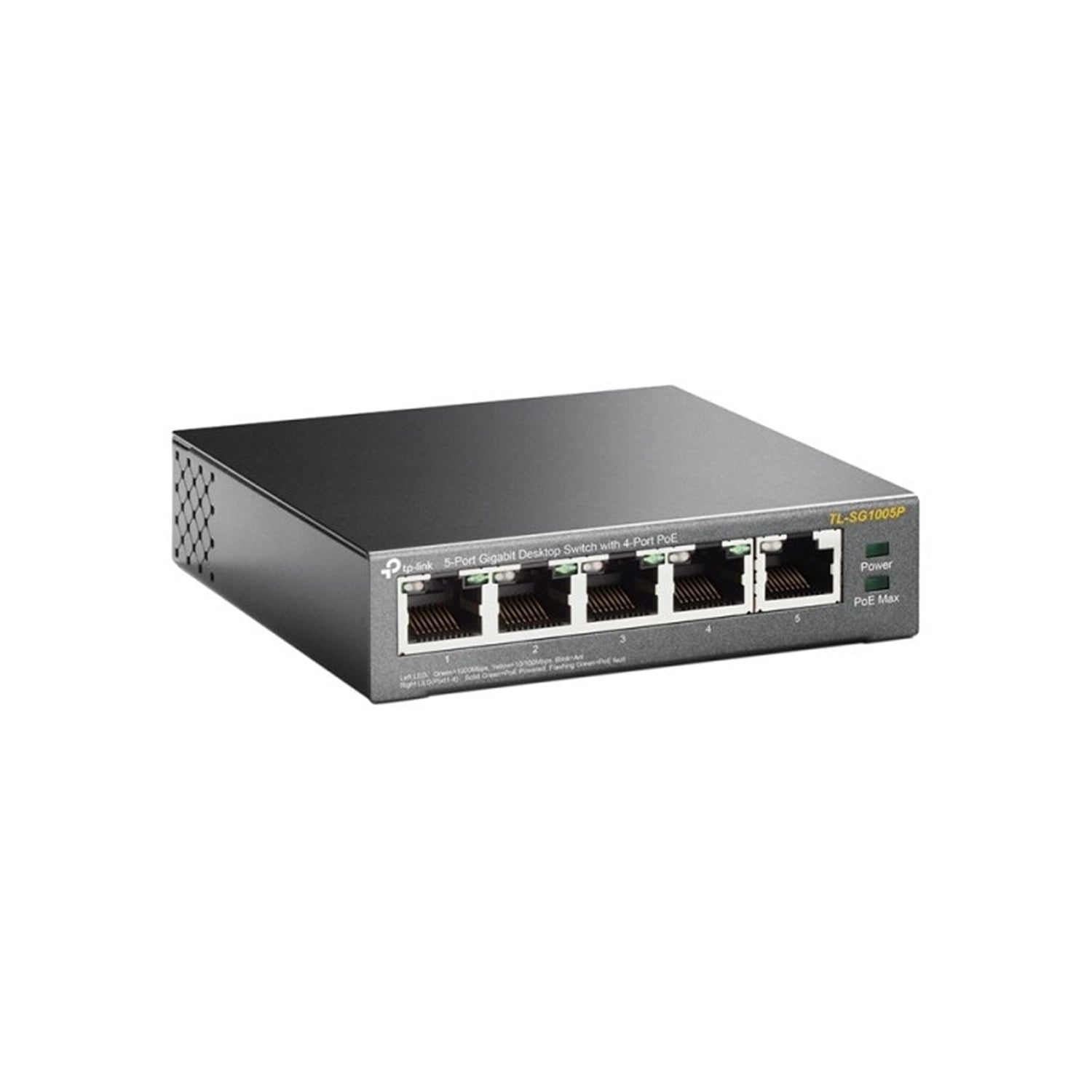

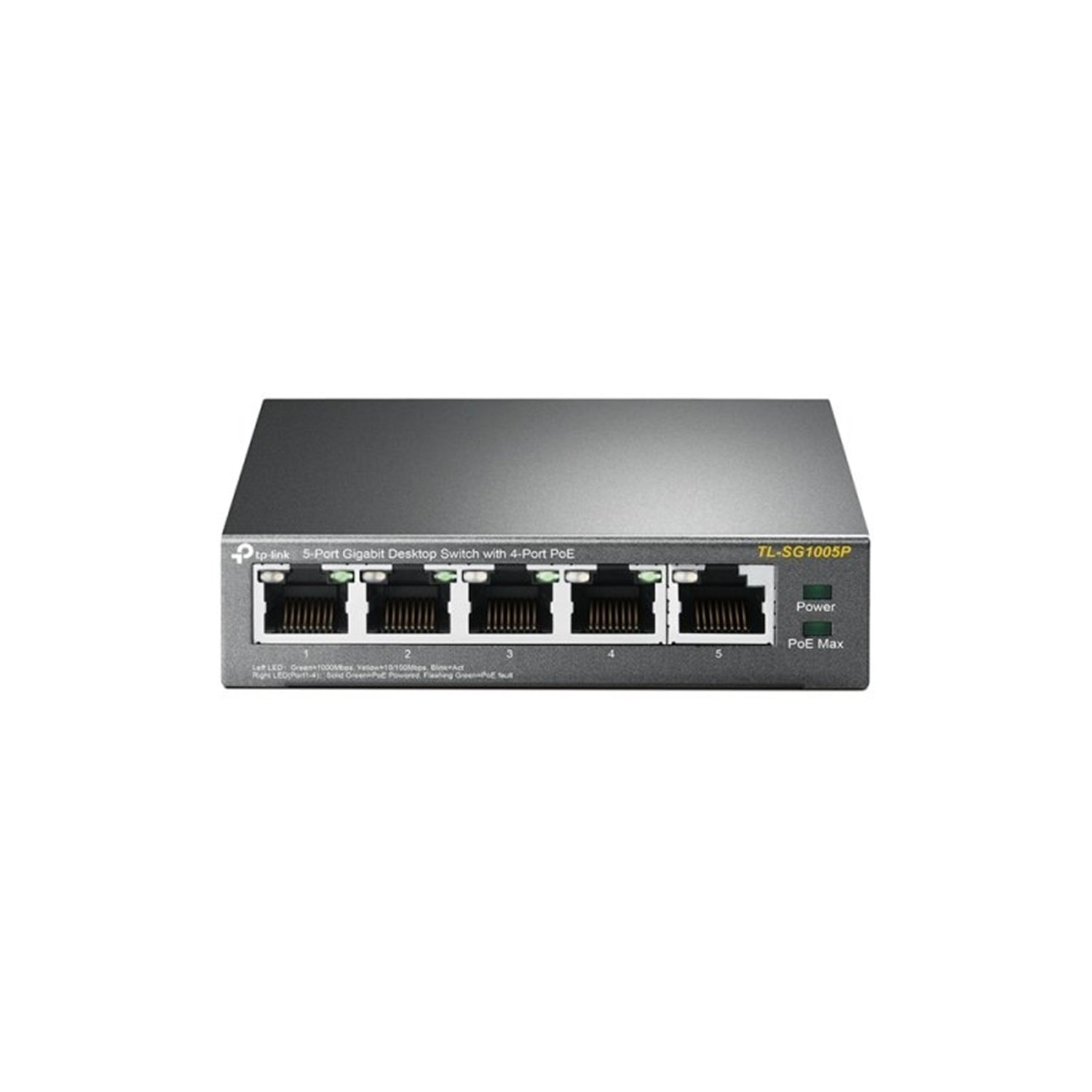

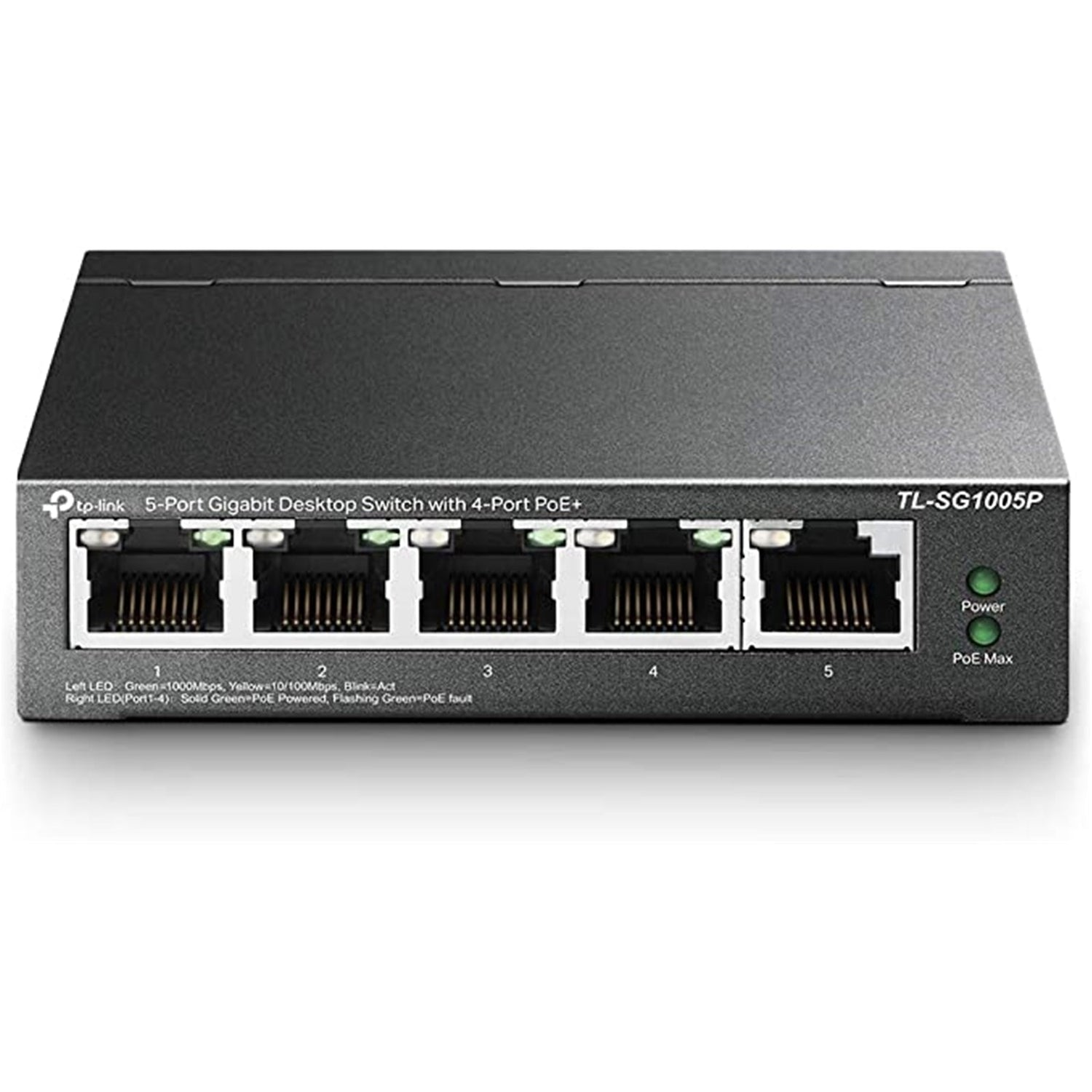

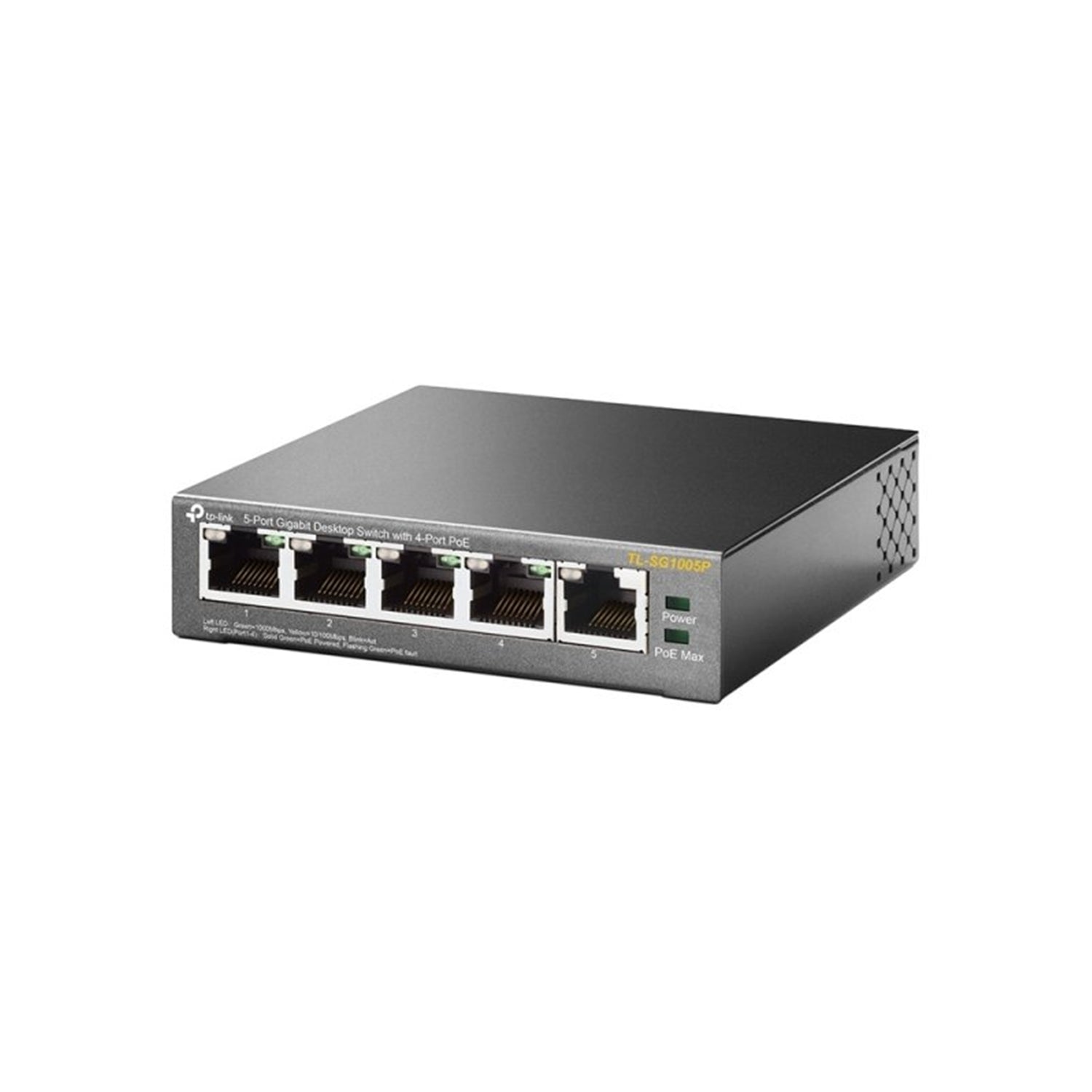

TP-Link TL-SG1005P 5-Port Metal Gigabit Desktop PoE Switch with 4-Port PoE+ (65W)
$73.00
Professional High‑Power 5‑Port Gigabit PoE+ Switch (65 W)
The TL‑SG1005P is a professional 5‑port Gigabit desktop switch with 4 PoE+ ports, delivering high‑power performance in a compact, plug‑and‑play design. Ideal for numerous applications, it provides reliable power and data for IP cameras, access points, IP phones, computers, printers, and more.
High‑Power 4‑Port PoE+ (65 W Budget)
- 4 x PoE+ ports with up to 30 W per port
- Total PoE power budget: 65 W for 4 PoE ports
- 802.3af/at PoE+ compliant, supporting a wide range of PoE devices
- Suitable for applications such as surveillance in offices, dormitories, and small businesses
- Fully compatible with:
- IP cameras
- Access points
- IP phones
- Computers
- Printers
- Other IEEE 802.3af/at compliant PDs
Plug and Play Installation
- No configuration required
- Simple plug and play setup
- Automatically detects and supplies required power to connected PoE devices
Intelligent Power Management
- 65 W total PoE power management
- When total consumption exceeds 65 W, power to lower‑priority ports is cut to protect the system
- Ensures high‑priority ports remain powered
- Protects both PoE and non‑PoE devices from damage
- Automatically adjusts power delivery based on device needs
Advanced Network Performance
QoS for Smooth, Latency‑Sensitive Traffic
- Supports 802.1p/DSCP QoS
- Administrators can prioritize traffic to keep voice and video applications clear and lag‑free
IGMP Snooping for Optimized IPTV
- IGMP Snooping optimizes multimedia traffic
- Enhances network performance especially for IPTV and streaming applications
Reliable Switching Architecture
- Store‑and‑forward switching method
- MAC address auto‑learning and auto‑aging
- IEEE 802.3x flow control for stable data transmission
Durable Metal Housing
- High‑quality metal casing protects internal components
- Designed for a long product life
- Tested for reliable, dependable switching performance
Key Features
- 5 x 10/100/1000 Mbps RJ45 ports
- 4 x PoE+ ports for data and power over a single Ethernet cable
- Supports up to 30 W PoE power per PoE port
- Supports up to 65 W total PoE power across all PoE ports
- Plug and play, no installation or configuration required
- 802.1p/DSCP QoS for smooth latency‑sensitive traffic
- Works with IEEE 802.3af/at compliant PDs
Specifications
Hardware
| Item | Details |
|---|---|
| Interfaces | 5 x 10/100/1000 Mbps RJ45 ports |
| Auto Features | Auto Negotiation, Auto MDI/MDIX |
| PoE Standard | IEEE 802.3af/at compliant |
| PoE Ports | Ports 1–4 |
| Total PoE Power Budget | 65 W |
| PoE Power per Port | Up to 30 W |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 16 KB |
| Fan Quantity | Fanless |
| External Power Supply | External power adapter (Output: 53.5 VDC / 1.31 A) |
| Dimensions (W x D x H) | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
Network Media
| Speed | Cable Type (max 100 m) |
|---|---|
| 10BASE‑T | UTP Cat 3, 4, 5; EIA/TIA‑568 100 Ω STP |
| 100BASE‑TX | UTP Cat 5, 5e; EIA/TIA‑568 100 Ω STP |
| 1000BASE‑T | UTP Cat 5, 5e, 6 or above; EIA/TIA‑568 100 Ω STP |
Power & Thermal
| Item | Details |
|---|---|
| Max Power Consumption | 4.29 W (220 V/50 Hz, no PD connected) |
| 74.24 W (220 V/50 Hz, with 65 W PD connected) | |
| Max Heat Dissipation | 14.63 BTU/h (no PD connected) |
| 253.16 BTU/h (with 65 W PD connected) |
Software Features
- Compatible with IEEE 802.3af/at compliant PDs
- MAC address auto‑learning and auto‑aging
- IEEE 802.3x flow control
- 802.1p/DSCP QoS
- IGMP Snooping
- Store‑and‑forward transfer method
Certification
- FCC
- CE
- RoHS
Package Contents
- TL‑SG1005P switch
- Power adapter
- Installation guide
Environment
| Condition | Range |
|---|---|
| Operating Temperature | 0–40 °C (32–104 °F) |
| Storage Temperature | –40–70 °C (–40–158 °F) |
| Operating Humidity | 10–90% RH, non‑condensing |
| Storage Humidity | 5–90% RH, non‑condensing |
