TP-Link TL-POE160S IEEE 802.3at 30W PoE+ Injector
$38.00
TP-Link TL-POE160S PoE+ Injector (802.3at/30W)
Reliable Power over Ethernet for Your Network Devices
The TP-Link TL-POE160S Power over Ethernet (PoE+) Injector provides a simple, cost-effective way to deliver both data and power over a single Ethernet cable. Fully compliant with IEEE 802.3af/at standards, it can supply up to 30 W to compatible powered devices, helping you extend your network to locations without existing power outlets.
Key Features
-
PoE+ up to 30 W
Complies with IEEE 802.3af/at standards and supplies up to 30 W of power to compatible devices. -
Fast Gigabit Connectivity
2 × 10/100/1000 Mbps RJ45 ports ensure high-speed data transmission. -
Reduced Infrastructure Costs
Transmits data and power simultaneously over a single Ethernet cable, minimizing the need for additional wiring. -
Intelligent Power Delivery
Automatically determines and supplies the exact power required by each connected device. -
Flexible Installation
Wall-mounting and desktop design to suit a wide range of installation scenarios. -
Easy Plug & Play Setup
No configuration required—simply connect and power your devices. -
Integrated Power Supply
Built-in power supply for clean, simple deployment.
Product Overview
The TP-Link TL-POE160S PoE+ Injector fully complies with IEEE 802.3af/at standards and works seamlessly with all IEEE 802.3af/at PoE-compliant powered devices (PDs) or PoE receiver adapters, such as TP-Link’s TL-POE10R or other equivalent products.
Use it to expand your network to areas without existing power lines or outlets, where you need to install devices such as:
- AP (Access Point)
- IP Camera
- IP Phone
Specifications
Network
| Category | Details |
|---|---|
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
Hardware Features
| Category | Details |
|---|---|
| Network Media | 10BASE-T: UTP Cat 3, 4, 5 (max 100 m); EIA/TIA-568 100 Ω STP (max 100 m) |
| 100BASE-TX: UTP Cat 5, 5e (max 100 m); EIA/TIA-568 100 Ω STP (max 100 m) | |
| 1000BASE-T: UTP Cat 5, 5e, 6 (max 100 m) | |

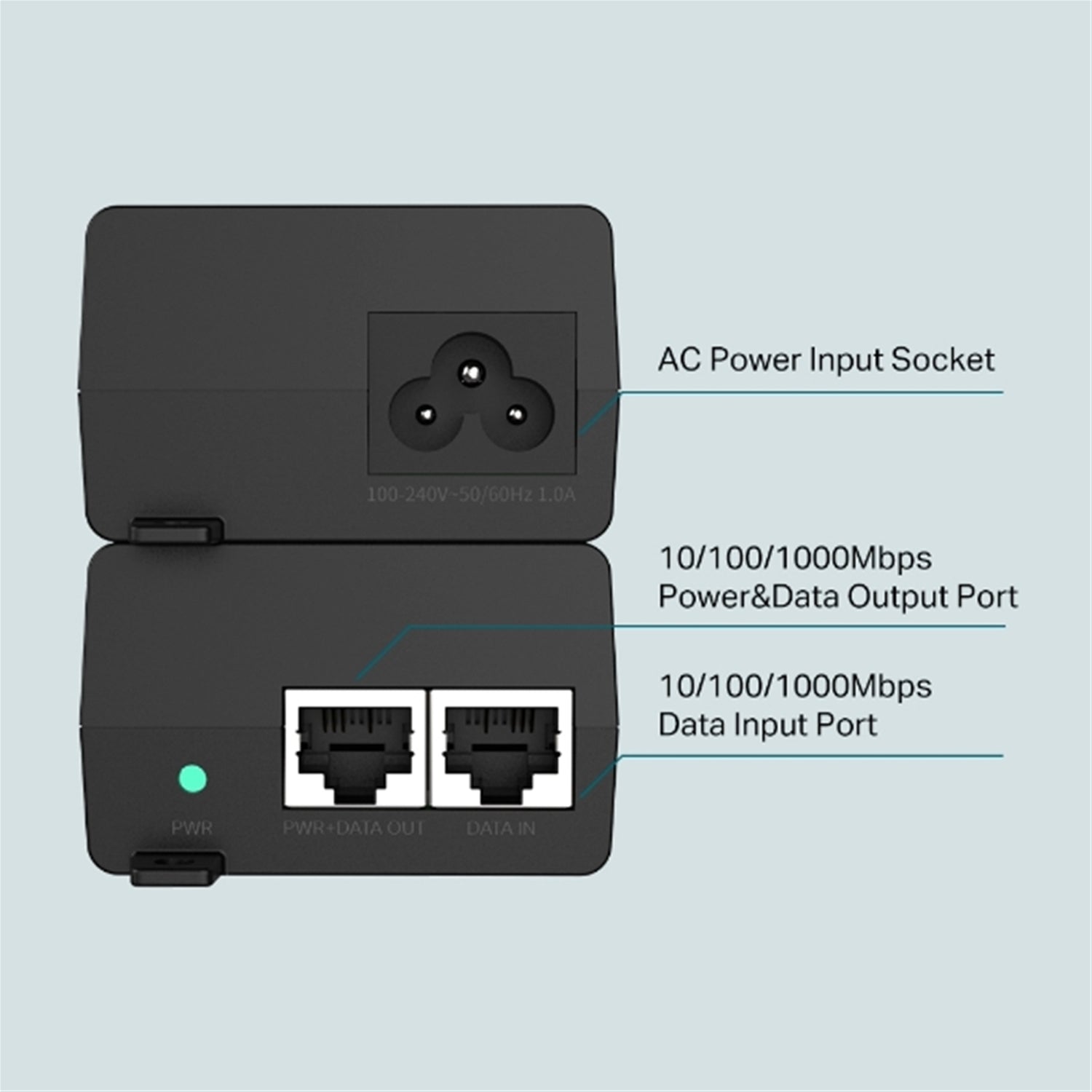

| Ports | 1 × 10/100/1000 Mbps RJ45 data-in port |
| 1 × 10/100/1000 Mbps RJ45 power+data-out port | |
| 1 × AC socket | |
| Power Consumption | Input: 100–240 V, 50/60 Hz |
| Output: Auto-determine necessary power (max. 30 W) | |
| Basic Function | Auto-Sensing Algorithm for 802.3af/at PDs |
| Auto-detect and deliver required power | |
| Wall-mounting and desktop installation supported | |
| Plug-and-Play | |
| LED Indicator | ON: Supplying power normally |
| OFF: No power supply | |
| Dimensions (W × D × H) | 4.9 × 2.3 × 1.4 in (125 × 59.4 × 36.8 mm) |
General
| Category | Details |
|---|---|
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Storage Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Humidity: 10% to 90% RH non-condensing | |
| Storage Humidity: 5% to 90% RH non-condensing |
Package Contents
- PoE+ Injector TL-POE160S
- Installation Guide
- Power Cord
- RJ45 Cable
- Wall Mounting Kits
