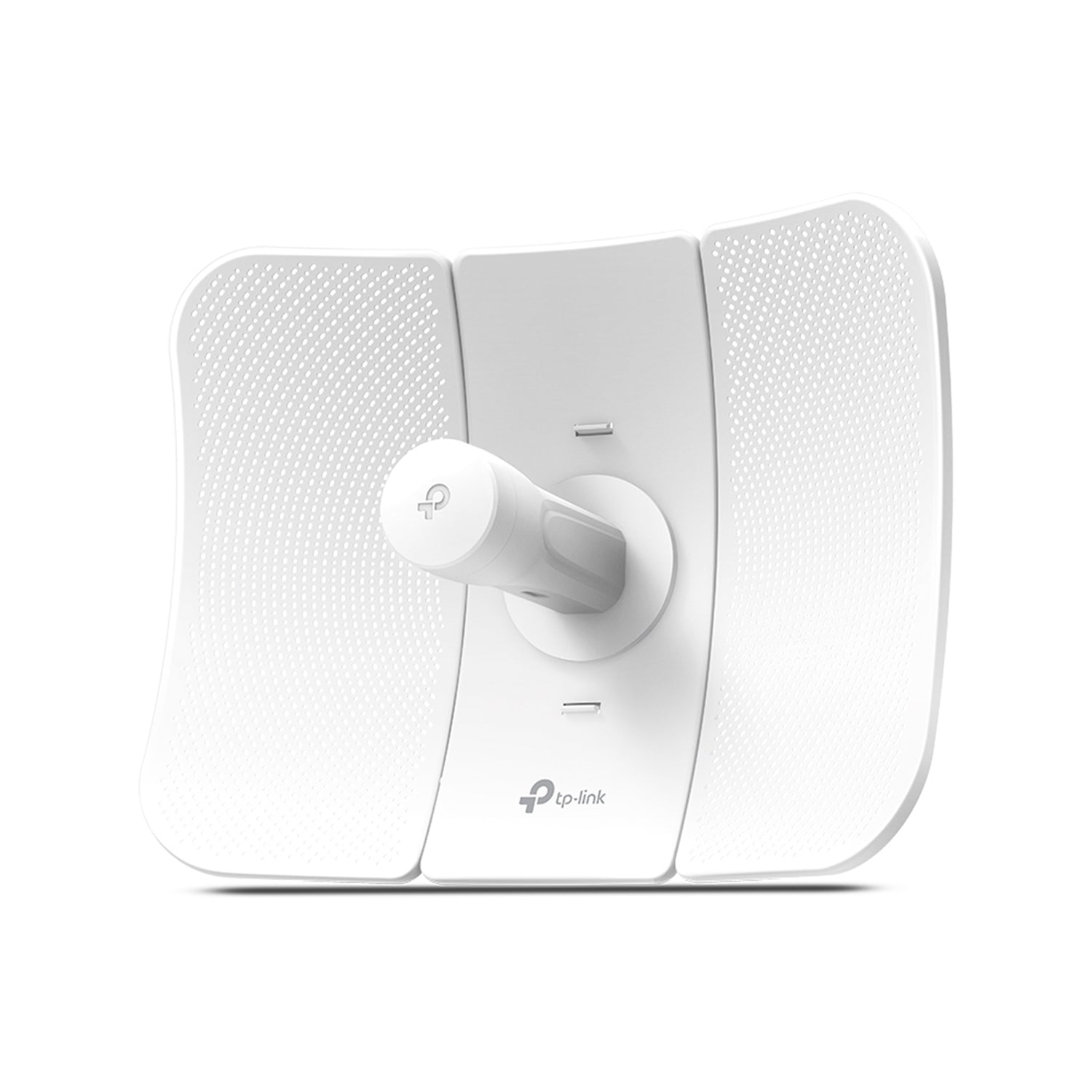

TP-Link Pharos CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE
$118.00
5 GHz 867 Mbps 23 dBi Outdoor CPE710
Blazing Wireless Speed
Experience high-speed wireless performance with support for 256 QAM and an 80 MHz bandwidth, delivering speeds of up to 867 Mbps – up to 3x faster than 802.11n Wi‑Fi.
Professional 23 dBi Directional Antenna
The CPE710 features a 23 dBi high-gain directional Cassegrain antenna with a dedicated metal reflector, providing:
- Excellent beam directivity
- Improved latency
- Enhanced noise immunity
Professional performance combined with a user-friendly design makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 a cost-effective choice for outdoor long-distance wireless networking applications.
Compact, Lightweight Packaging
Small, lightweight boxes help reduce shipping and logistics costs and support efficient retail display and handling.
Centralized Management with Pharos Control
The CPE710 includes Pharos Control centralized management software, allowing you to manage all devices in your network from a single PC. Key functions include:
- Device discovery
- Status monitoring
- Firmware upgrading
- Network maintenance
An intuitive web-based interface, PharOS, offers an alternative management method and gives professionals access to more detailed configurations.
Specifications
Hardware Features
| Feature | Details |
|---|---|
| Processor | Qualcomm 750 MHz CPU, MIPS 74Kc |
| Memory | 128 MB DDR2 RAM, 16 MB Flash |
| Interface | 1× 10/100/1000 Mbps Shielded Ethernet Port (LAN/PoE), 1× Reset Button |
| Power Supply | Passive Power over Ethernet via LAN (+4,5 pins; -7,8 pins) |
| Voltage Range | 16–27 V DC |
| Dimensions (W×D×H) | 366 × 280 × 207 mm (14.4 × 11.0 × 8.1 in) |
| Antenna Gain | 23 dBi |
| Antenna Beamwidth | 9° (Azimuth) / 7° (Elevation) |
| ESD Protection | 15 kV ESD Protection |
| Lightning Protection | 6 kV Lightning Protection |
| Enclosure Material | Outdoor PC stabilized plastic |
| Weatherproof Rating | IP65 water and dust proof design |
Wireless Features
| Feature | Details |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac |
| Wireless Speeds | Up to 867 Mbps (80 MHz, Dynamic) |
| Up to 400 Mbps (40 MHz, Dynamic) | |
| Up to 173.4 Mbps (20 MHz, Dynamic) | |
| Frequency | 5.15–5.85 GHz |
| Transmit Power | Max. 27 dBm (adjustable in 1 dBm steps) |
Software Features
Network Configuration
- WAN: Static / Dynamic / PPPoE
- LAN: Static / Dynamic / DHCP
Forwarding
- ALG
- UPnP
- Virtual Server
- Port Trigger
Security
- SPI Firewall
- Ping Forbidden
- DoS Protection
- Access Control
- Static Routing
- Bandwidth Control
- IP & MAC Binding
Wireless Configurations
- Selectable Channel Width: 20/40/80 MHz
- Auto Channel Selection
- Transmit Power Control
- Dynamic Frequency Selection (DFS)
- WDS Enable/Disable
Wireless Security
- WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging (AP Mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter
Wireless Advanced
- Beacon Interval
- RTS Threshold
- Fragmentation Threshold
- DTIM Interval
- AP Isolation
- Short GI
- Wi‑Fi Multimedia
- Long Range PtP
Management
- Discovery and Remote Management via Pharos Control application
- HTTP/HTTPS Web-based Management
- System Log
- SNMP Agent (v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
System Tools
- Indicators: Signal Strength, Noise, Transmit CCQ, CPU, Memory
- Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
- Antenna Alignment
System-Level Optimizations
- Optimized IGMP Snooping / Proxy for multicast applications
PoE Adapter Features
| Feature | Details |
|---|---|
| Dimensions (W×D×H) | 85.8 × 43.9 × 29.7 mm |
| Interfaces | 1× AC Jack with Earth Ground |
| 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) | |
| 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) | |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100–240 VAC, 50/60 Hz |
| Output | 24 VDC, 0.6 A Max (+4,5 pins; -7,8 pins, up to 60 m PoE) |
| Efficiency | >84.29% |
| Certifications | CE, FCC, UL, IC, GS, PSB, C-tick, SAA, S-Mark, KC-mark |
Others
| Item | Details |
|---|---|
| Certification | CE, FCC, RoHS, IP65, IC |
| Package Contents | Outdoor Wireless CPE |
| 24V 0.5A Passive PoE Adapter | |
| Pole Mounting Kits | |
| AC Power Cord | |
| Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 10, 8, 7, MAC OS, NetWare, UNIX, or Linux |
| Browser Note | Recommended browsers: Google Chrome, Safari, Firefox. IE browsers are not recommended. |
