TP-Link Omada EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
$251.00
BE9300 Ceiling Mount Tri-Band Wi‑Fi 7 Access Point
The BE9300 Ceiling Mount Tri-Band Wi‑Fi 7 Access Point delivers high-speed wireless performance with robust management and security features, ideal for modern, high-density networks.
Key Features
- BE9300 Tri-Band Wi‑Fi 7
- 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
-
Designed to eliminate buffering issues and support demanding applications.
-
1× 2.5G Ethernet Port
-
Unlocks the full potential of Wi‑Fi 7 throughput.
-
Clear 6 GHz Band
-
Provides cleaner and wider band resources for more reliable connections.
-
320 MHz Bandwidth
-
Up to 320 MHz bandwidth for more simultaneous transmissions at the fastest possible speeds.
-
Advanced Functions
- Centralized management
- Mesh
- AI roaming
Firmware update may be required.
Hardware Specifications
| Category | Details |
|---|---|
| Interface | 1 × 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Max. Power Consumption | 24.05 W (PoE); 20.92 W (DC) |
| Dimensions (W × D × H) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antennas | 2.4 GHz: 2 × 3.0 dBi; 5 GHz: 2 × 3.0 dBi; 6 GHz: 2 × 3.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 |

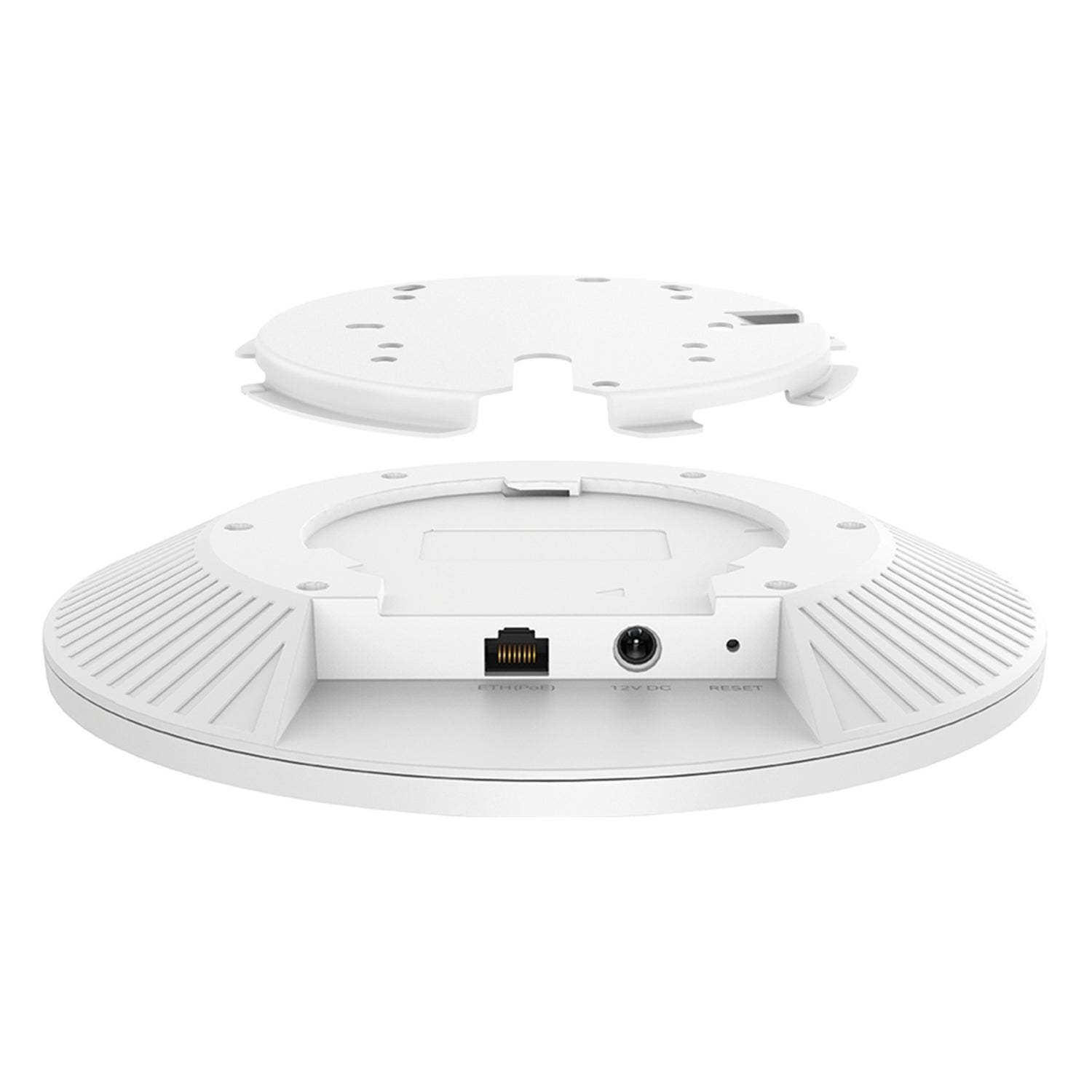

| Mounting | Ceiling / Wall mounting (kits included) |
Wireless Features
| Category | Details |
|---|---|
| Coverage | 140 m² (1500 ft²) |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency Bands | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz) |
| Multiple SSIDs | 24 (8 on each band) |
| Transmission Power | < 20 dBm (2.4 GHz, EIRP) |
| < 23 dBm (5 GHz, band 1 & band 2, EIRP) | |
| < 28 dBm (5 GHz, band 3, EIRP) | |
| < 23 dBm (6 GHz, EIRP) |
Wireless Functions
- MLO
- 4K-QAM
- MU-MIMO
- HE320
- Mesh
- BSS Coloring
- OFDMA
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Wireless Schedule
- Reboot Schedule
- QoS (WMM)
- Rate Limit
- Static IP/Dynamic IP
- RADIUS Accounting
- MAC Authentication
Wireless Security
- Captive Portal Authentication
- Access Control
- Maximum number of MAC Filter: 4,000
- Wireless isolation between clients
- VLAN
- Rogue AP detection
- WPA-Personal/Enterprise
- WPA2-Personal/Enterprise
- WPA3-Personal/Enterprise
Management Features
- Omada App: Yes
- Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access: Yes (requires OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
- Additional Management:
- Email alerts
- LED ON/OFF control
- Management MAC access control
- SNMP v1, v2c, v3
- Local/Remote Syslog
- Web-based management
Other Information
Certification
- CE
- FCC
- RoHS
- IC
Package Contents
- EAP773
- Installation Guide
- Ceiling/Wall Mounting Kits
Note: Power adapter is NOT included.
Environmental
| Condition | Range |
|---|---|
| Operating Temperature | 0 °C–40 °C (32 °F–104 °F) |
| Storage Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
