TP-Link Omada DR3650v-4G AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
$632.00
Omada AX3000 Wi‑Fi 6 Gigabit Desktop DSL Gateway
Status: Coming Soon
Key Features
- AX3000 Wi‑Fi 6 Speed
- 5 GHz: 2402 Mbps
-
2.4 GHz: 574 Mbps
-
High‑Speed DSL Access
- VDSL2 35b: Supports 350 Mbps DSL access
-
Compatible with VDSL2/ADSL2+/ADSL2/ADSL
-
Flexible WAN & Load Balancing
-
Load balancing between DSL and Ethernet WAN
-
Advanced VPN Support
-
IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN
-
Centralized Cloud Management
-
Omada Cloud-Based Controller, Hardware Controller, Software Controller
-
Omada Mesh Technology
-
Versatile Interfaces
- 3 x RJ11 ports (2 x FXS, 1 x DSL)
- 5 x RJ45 Gigabit ports
-
2 x USB 3.0 ports
-
Flexible Installation

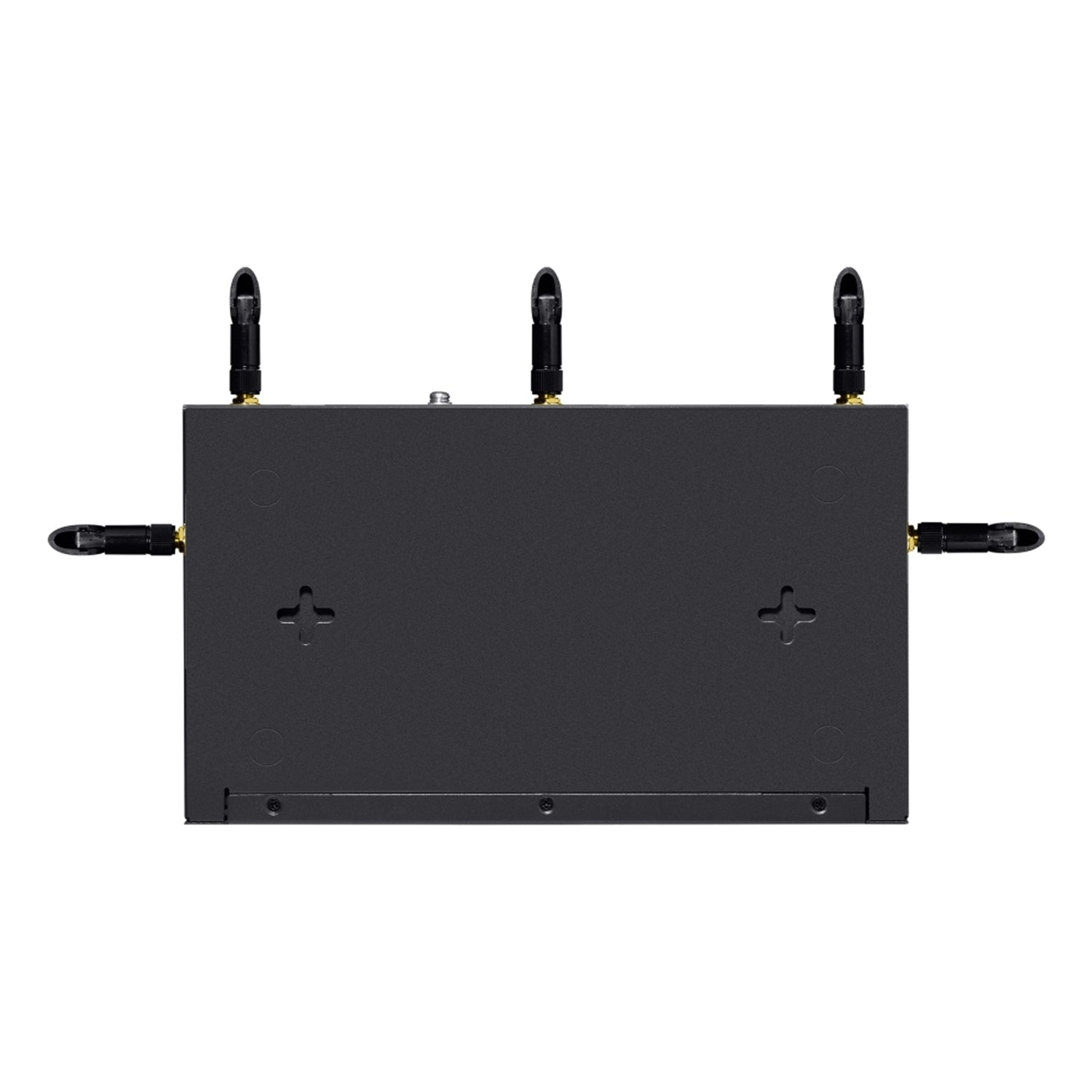

- Desktop or wall mounting
- Dimensions: 8.9 x 5.2 x 1.4 in (226 x 131.2 x 35 mm)
Hardware Specifications
| Category | Details |
|---|---|
| Interfaces | 3 x RJ11 (2 x FXS, 1 x DSL) |
| 5 x RJ45 Gigabit (1 x WAN/LAN, 4 x LAN) | |
| 2 x USB 3.0 ports | |
| Buttons | Reset button |
| Power Supply | 12 VDC / 3.3 A power adapter |
| Wi‑Fi Frequency | 2.4 GHz / 5 GHz |
| Signal Rate | 2.4 GHz: 574 Mbps |
| 5 GHz: 2402 Mbps (HE160) | |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| Dimensions (W x D x H) | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm), antenna dimensions not included |
| Antennas | 2.4 GHz: 2 × 3 dBi dual‑band detachable antennas |
| 5 GHz: 3 × 4.5 dBi dual‑band detachable antennas | |
| Mounting | Desktop / Wall‑mounting |
| Max Power Consumption | EU: 16.8 W (with USB 3.0 connected), 11.8 W (without USB 3.0) |
Performance
| Function | Throughput / Capacity |
|---|---|
| GRE (Unencrypted) | 624.2 Mbps |
| GRE (Encrypted) | 301.5 Mbps |
| WireGuard VPN | 393.5 Mbps |
| Concurrent Sessions | 150,000 |
| New Sessions per Second | 5,100 |
| NAT (Static IP) | 937.2 / 936.1 Mbps |
| NAT (DHCP) | 945.8 / 940.6 Mbps |
| NAT (PPPoE) | 942.9 / 942.9 Mbps |
| NAT (L2TP) | 837.4 / 881.5 Mbps |
| NAT (PPTP) | 803.0 / 910.5 Mbps |
| IPsec VPN (ESP‑SHA1‑AES256) | 646.9 Mbps |
| IPsec VPN (ESP‑SHA256‑AES256) | 642.8 Mbps |
| IPsec VPN (ESP‑SHA384‑AES256) | 648.9 Mbps |
| IPsec VPN (ESP‑SHA512‑AES256) | 658.4 Mbps |
| OpenVPN | 129.3 Mbps |
| L2TP (Unencrypted) | 1034.0 Mbps |
| L2TP (Encrypted) | 570.0 Mbps |
| PPTP (Unencrypted) | 1165.0 Mbps |
| PPTP (Encrypted) | 209.0 Mbps |
| SSL VPN | 126.7 Mbps |
| 66‑Byte Packet Rate | 1,453,489 pps / 1,453,488 pps |
| 1518‑Byte Packet Rate | 81,274 pps / 91,275 pps |
Wireless Features
Advanced Wireless Functions
- Seamless roaming
- Mesh (with EAP that supports Mesh)
- OFDMA
- Beamforming
- MU‑MIMO
Wireless Encryption
- WPA/WPA2/WPA3 Personal
- WPA/WPA2/WPA3 Enterprise
Guest Network
- Supported
Security Features
Access Control & Filtering
- Source/Destination IP‑based access control
- Web group filtering
- URL filtering
- Web security
- ARP inspection
- Sending GARP packets
- ARP scanning
- IP‑MAC binding
Attack Defense
- TCP/UDP/ICMP flood defense
- Block TCP scan (Stealth FIN/Xmas/Null)
- Block ping from WAN
Basic Network Functions
WAN Connection Types
- Static IP
- Dynamic IP
- PPPoE (supports MRU configuration)
- PPTP
- L2TP
- MAC clone
- Modify WAN address
DHCP
- DHCP server
- DHCPv6 PD server (only in Standalone Mode)
- DHCP options customization
- DHCP address reservation
Multi‑Network Support
- Multi‑IP interfaces
- Multi‑Net DHCP
IPv6
- Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough / Non‑Address mode
VLAN & IPTV
- 802.1Q VLAN
- IPTV: IGMP v2/v3 proxy, custom mode, bridge mode
Advanced Functions
Routing & Bandwidth Control
- Static routing
- Policy routing
- RIP
- OSPF
- IP‑based bandwidth control
Load Balancing
- Intelligent load balance
- Application‑optimized routing
- Link backup (timing, failover)
- Online detection
NAT Features
- One‑to‑One NAT
- Multi‑Net NAT
- Virtual server
- Port triggering
- NAT‑DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
Session Control
- IP‑based session limit
VPN Capabilities
SSL VPN
- 50 tunnels
IPsec VPN
- 100 IPsec VPN tunnels
- LAN‑to‑LAN, Client‑to‑LAN
- Main, Aggressive negotiation mode
- DES, 3DES, AES128, AES192, AES256 encryption algorithms
- IPsec failover
- IKE v1/v2
- MD5, SHA1, SHA2‑384, SHA2‑512 authentication algorithms
- NAT Traversal (NAT‑T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN
- PPTP VPN server
- PPTP VPN client (10), 50 tunnels
- PPTP with MPPE encryption
L2TP VPN
- L2TP VPN server
- L2TP VPN client (10), 50 tunnels
- L2TP over IPsec
OpenVPN
- OpenVPN server
- OpenVPN client (5), 55 OpenVPN tunnels
- “Certificate + Account” mode
- Full mode
WireGuard VPN
- 20 tunnels
Authentication & Hotspot
- Web authentication
- No authentication
- Simple password
- Hotspot (Local user / Voucher / SMS / Radius)
- External Radius server
- External portal server
- LDAP
Management & Cloud
Omada App
- Supported
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
- Cloud access (requires Omada Cloud-Based Controller)
Services & Maintenance
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS customization)
- Web management interface
- Remote management
- Export & import configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)
- NTP synchronize
- Port mirroring
- CLI (only in Standalone Mode)
- Syslog support
- TR‑069 (data models of TR‑098 and TR181 supported)
- Zero‑Touch Provisioning (requires Omada Cloud-Based Controller)
Management Features
- Automatic device discovery
- Intelligent network monitoring
- Abnormal event warnings
- Unified configuration
- Reboot schedule
- Captive portal configuration
Certification
- CE
- RoHS
Package Contents
- DR3650v
- Power adapter
- Ethernet cable
- Phone cable
- Quick installation guide
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7/8/8.1/10/11
- MAC OS, NetWare, UNIX or Linux
Environment
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Operating Humidity: 10% to 90% non‑condensing
- Storage Humidity: 5% to 90% non‑condensing
