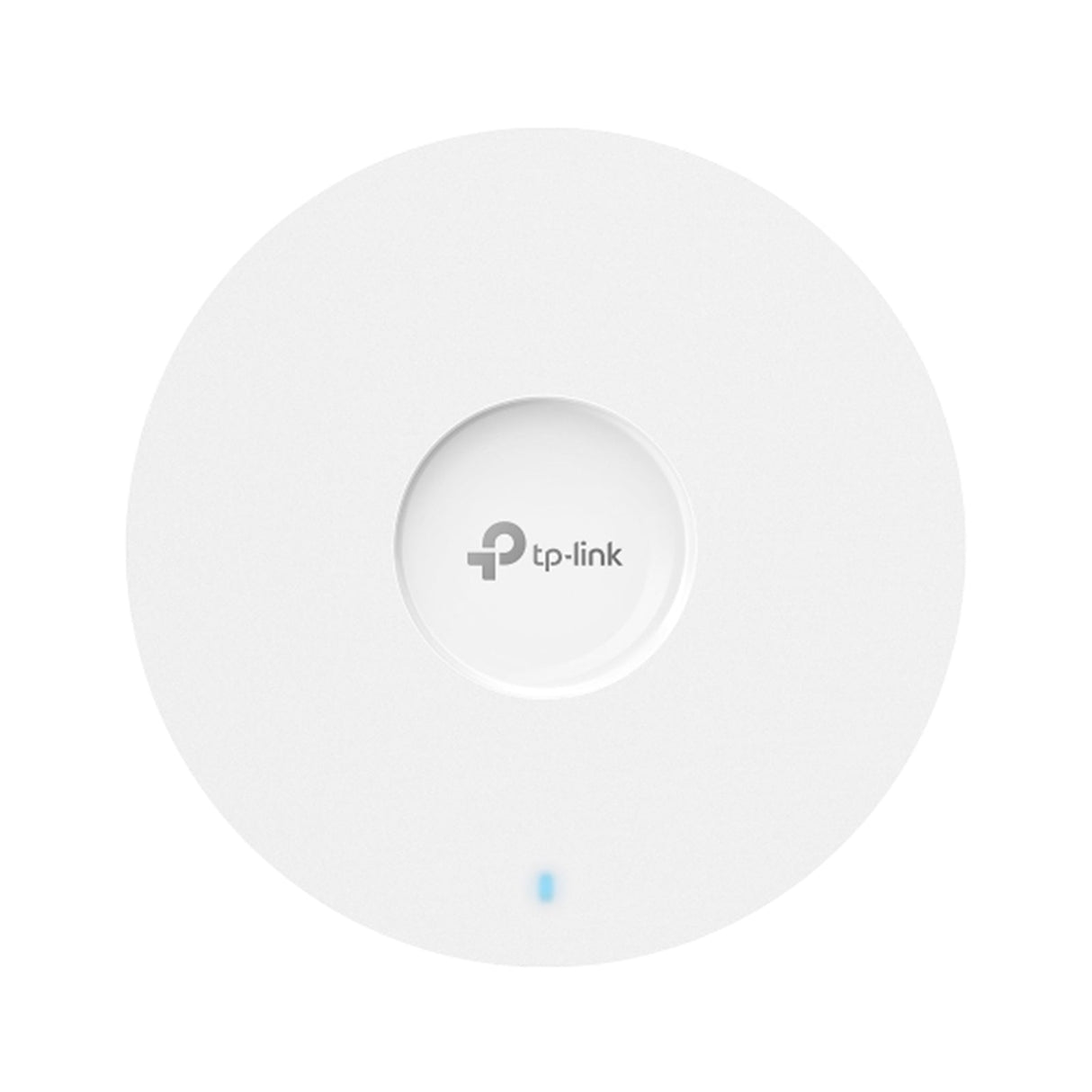

TP-Link Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Ultra Range Access Point
$252.00
AX6000 Ceiling Mount WiFi 6 Access Point
High-performance AX6000 ceiling mount access point designed for powerful WiFi 6 coverage, advanced networking features, and streamlined centralized management.
Key Features
- Ultra-Fast AX6000 WiFi 6 Speeds
- Up to 5952 Mbps combined
- 2.4 GHz: up to 1148 Mbps
-
5 GHz: up to 4804 Mbps
-
Wide Wireless Coverage
- 4×4 MIMO dual-band internal antennas
-
High transmission power for ultra-range coverage
-
WiFi 6 Technologies
- Supports HE160 (160 MHz bandwidth)
- 1024-QAM
- 4x longer OFDM symbol
-
OFDMA
-
Omada SDN Integration
- Integrates with the Omada SDN platform for centralized management
-
Supports Omada Mesh and Seamless Roaming
-
PoE+ Power Options
- 802.3at PoE+ support
-
12 V / 2 A DC input (power adapter not included)
-
Flexible Mounting
- Ceiling or wall mounting
- Mounting kits included
Hardware Specifications
| Item | Details |
|---|---|
| Interface | 1 × 2.5 Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | 802.3at PoE; 12 V / 2 A DC (adapter not included) |
| Max. Power Consumption | EU: 20.43 W; US: 23.69 W |
| Dimensions (W × D × H) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | Internal Omni |
| Antenna Gain (2.4 GHz) | 4 × 4 dBi |
| Antenna Gain (5 GHz) | 4 × 5 dBi |
| Bluetooth | V5.2 |
| Mounting | Ceiling / Wall mounting (kits included) |
Wireless Performance
- Coverage: 185 m² (2000 ft²)***
- Concurrent Clients: 510+**
Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
Frequency
- 2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: up to 4804 Mbps
- 2.4 GHz: up to 1148 Mbps
Wireless Functions
- 1024-QAM
- 4x longer OFDM symbol
- OFDMA
- Multiple SSIDs (up to 16 SSIDs, 8 per band)
- Enable/Disable wireless radio
- Automatic channel assignment
- Transmit power control (adjust transmit power in dBm)
- QoS (WMM)
- MU-MIMO (4×4 MU-MIMO DL & UL)
- MIMO [4×4 (2.4G and 5G) MU-MIMO; 4×4 (2.4G and 5G) SU-MIMO]
- HE160 (160 MHz bandwidth)
- Seamless Roaming (802.11k/v/r)
- Omada Mesh
- Band steering
- Load balance
- Airtime fairness
- Beamforming
- Rate limit
- Reboot schedule
- Wireless schedule
- Wireless statistics based on SSID/AP/client
Wireless Security
- Captive portal authentication
- Access control
- Wireless MAC address filtering
- Wireless isolation between clients
- SSID to VLAN mapping
- Rogue AP detection
- 802.1X support
- WPA-Personal/Enterprise
- WPA2-Personal/Enterprise
- WPA3-Personal/Enterprise
Transmission Power
CE:
- < 20 dBm (2.4 GHz, EIRP)
- < 23 dBm (5 GHz, band 1 & band 2, EIRP)
- < 28 dBm (5 GHz, band 3, EIRP)
FCC:
- < 26 dBm (2.4 GHz)
- < 26 dBm (5 GHz)
Management Features
- Omada App: Yes
Centralized Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
- Yes. Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Additional Management
- Email alerts
- LED On/Off control
- Management MAC access control
- SNMP v1, v2c, v3
- System logging (local/remote Syslog)
- SSH
- Web-based management (HTTP/HTTPS)
- L3 management
- Multi-site management
- Management VLAN
- Zero-Touch Provisioning (requires Omada Cloud-Based Controller)
Other Information
Certification
- CE
- FCC
- RoHS
Package Contents
- EAP683 UR
- Ceiling/Wall mounting kits
- Installation guide
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment
- Operating Temperature: 0–40 °C (32–104 °F)
- Storage Temperature: -40–70 °C (-40–158 °F)
- Operating Humidity: 10–90% RH, non-condensing
- Storage Humidity: 5–90% RH, non-condensing
