TB6600
$23.00

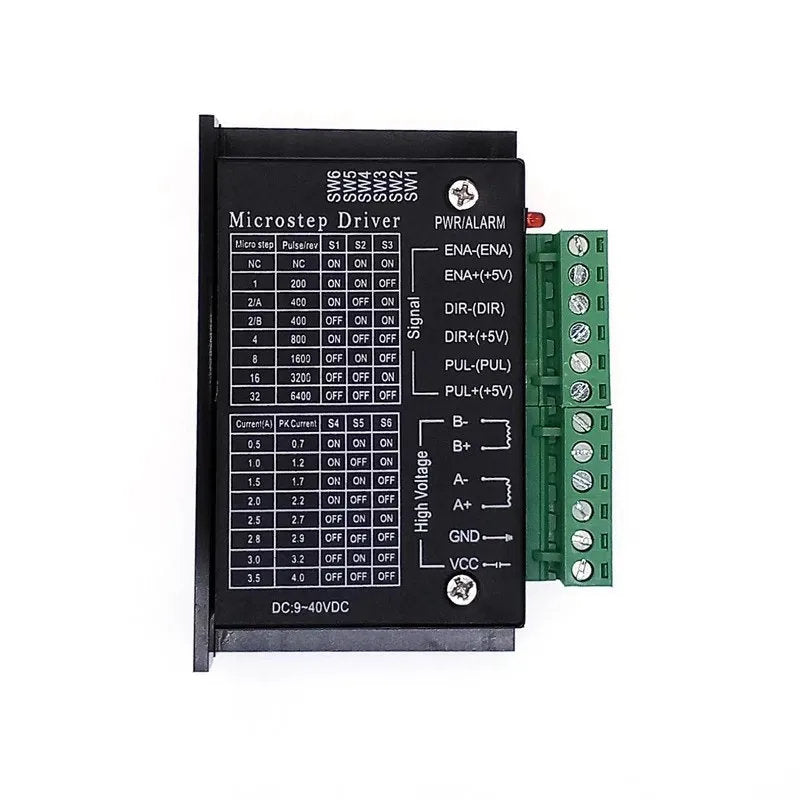

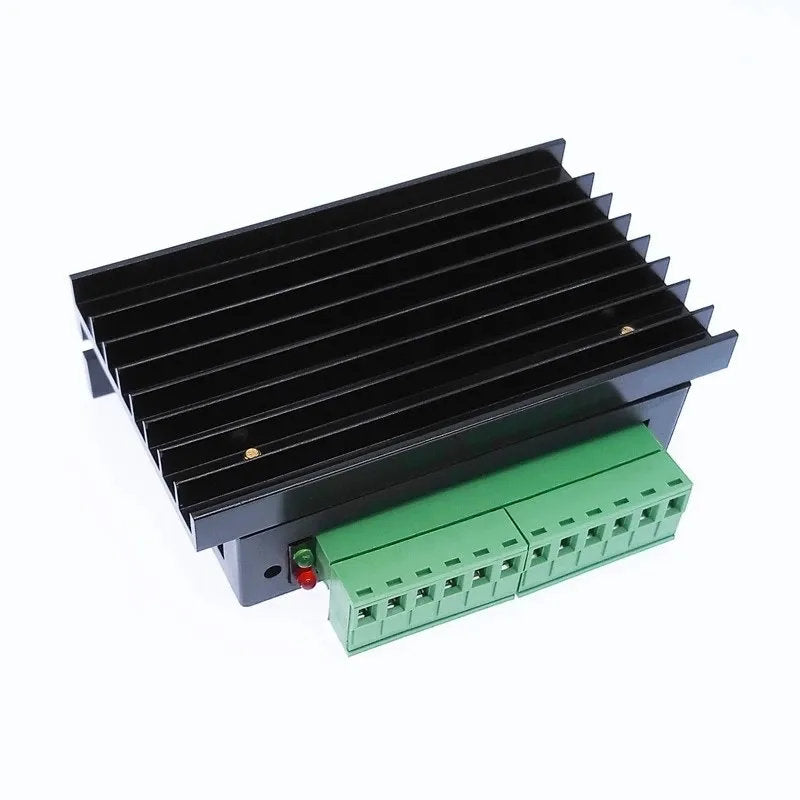

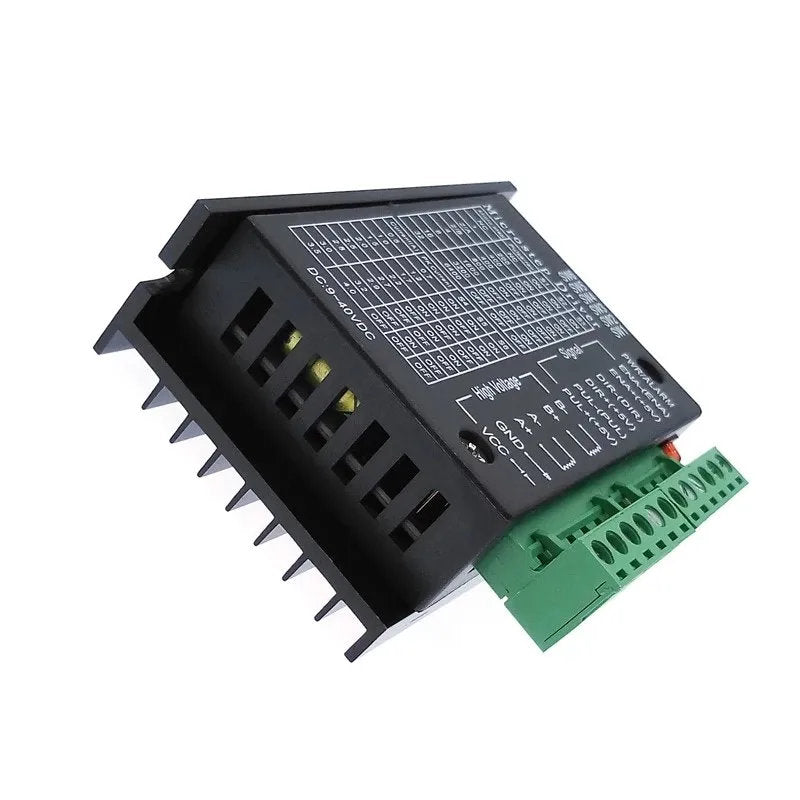

TB6600 Stepper Motor Driver – 4.0A, 9–42VDC
Compatible with NEMA 17 / 23 / 34 (42 / 57 / 86 Type) Stepper Motors
The upgraded TB6600 stepper motor driver is designed for reliable and precise control of two-phase hybrid stepper motors. Featuring up to 32 microstepping subdivisions and a 4.0A peak output current, this driver delivers smooth motion control for a wide range of small and medium-sized automation equipment.
Engineered for enhanced segmentation performance, this upgraded version improves motion accuracy and operational stability while maintaining compact size and efficient heat management.
Key Features
-
Power Supply: DC 9–42V (12–30V recommended for best performance)
-
Output Peak Current: 4.0A
-
Microstepping Options: 1 / 2A / 2B / 4 / 8 / 16 / 32
-
Adjustable Output Current (8 levels):
0.5A / 1.0A / 1.5A / 2.0A / 2.5A / 2.8A / 3.0A / 3.5A -
Control Signal Input Voltage: 3.3–24V (no series resistor required)
-
Drive Type: H-bridge bipolar constant current drive
-
High-Speed Optocoupler Isolation for input signals
-
Built-in Temperature Protection
-
Overcurrent Protection
-
Automatic Half-Current Function to reduce heat generation
-
Motor Noise Optimization Function
-
Compact design for easy integration
Compatibility
Applicable stepper motors:
-
42, 57, 86 type
-
2-phase / 4-phase
-
4-wire, 6-wire, and 8-wire configurations
Suitable for two-phase hybrid stepping motors with phase current below 4.0A.
Best application:
-
57 stepper motors
-
42 stepper motors with torque of 1.8N.m and below
Applications
Widely used in small and medium-sized automation equipment, including:
-
Engraving machines
-
Marking machines
-
Cutting machines
-
Laser phototypesetting machines
-
Plotters
-
CNC machine tools
-
Crystal grinding machines
-
Automatic assembly equipment
Technical Specifications
| Specification | Details |
|---|---|
| Model | TB6600 (Upgraded Version) |
| Supply Voltage | DC 9–42V |
| Recommended Voltage | 12–30V |
| Output Peak Current | 4.0A |
| Adjustable Current Levels | 0.5A / 1.0A / 1.5A / 2.0A / 2.5A / 2.8A / 3.0A / 3.5A |
| Microstepping | 1 / 2A / 2B / 4 / 8 / 16 / 32 |
| Control Signal Voltage | 3.3–24V |
| Drive Type | H-bridge bipolar constant current |
| Protection Functions | Temperature protection, overcurrent protection |
| Isolation | High-speed optocoupler |

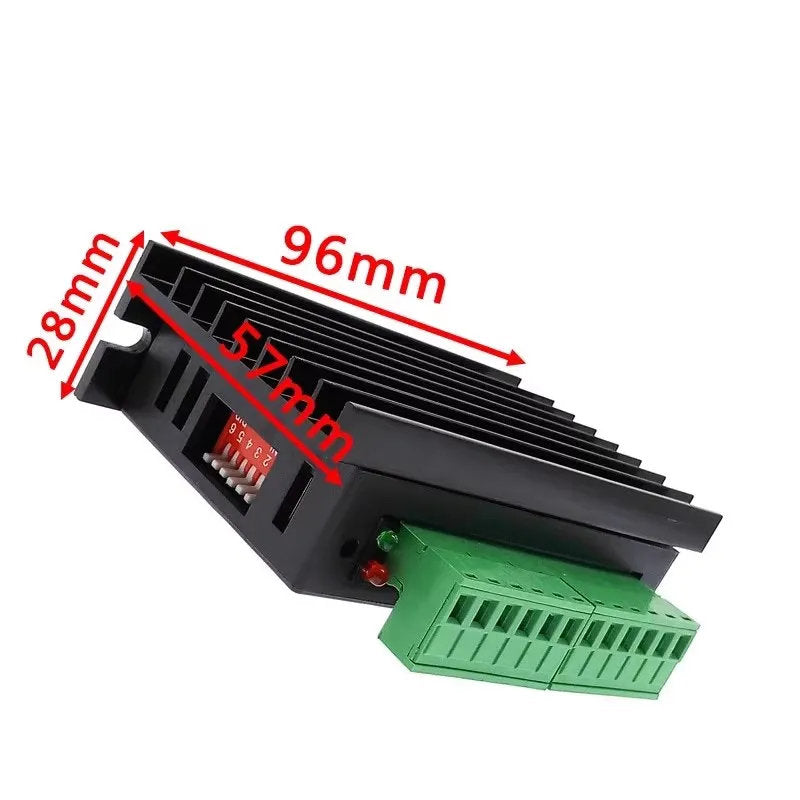

| Size | Small |
This upgraded TB6600 driver provides stable, precise, and efficient stepper motor control, making it a dependable solution for CNC and automation applications.
