Netac Basic NTBSD4N32SP-08 8GB (1x 8GB) SODIMM System Memory, 3200MHz, DDR4, CL22

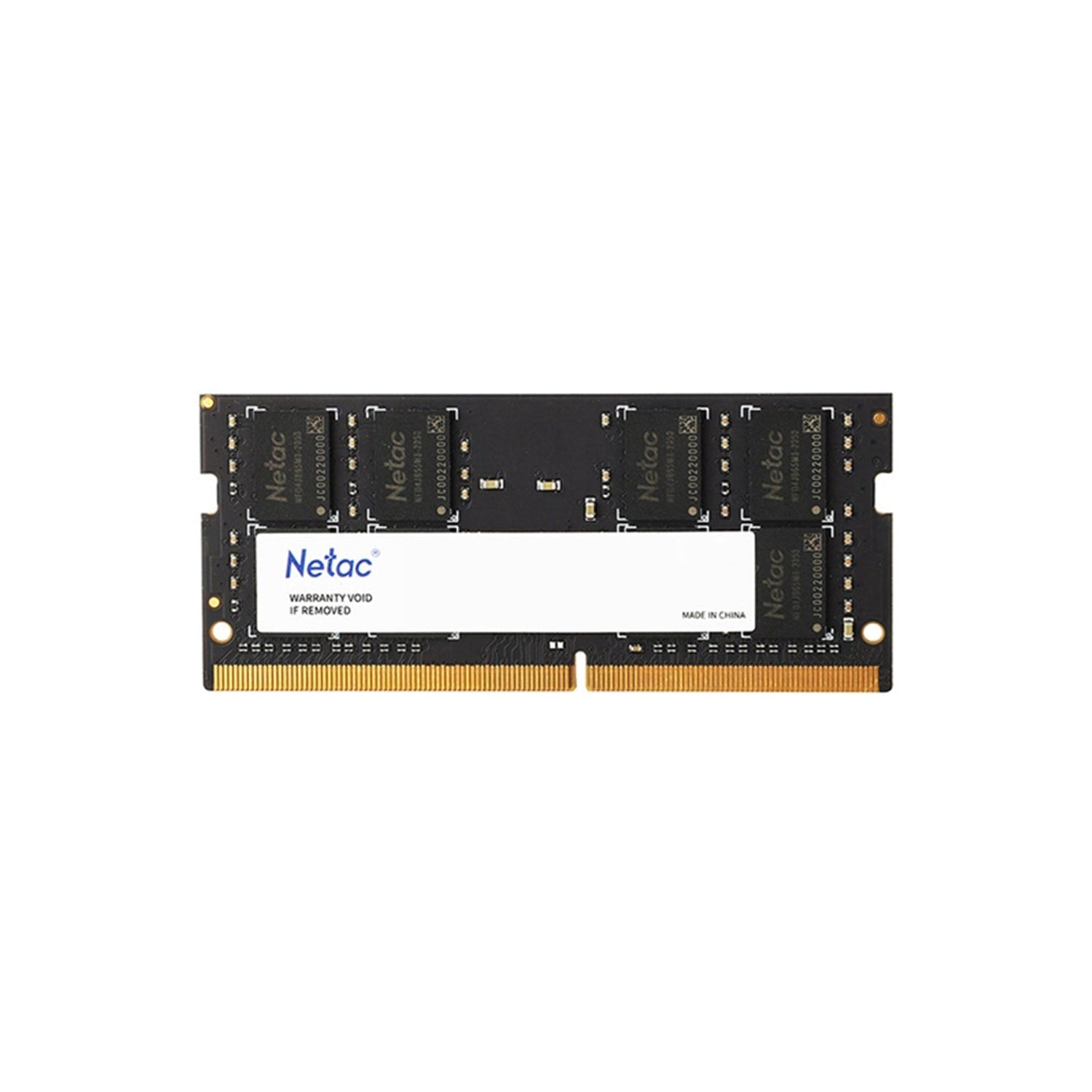

Netac 8GB DDR4 3200MHz SODIMM System Memory (No Heatsink)

The Netac 8GB DDR4 3200MHz SODIMM is an unbuffered small outline DDR4 SDRAM dual in-line memory module designed for use as main memory in systems such as mobile personal computers. It delivers low-power, high-speed operation using DDR4 SDRAM devices and features gold contact fingers for reliable connectivity.

Key Features

• 8GB capacity (1 x 8GB)
• DDR4-3200MHz SODIMM
• Unbuffered, Non-ECC
• 260-pin SODIMM form factor
• Low-power DDR4 SDRAM technology
• Gold edge contacts
• RoHS compliant and halogen-free
• Intended for use as main memory in systems such as mobile personal computers

Electrical Characteristics

• Power Supply:
• VDD = 1.2V (1.14V to 1.26V)
• VDDQ = 1.2V (1.14V to 1.26V)
• VPP = 2.5V (2.375V to 2.75V)
• VDDSPD = 2.25V to 3.6V
• Working Voltage: 1.2V

Performance & Functionality

• DDR4 SDRAM devices
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• On-board I2C serial presence-detect (SPD) EEPROM
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Databus write cyclic redundancy check (CRC)
• Temperature controlled refresh (TCR)
• Command/Address (CA) parity
• Per DRAM addressability support
• 8-bit pre-fetch
• Fly-by topology
• Command/Address latency (CAL)
• Terminated control command and address bus

Physical Specifications

• Module Type: SODIMM
• PCB Height: 1.18" (30.00mm)
• Pin Configuration: 260-pin
• Gold edge contacts
