Mercusys MA86XE AXE5400 Tri-Band Wi-Fi 6E Bluetooth PCI Express Adapter
$56.00

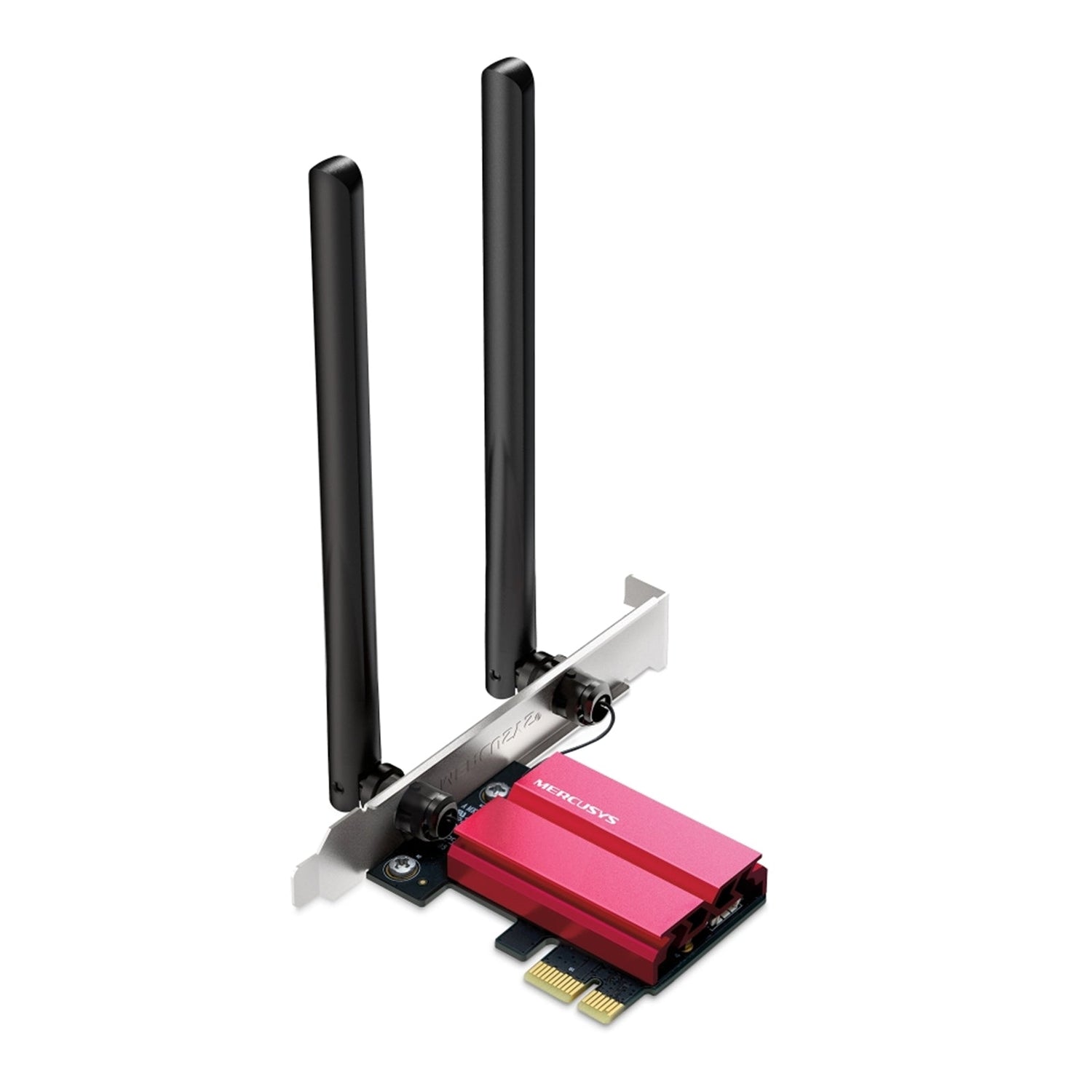

Mercusys AXE5400 Wi‑Fi 6E Bluetooth 5.2 PCIe Adapter (MA86XE)
Upgrade your desktop connectivity with the Mercusys AXE5400 Wi‑Fi 6E Bluetooth 5.2 PCIe Adapter, delivering ultra‑fast tri‑band wireless speeds, wider coverage, and enhanced security.
Key Features
Unstoppable Tri‑Band Speed
Experience combined speeds up to AXE5400 across three bands:
- 6 GHz: up to 2402 Mbps
- 5 GHz: up to 2402 Mbps
- 2.4 GHz: up to 574 Mbps

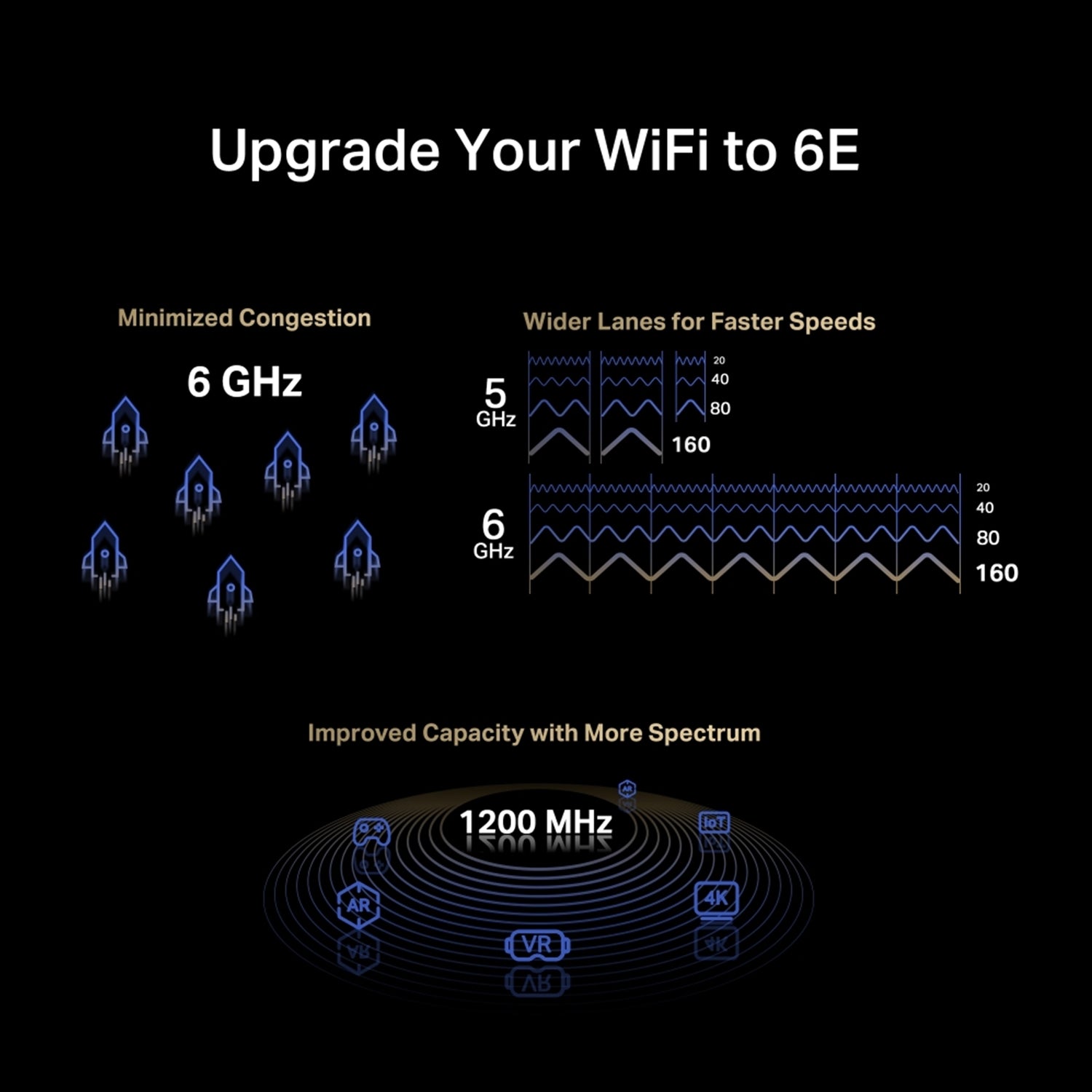

Wi‑Fi 6E Standard
- Expand to the clearer, broader 6 GHz band
- Benefit from the latest Intel Wi‑Fi 6E chipset for reliable connections
Wider Signal Coverage
- Two high‑performance omni‑directional antennas help extend signal coverage
Bluetooth 5.2
- Integrated Bluetooth 5.2 provides faster speeds and broader coverage
Improved Security
- Supports WPA3 for enhanced personal password protection
- Also compatible with WPA‑PSK/WPA2‑PSK
Backward Compatibility
- Full support for 802.11ax/ac/a/b/g/n wireless standards
Windows Compatible
- Supported operating systems: Windows 10, 11 (64‑bit)
- 6 GHz band available on Windows 11
Specifications
Wireless
| Category | Details |
|---|---|
| Wireless Standards | IEEE 802.11 a/ac/ax (5 GHz) • IEEE 802.11 b/g/n/ax (2.4 GHz) |
| Signal Rate | 2402 Mbps (6 GHz) • 2402 Mbps (5 GHz) • 574 Mbps (2.4 GHz) |
| Wireless Security | WPA‑PSK / WPA2‑PSK / WPA3‑SAE |
Reception Sensitivity
6 GHz
- 11ax HE160 MCS0: -86 dBm
- 11ax HE160 MCS11: -56 dBm
5 GHz
- 11ax HE80 MCS0: -90 dBm
- 11ax HE80 MCS11: -59 dBm
- 11a 54 Mbps: -77 dBm
- 11ac VHT80 MCS0: -92 dBm
- 11ac VHT80 MCS9: -64 dBm
2.4 GHz
- 11ax HE40 MCS0: -91 dBm
- 11ax HE40 MCS11: -60 dBm
- 11g 54 Mbps: -76 dBm
- 11n HT40 MCS7: -72 dBm
Hardware
| Category | Details |
|---|---|
| Dimensions | 8.9 × 4.8 × 0.85 in (226.3 × 120.8 × 21.5 mm) |
| Antennas | 2 × fixed high‑performance omni‑directional antennas |
Package Contents
- AXE5400 Wi‑Fi 6E Bluetooth 5.2 PCIe Adapter (MA86XE)
- Bluetooth header cable
- Quick Installation Guide
- Resource CD
Environment
| Condition | Range |
|---|---|
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% ~ 90% non‑condensing |
| Storage Humidity | 5% ~ 90% non‑condensing |
System Requirements
- Supported operating systems: Windows 10, 11 (64‑bit)
