Gigabyte B760 GAMING X DDR4 GEN5 Intel 1700 Socket Motherboard, ATX, 4x DDR4 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port
$200.00

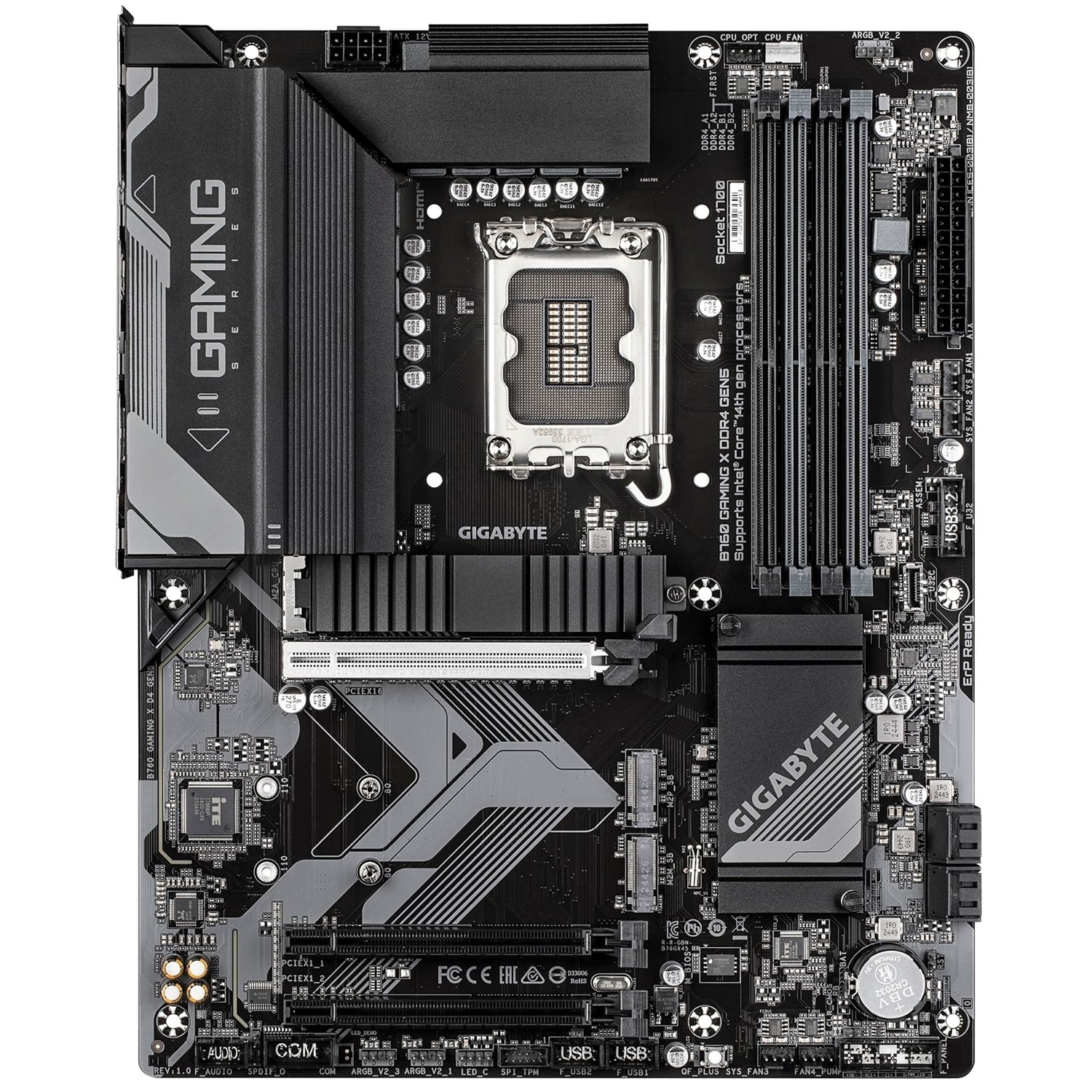

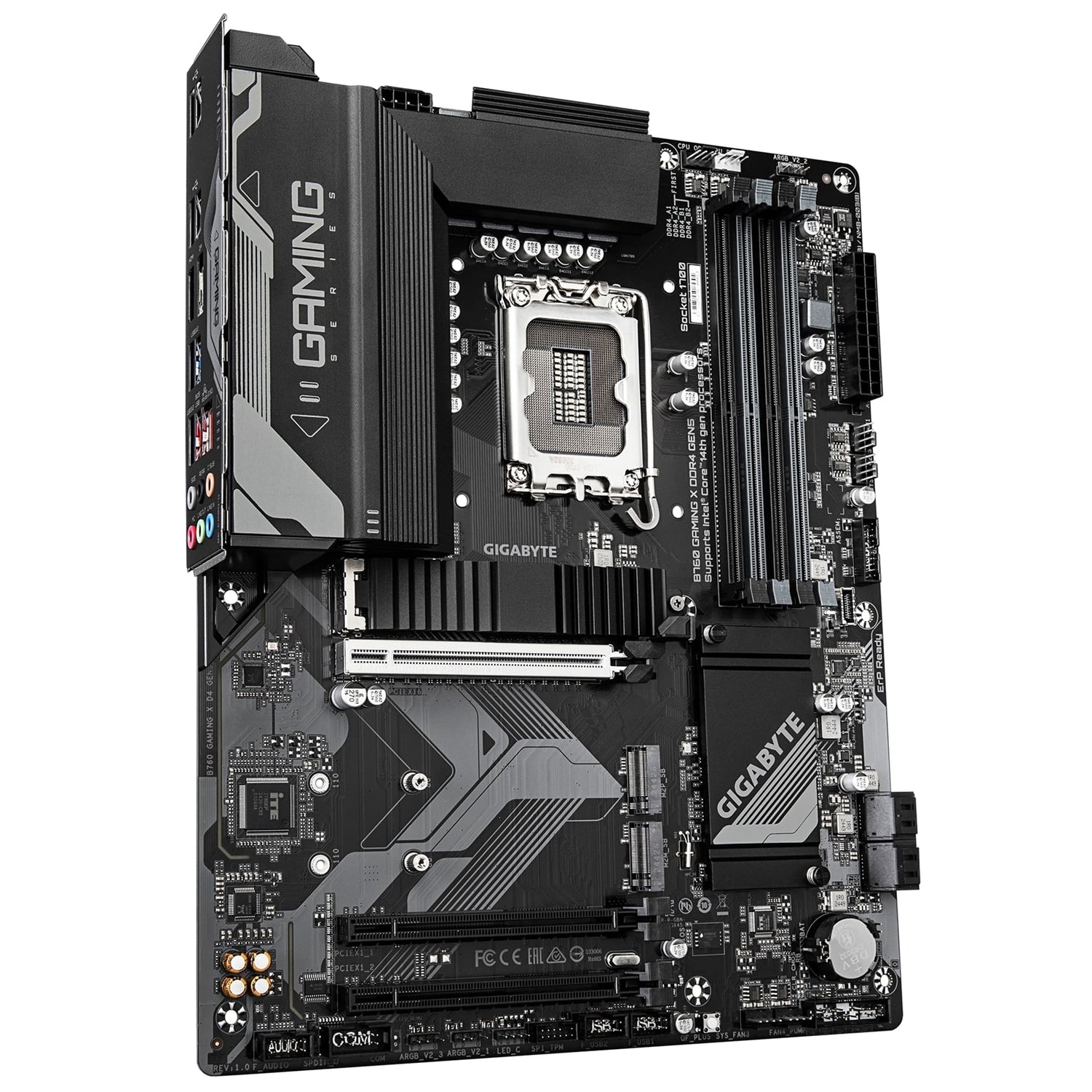

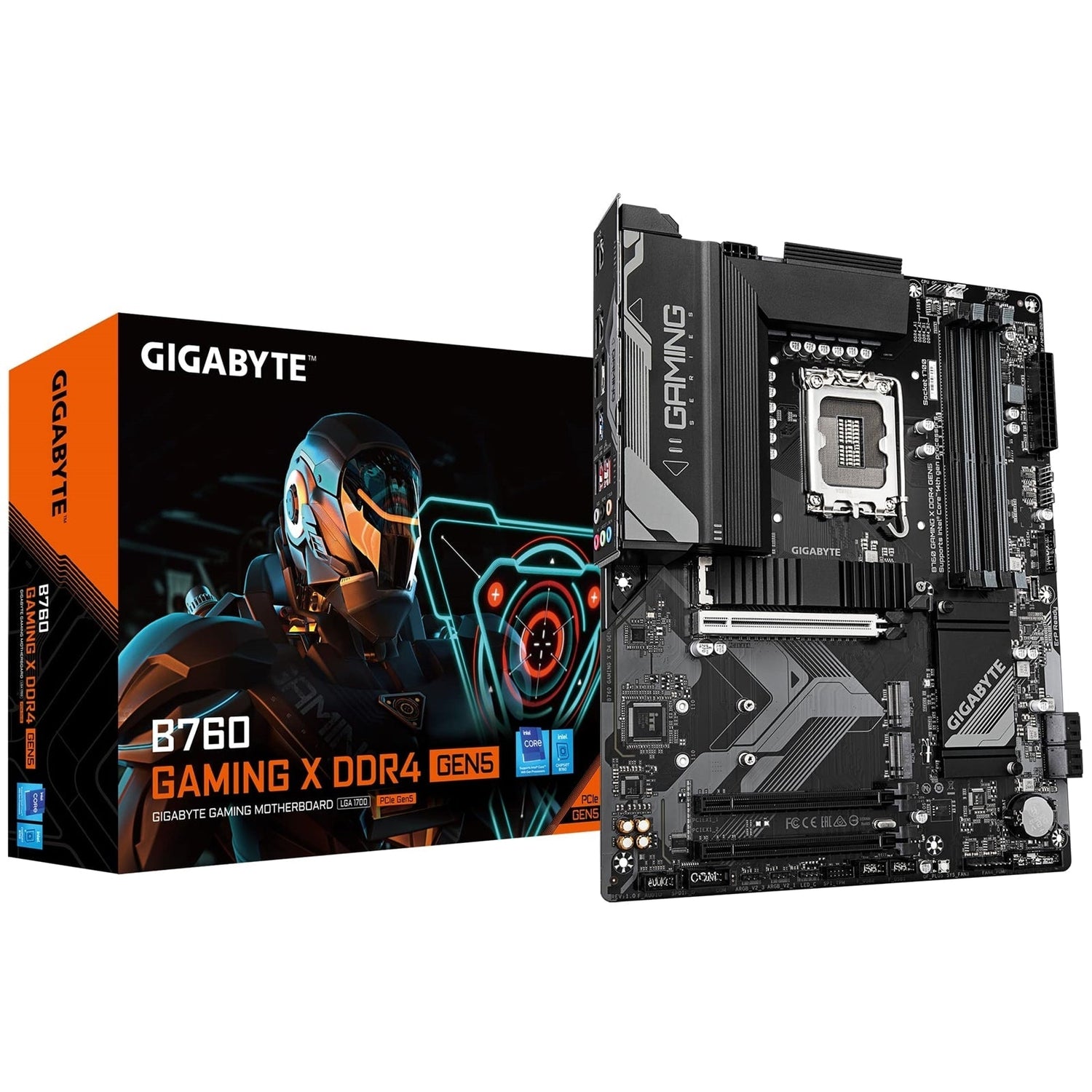

B760 GAMING X DDR4 GEN5 Motherboard
The B760 GAMING X DDR4 GEN5 motherboard is designed for Intel® 14th, 13th, and 12th Gen processors, delivering PCIe Gen5 graphics support, extensive connectivity, and advanced thermal solutions for gaming and performance PC builds.
Key Features
- PCIe Gen5 Performance
- PCIe 5.0 x16 graphics slot
-
Perfect sync with Intel® Core™ 14th / 13th / 12th Gen processors
-
Efficient Thermal Design
- VRM Thermal Armor Advanced
-
M.2 Thermal Guard
-
EZ-Latch
-
PCIe 5.0 x16 slot with quick release design
-
PCIe UD Slot
-
SMD PCIe 5.0 Armor for enhanced graphics card support
-
Unparalleled Power Delivery
-
Hybrid 8+1+1 phases VRM solution
-
Dual Channel DDR4 Memory
- 4 x DIMM slots
-
XMP memory module support
-
Fast Networking
-
Realtek® 2.5GbE LAN
-
Extended Connectivity
- Front USB Type-C® 10 Gb/s
-
DisplayPort and HDMI video outputs
-
Next Generation Storage
-
3 x PCIe 4.0 x4 M.2 connectors
-
Smart Fan 6
- Multiple temperature sensors
-
Hybrid fan headers with FAN STOP
-
Q-Flash Plus
- Update BIOS without installing CPU, memory, or graphics card
Specifications
CPU
| Item | Description |
|---|---|
| Socket | LGA1700 |
| Supported CPUs | 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| L3 Cache | Varies with CPU |
| Note | For latest CPU support list, refer to GIGABYTE’s website |
Chipset
| Item | Description |
|---|---|
| Chipset | Intel® B760 Express Chipset |
Memory
| Item | Description |
|---|---|
| Type | DDR4 |
| Supported Speeds (MT/s) | 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 |
| Slots | 4 x DDR DIMM sockets |
| Max Capacity | Up to 128 GB (32 GB per DIMM) |
| Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP | Support for Extreme Memory Profile (XMP) |
| Note | Refer to “Memory Support List” for more details |
BIOS
| Item | Description |
|---|---|
| ROM | 1 x 256 Mbit flash |
| Type | AMI UEFI BIOS (licensed) |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Graphics (Integrated)
| Item | Description |
|---|---|
| Controller | Integrated Graphics Processor – Intel® HD Graphics support |
| DisplayPort | 1 x DP, max resolution 4096 x 2304 @ 60 Hz; DP 1.2, HDCP 2.3 |
| HDMI | 1 x HDMI, max resolution 4096 x 2160 @ 60 Hz; HDMI 2.1, HDCP 2.3* |
| Note | *Supports native HDMI 2.1 TMDS compatible ports |
Audio
| Item | Description |
|---|---|
| Codec | Realtek® Audio CODEC |
| Specification | High Definition Audio |
| Channels | 2 / 4 / 5.1 / 7.1-channel |
| S/PDIF | Support for S/PDIF Out |
| Note | Audio jack functionality configurable via audio software; configure 7.1-channel audio in software settings |
LAN
| Item | Description |
|---|---|
| Controller | Realtek® 2.5GbE LAN chip |
| Speeds | 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless LAN
| Item | Description |
|---|---|
| Wireless | N/A |
Expansion Slots
| Source | Slot | Standard | Lanes / Mode |
|---|---|---|---|
| CPU | 1 x PCI Express x16 (PCIEX16) | PCIe 5.0 | x16 |
| Chipset | 2 x PCI Express x16 (PCIEX1_1, PCIEX1_2) | PCIe 3.0 | x1 |
- The PCIEX16 slot can only support a graphics card or an NVMe SSD.
- If only one graphics card is installed, it must be in the PCIEX16 slot.
Storage
| Source | Connector | Type | Interface |
|---|---|---|---|
| CPU | 1 x M.2 (M2A_CPU) | Socket 3, M key, 22110/2280 | PCIe 4.0 x4/x2 SSD |
| Chipset | 2 x M.2 (M2P_SB, M2M_SB) | Socket 3, M key, 22110/2280 | PCIe 4.0 x4/x2 SSD |
| Chipset | 4 x SATA connectors | SATA 6 Gb/s | — |
RAID
| Item | Description |
|---|---|
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 (SATA storage devices) |
USB
| Source | Ports | Details |
|---|---|---|
| Chipset | 1 x USB Type-C® (internal header) | USB 3.2 Gen 2 |
| Chipset | 1 x USB 3.2 Gen 2 Type-A (back, red) | USB 3.2 Gen 2 |
| Chipset | 1 x USB Type-C® (back) | USB 3.2 Gen 1 |
| Chipset | 4 x USB 3.2 Gen 1 | 2 rear, 2 via internal header |
| Chipset | 1 x USB 2.0/1.1 | Back panel |
| Chipset + 2 x USB 2.0 Hubs | 8 x USB 2.0/1.1 | 4 rear, 4 via internal headers |
Internal Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6 Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type-C® header (USB 3.2 Gen 2)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper

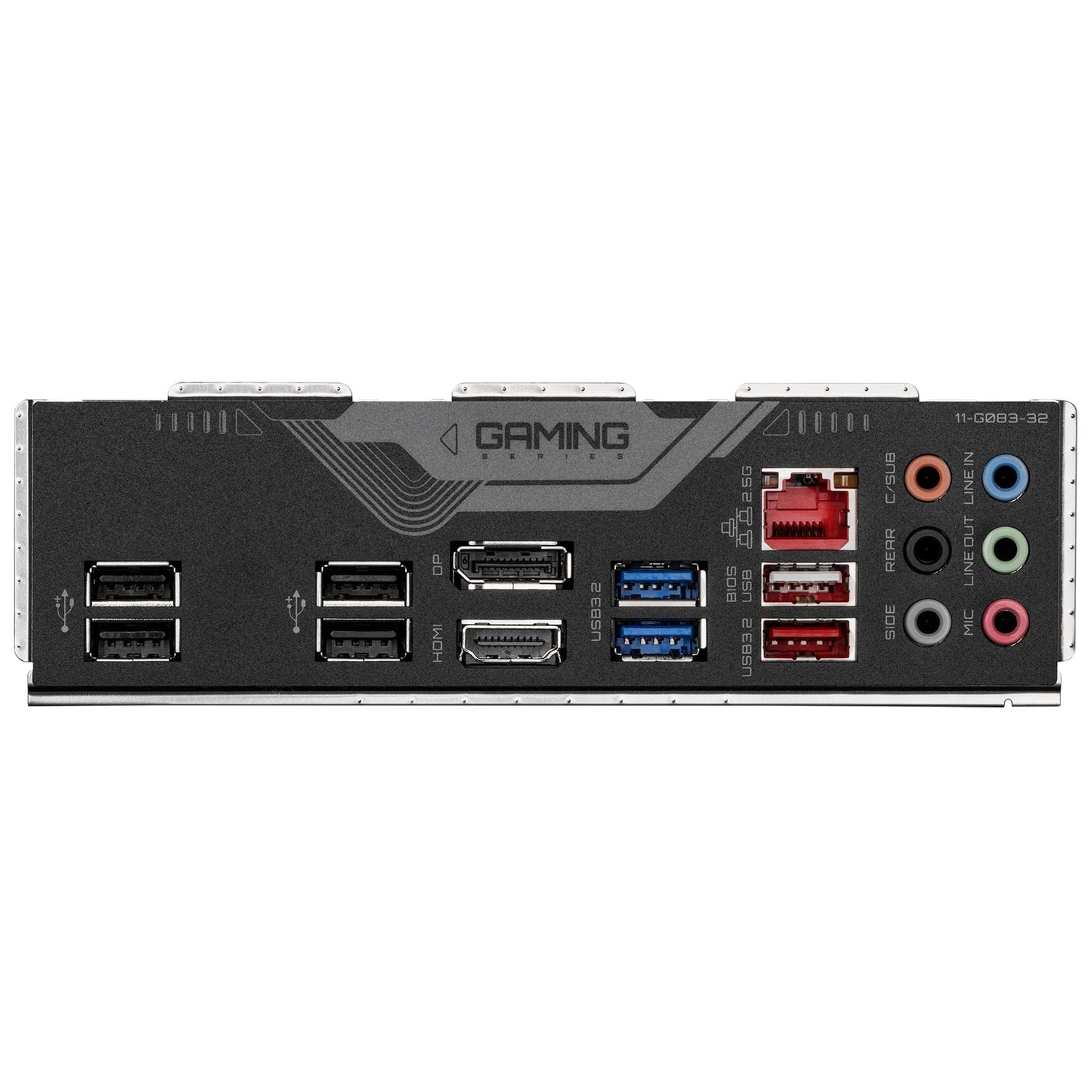

Rear Panel I/O
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 2 x USB 3.2 Gen 1 ports
- 5 x USB 2.0/1.1 ports
- 1 x DisplayPort*
- 1 x HDMI port*
- 1 x RJ-45 LAN port
- 6 x audio jacks
*For resolution and standard details, see Graphics section.
Form Factor
| Item | Description |
|---|---|
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
Operating System Support
| Item | Description |
|---|---|
| OS | Windows 11 64-bit |
| OS | Windows 10 64-bit |
