ASRock B860 Rock WiFi 7 Intel 1851 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 7, 1x HDMI Port
$230.00

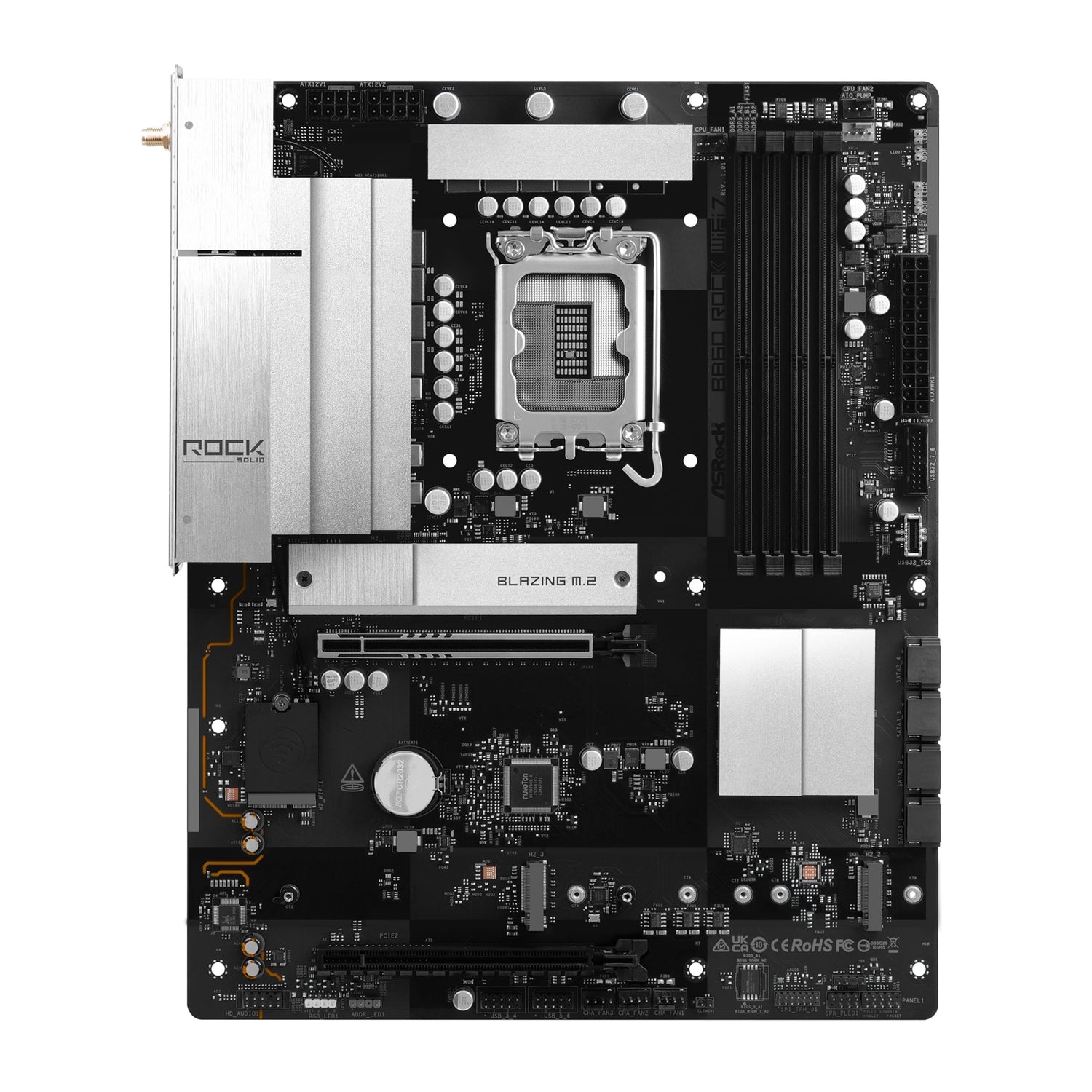

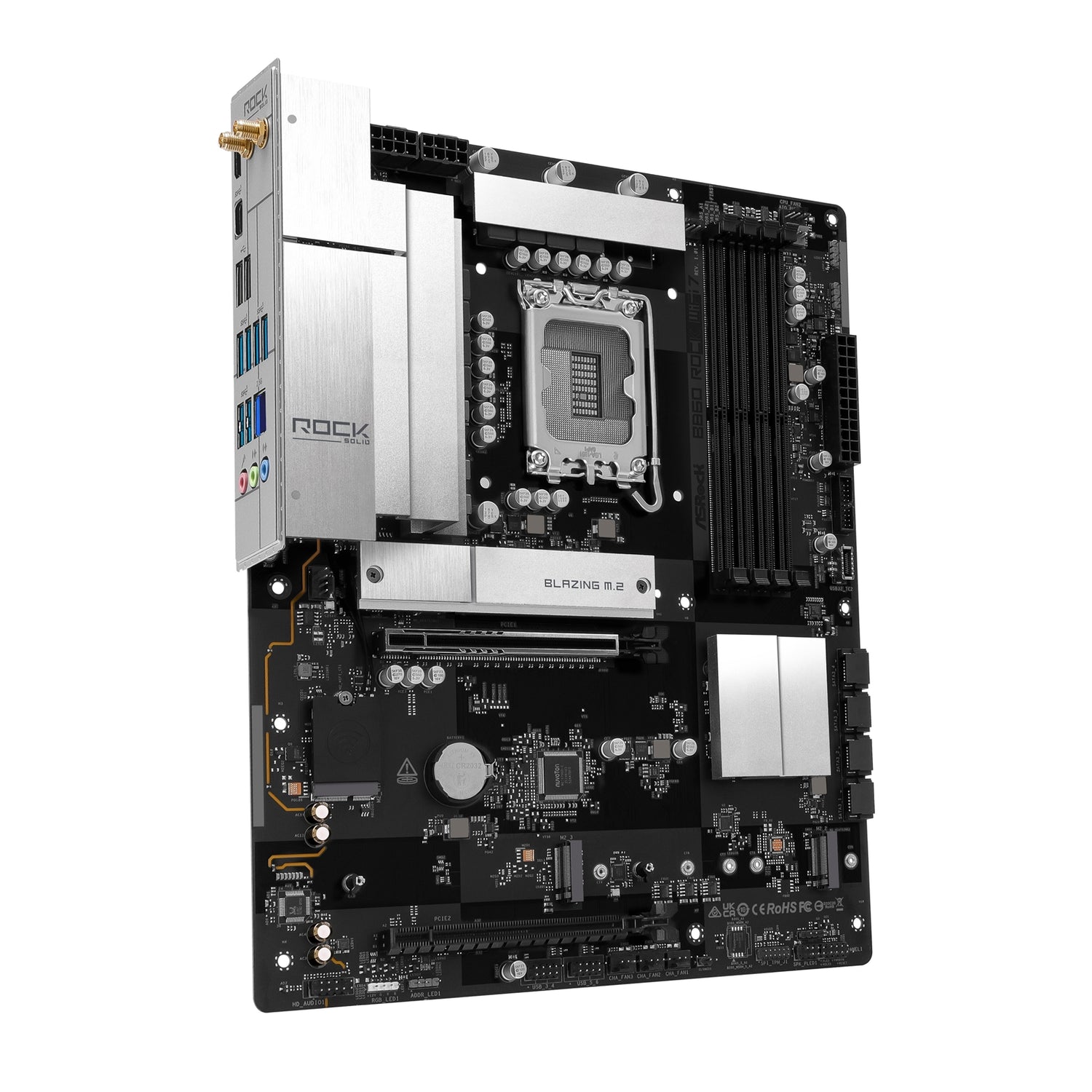

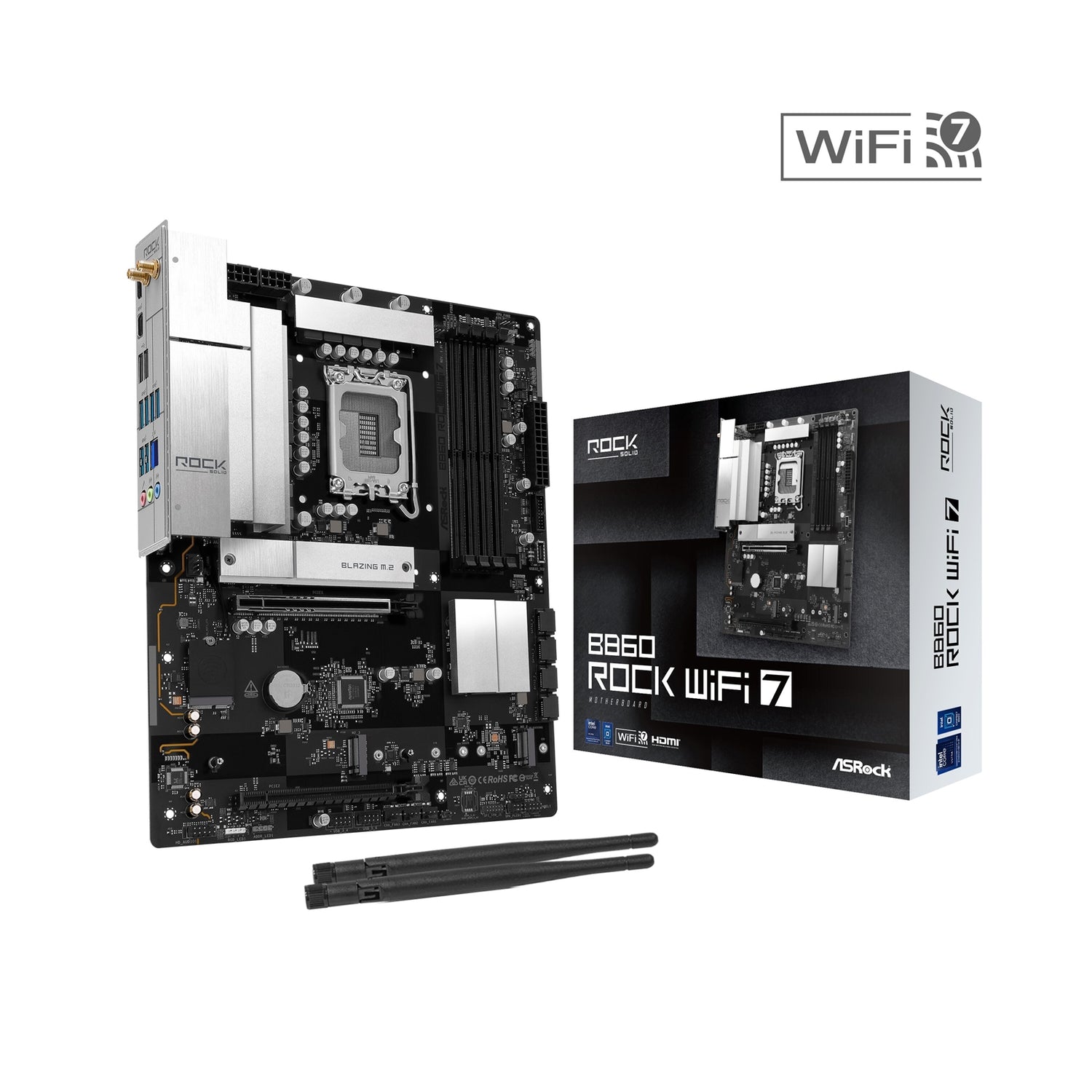

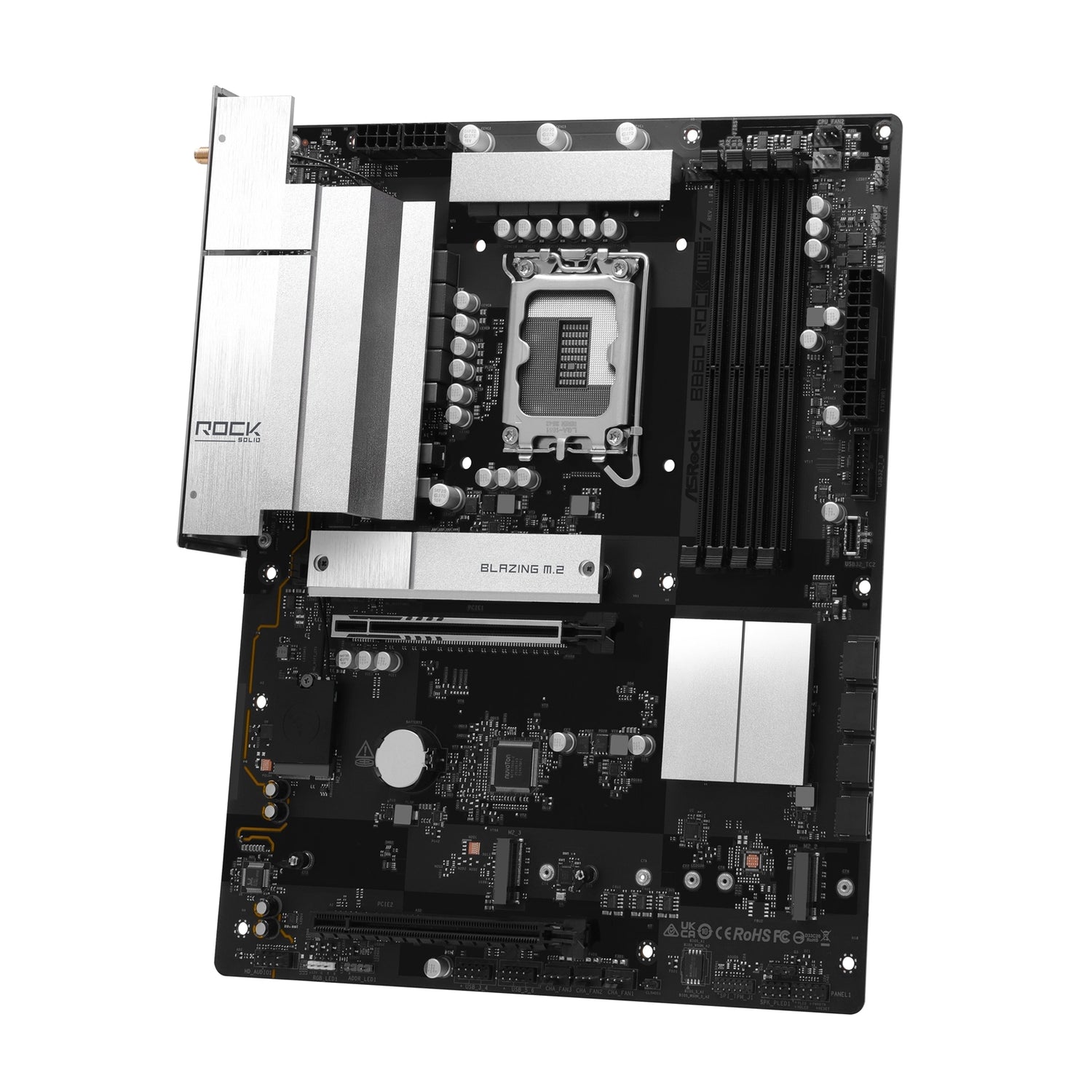

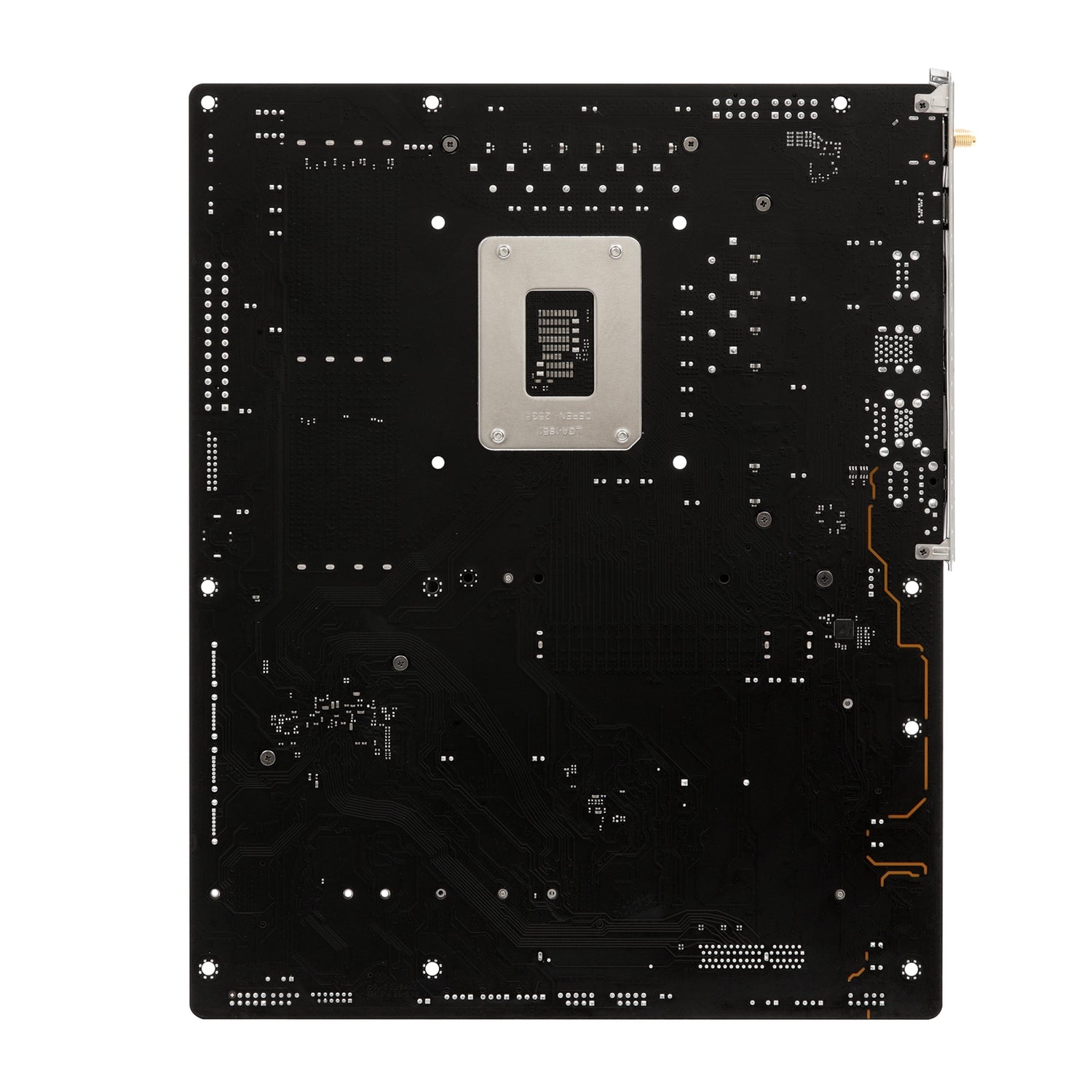

ASRock B860 Rock WiFi 7 Motherboard
Key Features
Unique Features
- Superb Productivity
- PCIe Gen5 support (Graphics, M.2)
- Dual Channel DDR5
- Rock-Solid Durability
- 8+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
- Pre-installed I/O shield
- Ultrafast Connectivity
- 2.5G LAN
- 802.11be Wi-Fi 7 module
- EZ Update
- ASRock Auto Driver Installer
- EZ Troubleshooter
CPU & Chipset
CPU Support - Intel® Core™ Ultra Processors (Series 2) (LGA1851) - Intel® Hybrid Technology - Intel® Turbo Boost Max 3.0 Technology - Intel® Thermal Velocity Boost (TVB) - Intel® Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration
Chipset - Intel® B860
Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM slots
- Supports DDR5 non-ECC, un-buffered memory up to 8666+ (OC)*
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Max system memory capacity: 256GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel® Xe LPG Graphics Architecture
- 1 x HDMI 2.1 TMDS/FRL 8G compatible
- Supports HDR
- Supports HDCP 2.3
- Max resolution up to 4K 120Hz
Audio
- 7.1 CH HD Audio
- Realtek ALC897 Audio Codec
Networking
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
Dragon 2.5G LAN Software
- Smart auto adjust bandwidth control
- Visual user-friendly UI
- Visual network usage statistics
- Optimized default settings for Game, Browser, and Streaming modes
- User customized priority control
Wireless LAN & Bluetooth
- 802.11be 2x2 Wi-Fi 7 module
- Supports IEEE 802.11a/b/g/n/ac/ax/be
- Supports 2.4GHz / 5GHz / 6GHz frequency bands*
- Supports 160MHz channel bandwidth with 6GHz frequency band*
- 2 antennas supporting 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO
Expansion Slots
CPU - 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode*
Chipset
- 1 x PCIe 4.0 x16 slot (PCIE2), supports x4 mode*
- 1 x M.2 socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
CPU
- 1 x Blazing M.2 socket (M2_1, Key M)
- Supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset
- 1 x Hyper M.2 socket (M2_2, Key M)
- Supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 socket (M2_3, Key M)
- Supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s connectors
RAID
- Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
USB Connectivity
CPU - 1 x USB 3.2 Gen1 (Rear, USB32_5)
Chipset
- 2 x USB 3.2 Gen1 Type-C (1 rear, 1 front)
- 7 x USB 3.2 Gen1 (5 rear: USB32_1234 and USB32_6, 2 front)
- 6 x USB 2.0 (2 rear, 4 front)
Internal Connectors & Headers
- 1 x SPI TPM header
- 1 x Power LED and speaker header
- 1 x RGB LED header*
- 3 x Addressable LED headers**
- 2 x CPU fan connectors (4-pin) with Smart Fan Speed Control***
- 4 x Chassis fan connectors (4-pin) with Smart Fan Speed Control***
- 1 x AIO pump fan connector (4-pin) with Smart Fan Speed Control***
- 1 x 24-pin ATX power connector
- 2 x 8-pin 12V power connectors (Hi-Density Power Connector)
- 1 x Front panel audio connector
- 2 x USB 2.0 headers (support 4 x USB 2.0 ports)
- 1 x USB 3.2 Gen1 header (supports 2 x USB 3.2 Gen1 ports)
- 1 x Front panel Type-C USB 3.2 Gen1 header

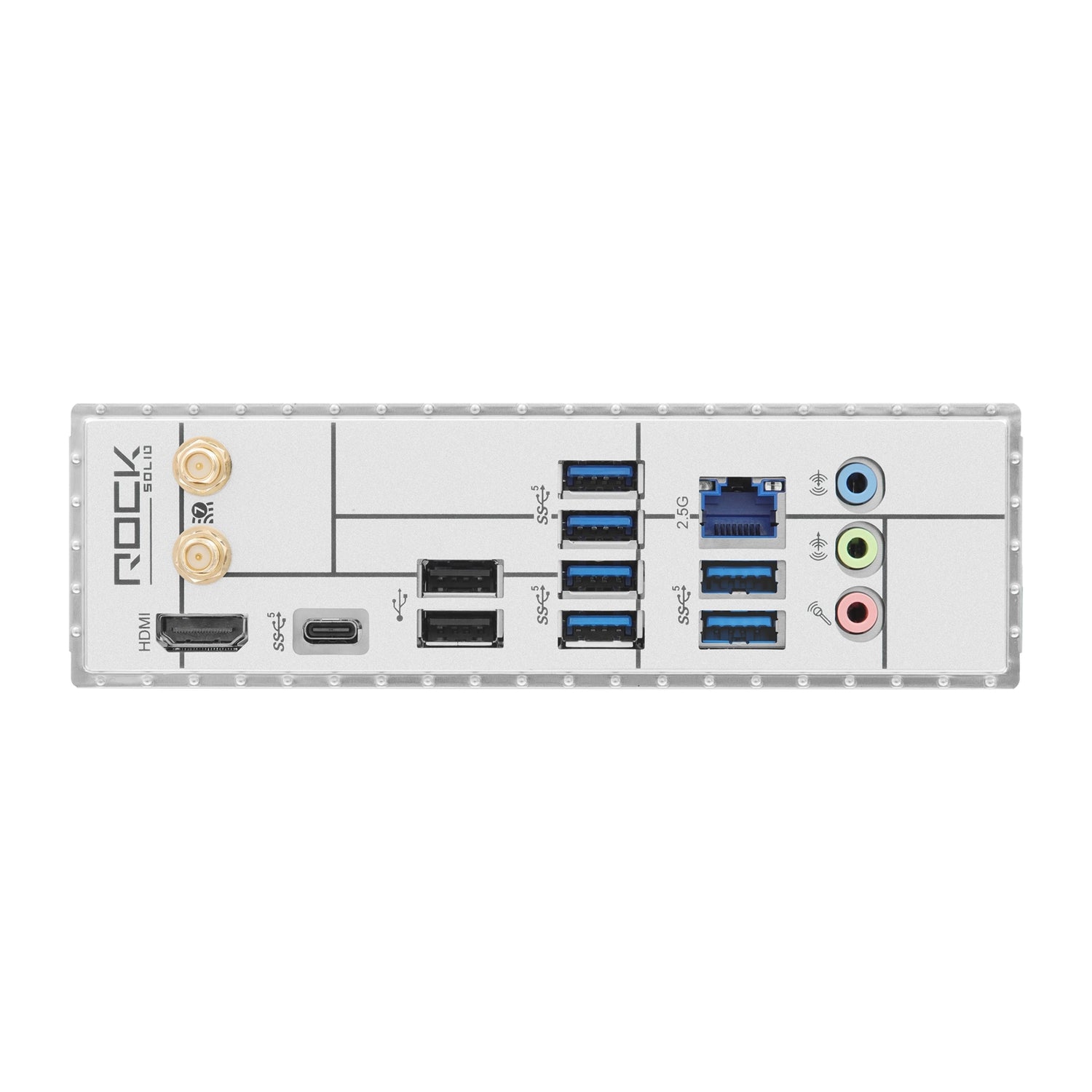

Rear Panel I/O
- 2 x Antenna ports
- 1 x HDMI port
- 1 x USB 3.2 Gen1 Type-C port
- 6 x USB 3.2 Gen1 ports
- 2 x USB 2.0 ports
- 1 x RJ-45 LAN port
- HD audio jacks: Line In / Front Speaker / Microphone
Software & UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI Features
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories
- 2 x SATA data cables
- 2 x ASRock WiFi 2.4/5/6 GHz antennas
Form Factor
- ATX Form Factor
- Dimensions: 12.0 in x 9.6 in (30.5 cm x 24.4 cm)
Operating System
- Microsoft Windows® 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply required)
Technical Specifications Summary
| Category | Specification |
|---|---|
| CPU Socket | LGA1851 |
| Chipset | Intel® B860 |
| Memory | 4 x DDR5 DIMM, up to 256GB, up to 8666+ (OC)*, Dual Channel, XMP 3.0 |
| Graphics | Intel® Xe LPG, HDMI 2.1 up to 4K 120Hz, HDR, HDCP 2.3 |
| Audio | 7.1 CH HD Audio, Realtek ALC897 |
| LAN | 2.5G (Dragon RTL8125BG) |
| Wireless | Wi-Fi 7 (802.11be 2x2), Bluetooth 5.4 |
| Expansion | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4) |
| M.2 Slots | 1 x PCIe Gen5x4, 2 x PCIe Gen4x4 |
| SATA | 4 x SATA3 6.0 Gb/s |
| RAID | RAID 0 / 1 / 5 / 10 (SATA) |
| USB (Rear) | 1 x USB-C 3.2 Gen1, 6 x USB 3.2 Gen1, 2 x USB 2.0 |
| USB (Internal) | 1 x USB-C 3.2 Gen1, 1 x USB 3.2 Gen1 header, 2 x USB 2.0 headers |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| OS Support | Windows® 11 64-bit |
| Certifications | FCC, CE, ErP/EuP ready |
