ASRock B850M Pro RS WiFi AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port
$202.00

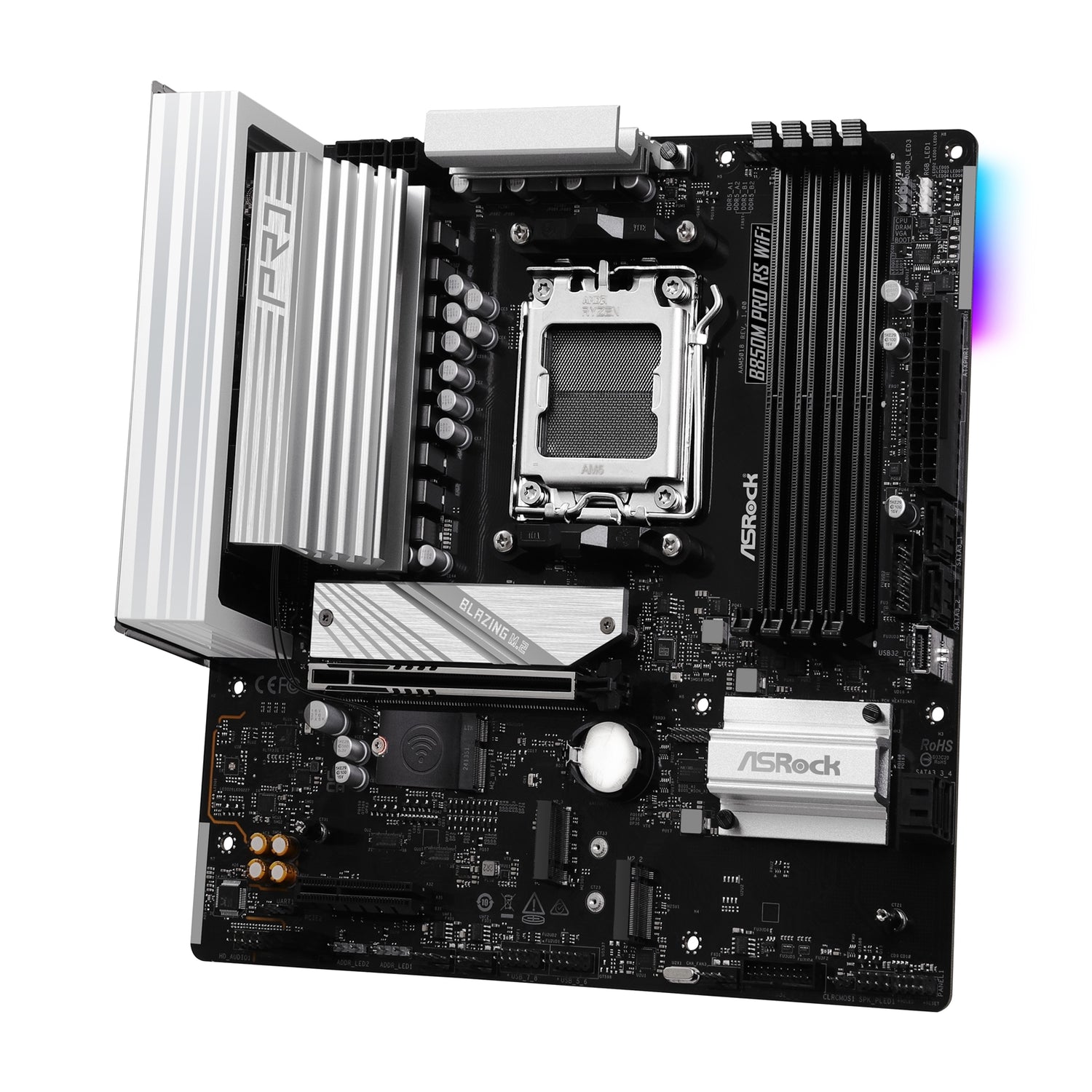

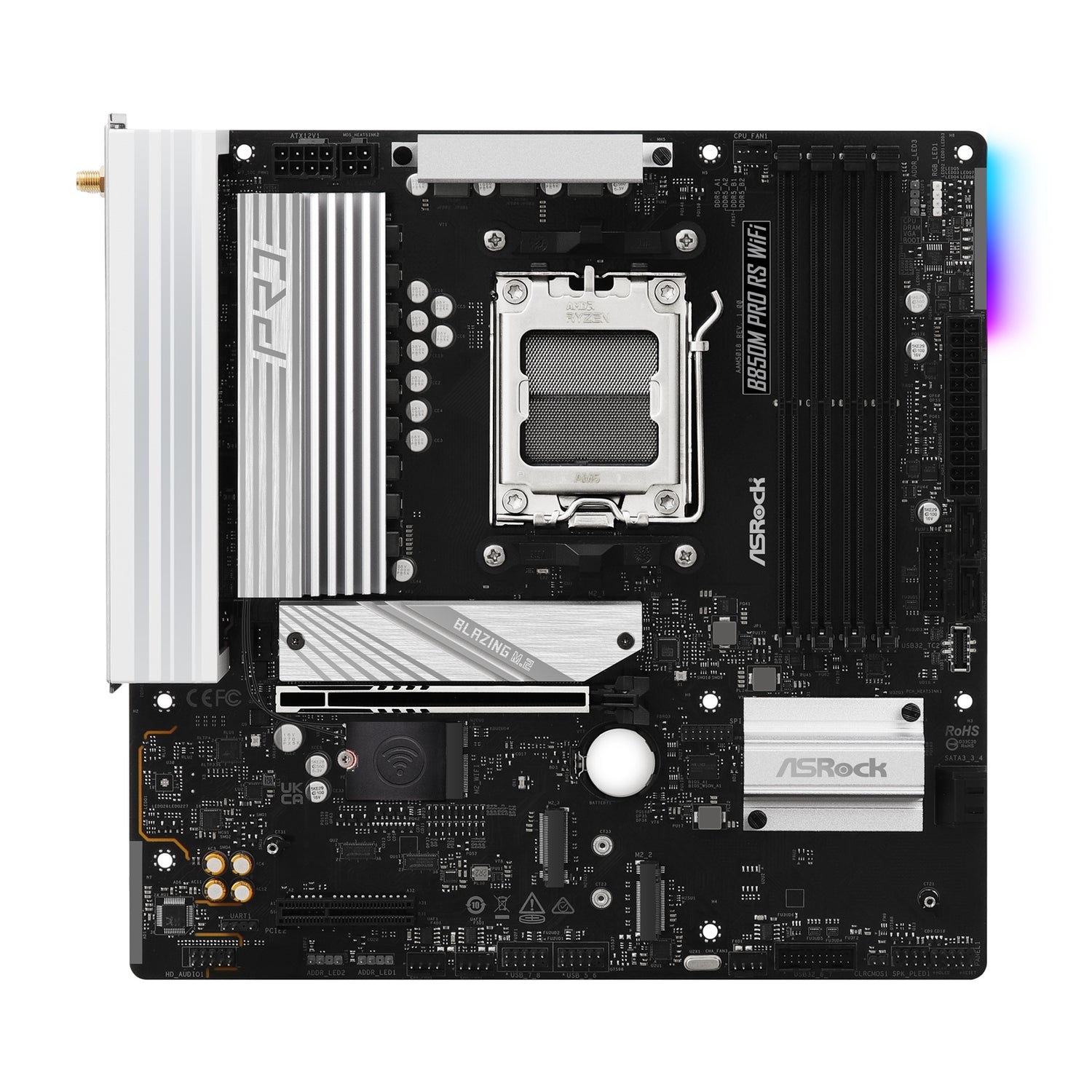

ASRock B850M PRO RS WiFi Motherboard (AMD B850, AM5, mATX)
The ASRock B850M PRO RS WiFi is a Micro ATX AMD B850 motherboard designed for AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series processors, combining PCIe Gen5 support, DDR5 memory, fast storage, and integrated WiFi 6E for a compact, high-performance build.
Key Features
- Socket & CPU Support
-
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
-
Power Design
- 8 + 2 + 1 power phase design
- Dr.MOS for VCore + SOC + MISC
-
Vcore with Dr.MOS design for smoother power delivery to the CPU
-
Memory
- 4 x DDR5 DIMM slots
- Dual Channel DDR5 memory technology
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+ (OC)
- Max system memory capacity: 256GB
-
Supports XMP and EXPO memory profiles
-
Graphics & Display Outputs
- Integrated AMD RDNA graphics (actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G compatible (HDR, HDCP 2.3, up to 4K 120Hz)
-
1 x DisplayPort 1.4 with DSC (HDCP 2.3, up to 4K 120Hz)
-
Expansion & Slots
- 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode
- 1 x PCIe 4.0 x4 slot (PCIE2), supports x4 mode
- 1 x M.2 Socket (Key E) for type 2230 WiFi/BT PCIe module
-
15µ gold contact in VGA PCIe Slot (PCIE1)
-
High-Speed Storage
- 1 x Blazing M.2 (M2_1, PCIe Gen5x4, type 2280)
- 2 x Hyper M.2 (M2_2 & M2_3, PCIe Gen4x4, type 2280)
- 4 x SATA3 6.0 Gb/s connectors
- Supports NVMe SSDs as boot disks
- Supports RAID 0/1/10 for SATA and M.2 NVMe storage devices
-
Supports up to 3 x NVMe M.2 SSDs, one supporting PCIe 5.0
-
Connectivity
- Realtek 2.5G LAN (Dragon RTL8125BG)
- 802.11axe WiFi 6E module
- Bluetooth 5.2
-
MU-MIMO support
-
USB Connectivity
- Rear:
- 1 x USB 3.2 Gen2 Type-C
- 1 x USB 3.2 Gen2 Type-A
- 2 x USB 3.2 Gen1 Type-A
- 4 x USB 2.0
- Front (via headers):
- 1 x USB 3.2 Gen1 Type-C
- 4 x USB 3.2 Gen1 Type-A
- 4 x USB 2.0
-
All USB ports support ESD protection
-
Audio
- Realtek ALC897 7.1 CH HD Audio Codec
-
Nahimic Audio
-
Cooling & Heatsinks
- Supports M.2 bottom heatsink for improved SSD thermal dissipation
-
Smart Fan Speed Control on CPU and chassis fan headers
-
Build & Ease of Use
- Micro ATX form factor (9.6" x 9.6" / 24.4 cm x 24.4 cm)
- Pre-installed I/O shield for easier installation
- BIOS Flashback button for easy BIOS updates
-
ASRock Auto Driver Installer
-
Lighting & Headers
- 1 x RGB LED header
- 3 x Addressable LED headers
-
LED strip power support: up to 12V/3A (36W) and 5V/3A (15W)
-
Software & UEFI
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN software
- ASRock Polychrome SYNC
- ASRock EZ Mode & Full HD UEFI
- ASRock Instant Flash
Platform & Chipset
| Specification | Details |
|---|---|
| Form Factor | Micro ATX, 9.6" x 9.6" (24.4 cm x 24.4 cm) |
| CPU Socket | AMD Socket AM5 |
| Supported CPUs | Ryzen 9000, 8000 and 7000 Series |
| Chipset | AMD B850 |
Expansion & Graphics
| Component | Details |
|---|---|
| PCIe Slots | 1 x PCIe 5.0 x16 (PCIE1), 1 x PCIe 4.0 x4 (PCIE2) |
| PCIe Notes | PCIE1: Gen5x16 with 9000 & 7000; Gen4x8 with 8000 (Phoenix 1); Gen4x4 with 8000 (Phoenix 2). If M2_3 is occupied, PCIE2 will be disabled. |
| M.2 (Key E) | 1 x M.2 Socket (Key E) for type 2230 WiFi/BT PCIe module |
| Integrated GPU | AMD RDNA graphics (support varies by CPU) |
| Video Outputs | 1 x HDMI 2.1 TMDS/FRL 8G (HDR, HDCP 2.3, up to 4K 120Hz), 1 x DisplayPort 1.4 with DSC (HDCP 2.3, up to 4K 120Hz) |
Memory
| Specification | Details |
|---|---|
| Memory Type | DDR5, Dual Channel |
| Slots | 4 x DDR5 DIMM |
| Capacity | Up to 256GB |
| Supported Modules | DDR5 ECC/non-ECC, un-buffered |
| Max Speed | Up to 8000+ (OC) |
| Profile Support | XMP, EXPO |
Storage
| Connector | Details |
|---|---|
| M2_1 (CPU) | Blazing M.2, Key M, type 2280, PCIe Gen5x4 (128 Gb/s). Gen5x4 with 9000 & 7000; Gen4x4 with 8000 (Phoenix 1 & Phoenix 2). First priority slot. |
| M2_2 (Chipset) | Hyper M.2, Key M, type 2280, PCIe Gen4x4 (64 Gb/s) |
| M2_3 (Chipset) | Hyper M.2, Key M, type 2280, PCIe Gen4x4 (64 Gb/s). Runs Gen4x4 with 9000, 7000, 8000 (Phoenix 1); Gen4x2 with 8000 (Phoenix 2). |
| SATA | 4 x SATA3 6.0 Gb/s connectors |
| RAID | RAID 0, 1, 10 for SATA; RAID 0, 1, 10 for M.2 NVMe (requires additional M.2 NVMe expansion cards for RAID 10) |
Note: If M2_3 is occupied, the PCIe 4.0 x4 slot (PCIE2) will be disabled.
Networking & Wireless
| Feature | Details |
|---|---|
| LAN | Realtek Dragon RTL8125BG 2.5G LAN (10/100/1000/2500 Mb/s) |
| LAN Software | Dragon 2.5G LAN software with bandwidth control, visual UI, usage statistics, game/browser/streaming profiles, user-customized priority control |
| Wireless LAN | 802.11axe WiFi 6E module, IEEE 802.11a/b/g/n/ac/ax/axe, Dual-Band 2x2 with extended 6GHz band support |
| WiFi Notes | WiFi 6E module supported on Windows 11 only; no Windows 10 driver. 6GHz band availability depends on regional regulations and updates. 6GHz router required. |
| Antennas | 2 x antennas (2T2R diversity technology) |
| Bluetooth | Bluetooth 5.2 |
Audio
| Specification | Details |
|---|---|
| Codec | Realtek ALC897 |
| Channels | 7.1 CH HD Audio |
| Enhancements | Nahimic Audio |
| Rear Audio | Line In / Front Speaker / Microphone jacks |
USB & Rear I/O
USB Configuration
- CPU:
- 1 x USB 3.2 Gen2 Type-C (rear)
- 1 x USB 3.2 Gen2 Type-A (rear)
- Chipset (front via headers):
- 1 x USB 3.2 Gen1 Type-C
- 6 x USB 3.2 Gen1 Type-A (2 rear, 4 front)
- 8 x USB 2.0 (4 rear, 4 front)
- All USB ports support ESD protection.

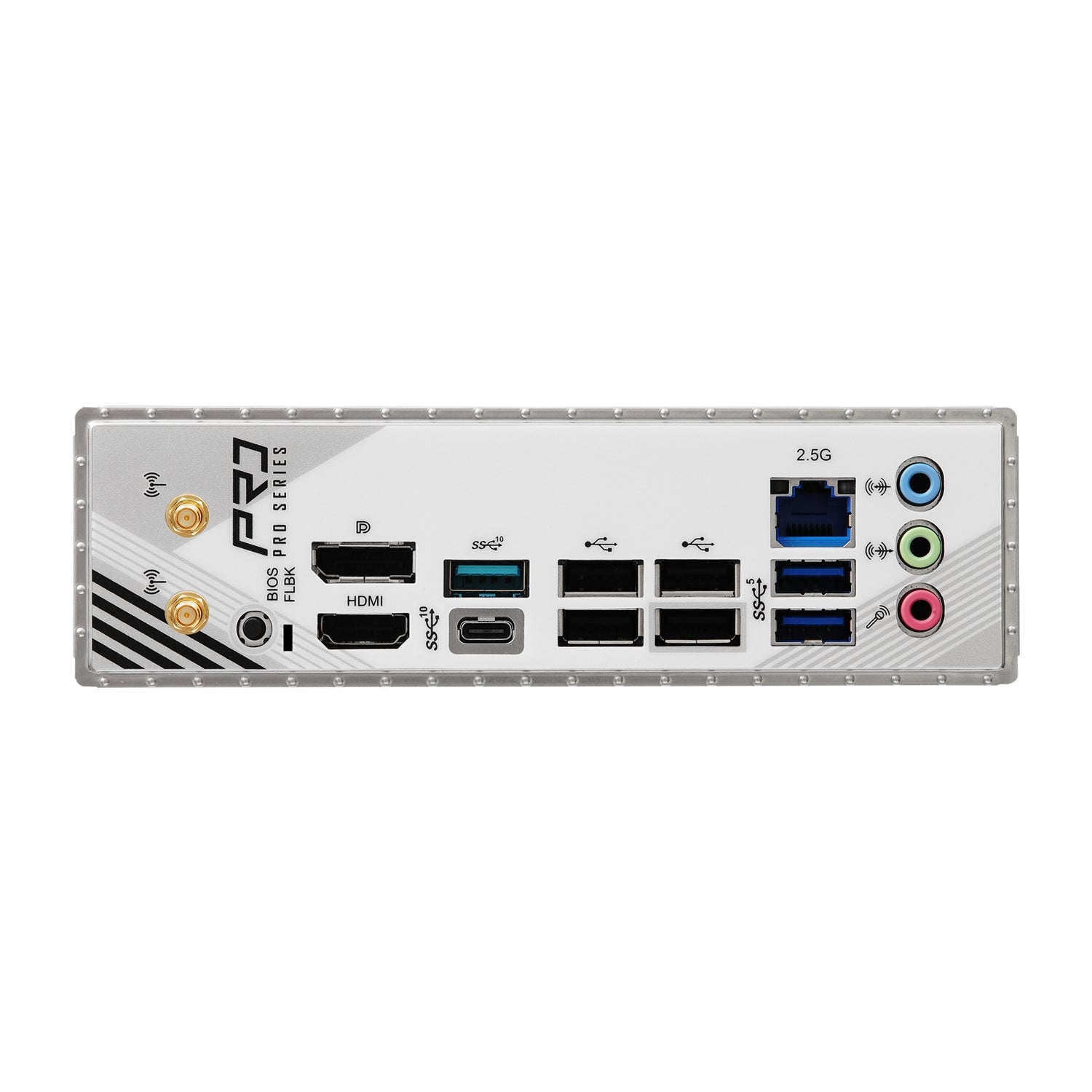

Rear Panel I/O
- 2 x Antenna mounting points
- 1 x HDMI port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C
- 2 x USB 3.2 Gen1
- 4 x USB 2.0
- 1 x RJ-45 2.5G LAN port
- 1 x BIOS Flashback button
- HD Audio jacks (Line In / Front Speaker / Microphone)
Internal Headers & Connectors
- 1 x SPI TPM header
- 1 x Power LED and Speaker header
- 1 x RGB LED header
- 3 x Addressable LED headers
- 2 x CPU fan connectors (4-pin, Smart Fan Speed Control)
- 3 x Chassis fan connectors (4-pin, Smart Fan Speed Control)
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V power connector (Hi-Density)
- 1 x 4-pin 12V power connector (Hi-Density)
- 1 x Front panel audio connector
- 2 x USB 2.0 headers (support 4 x USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (support 4 x USB 3.2 Gen1 ports)
- 1 x Front panel USB 3.2 Gen1 Type-C header
Power & Fan Notes:
- Supports up to 12V/3A (36W) LED strip total
- Supports up to 5V/3A (15W) LED strip total
- CPU_FAN1: up to 1A (12W)
- CPU_FAN2 & CHA_FAN1–3: up to 3A (36W) each
- CPU_FAN2 & CHA_FAN1–3 can auto-detect 3-pin or 4-pin fans
BIOS & Software
| Category | Details |
|---|---|
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI |
| UEFI | ASRock EZ Mode, Full HD UEFI, Instant Flash, Auto Driver Installer |
| Software | ASRock Motherboard Utility (A-Tuning), Dragon 2.5G LAN, Polychrome SYNC |
Operating System & Certifications
- OS Support
- Microsoft Windows 10 64-bit
-
Microsoft Windows 11 64-bit
-
Certifications
- FCC
- CE
- ErP/EuP ready (ErP/EuP ready power supply required)

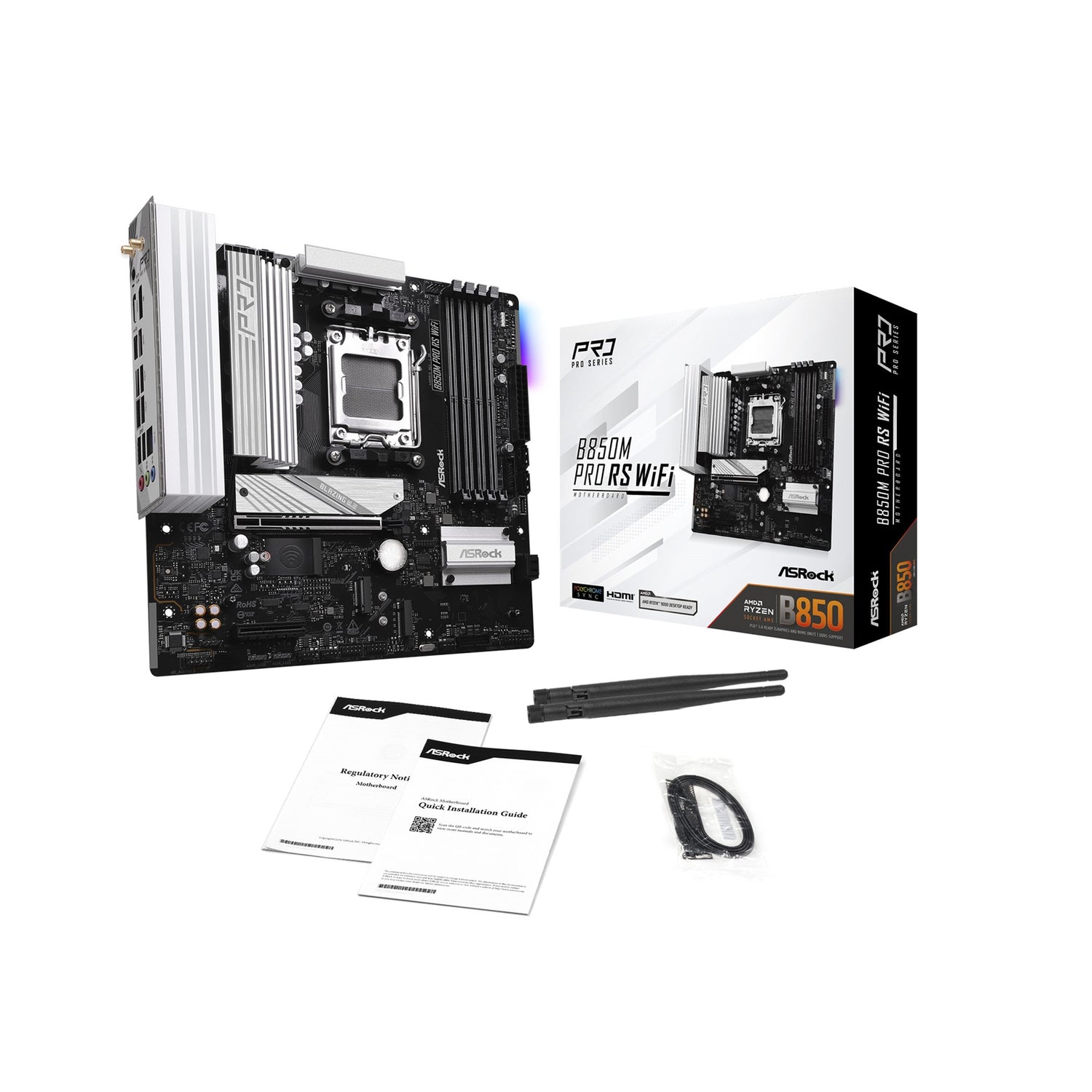

Included Accessories
- 2 x SATA data cables
- 2 x ASRock WiFi 2.4/5/6 GHz antennas
Unique & Convenience Features
- Superb productivity platform with PCIe Gen5 (graphics, M.2) and Dual Channel DDR5
- Rock-solid durability with 8+2+1 Power Phase Dr.MOS design
- Pre-installed I/O shield for faster, easier assembly
- Ultrafast connectivity with 2.5G LAN and WiFi 6E
- EZ Update via BIOS Flashback button and Auto Driver Installer
- EZ Troubleshooter with ASRock Post Status Checker
