8 Digit LED Display Module
$8.00

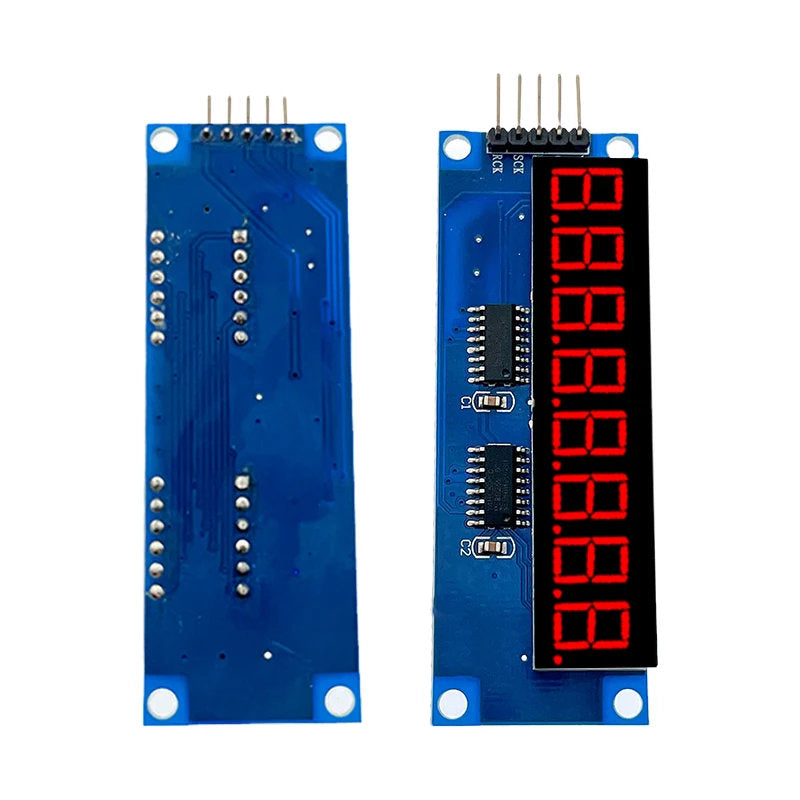

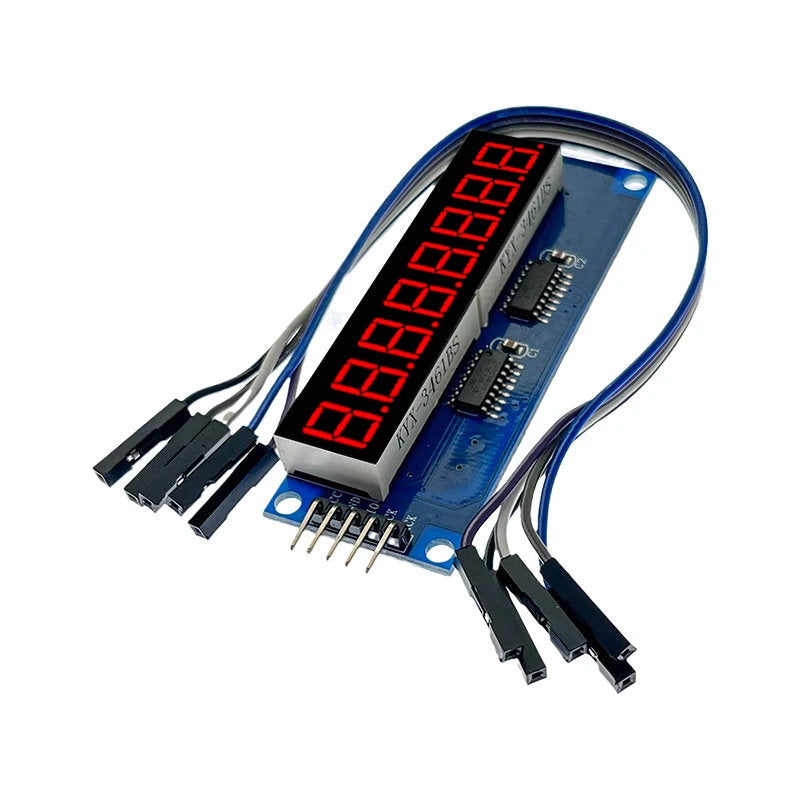

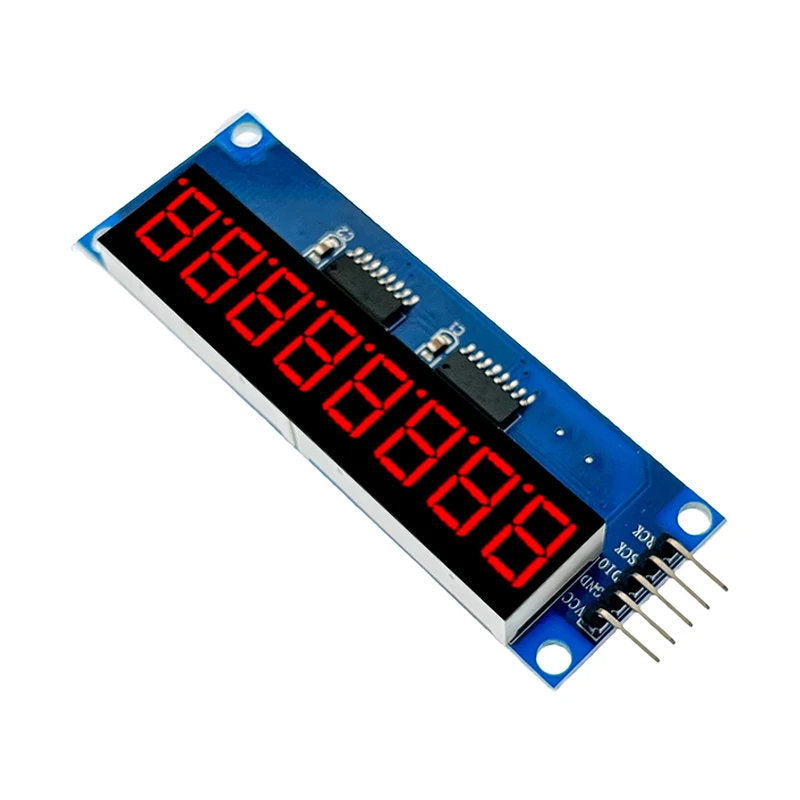

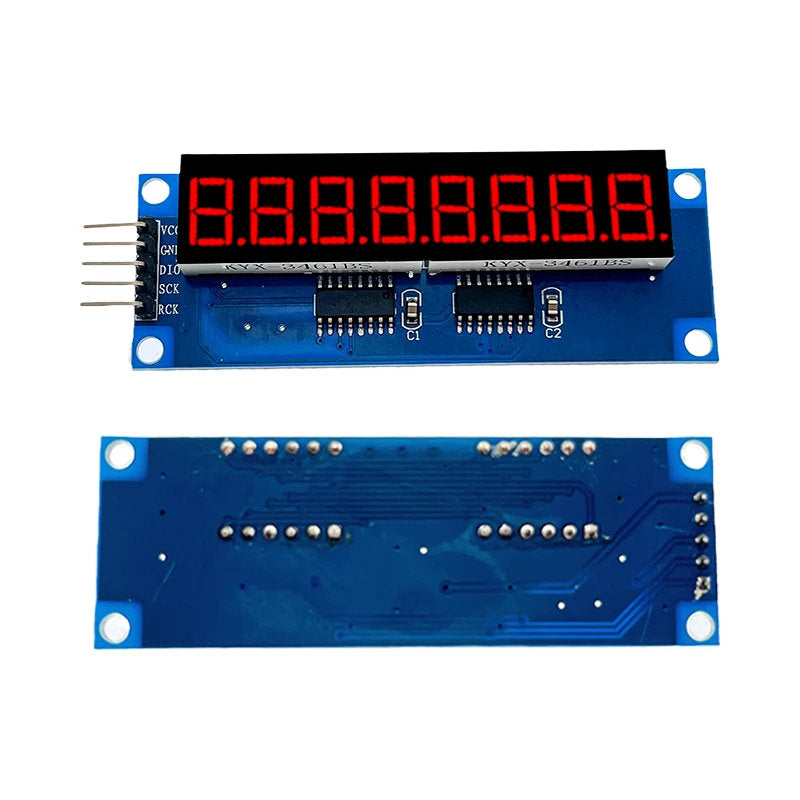

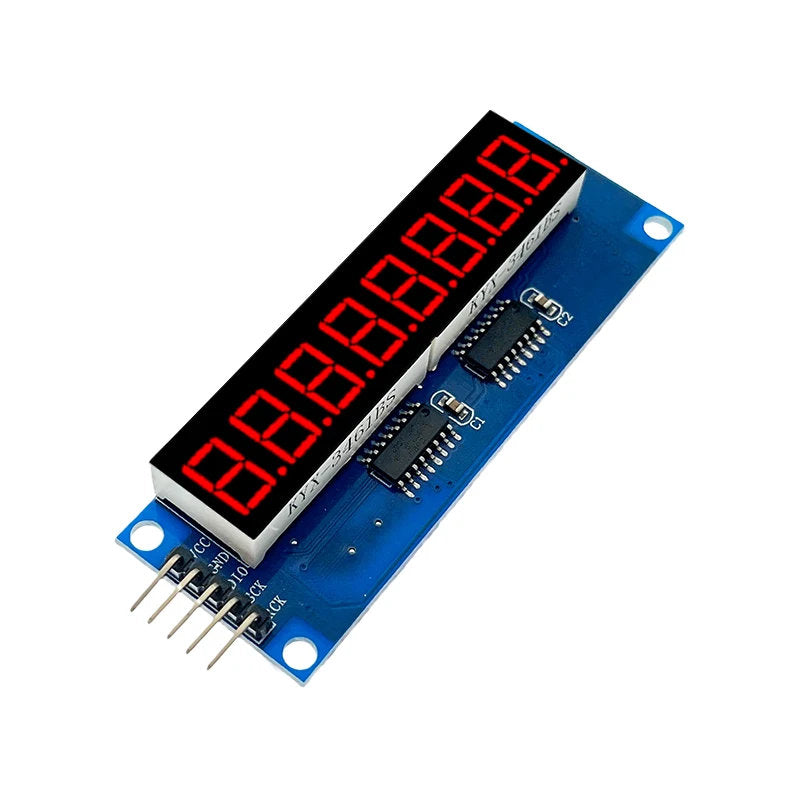

8-Digit LED Seven-Segment Display Module with Dual 74HC595 Drivers
The 74HC595 is a simple and efficient shift register IC that allows data to be clocked in and latched, helping reduce the number of I/O pins required on a microcontroller.
This display module integrates two 74HC595 shift registers to drive an 8-digit seven-segment LED display, making it suitable for a wide range of electronic and DIY projects.
By using dynamic scanning principles, the module enables digital control with minimal I/O usage while maintaining clear and stable display performance.
Key Features
-
Dual 74HC595 shift register design
-
8-digit seven-segment LED display module
-
Requires only 3 single-chip I/O ports through 595-driven digital control
-
Operates using dynamic scanning display principle
-
Supports both 3.3V and 5V operating voltages
Specifications
| Parameter | Description |
|---|---|
| Driver IC | Two 74HC595 shift registers |
| Control Method | 595-driven digital control, dynamic scanning |
| Required I/O Ports | 3 single-chip I/O ports |
| Operating Voltage | 3.3V – 5V |
| Dupont Line Length | 20 cm |
| PCB Size | 73 × 25 mm |
| Net Weight | 16.8 g |
| Application | Electronic products or DIY projects |
Package Includes
-
1 × 8-Digit LED Display Module with 8-Parallel 595 Driver
