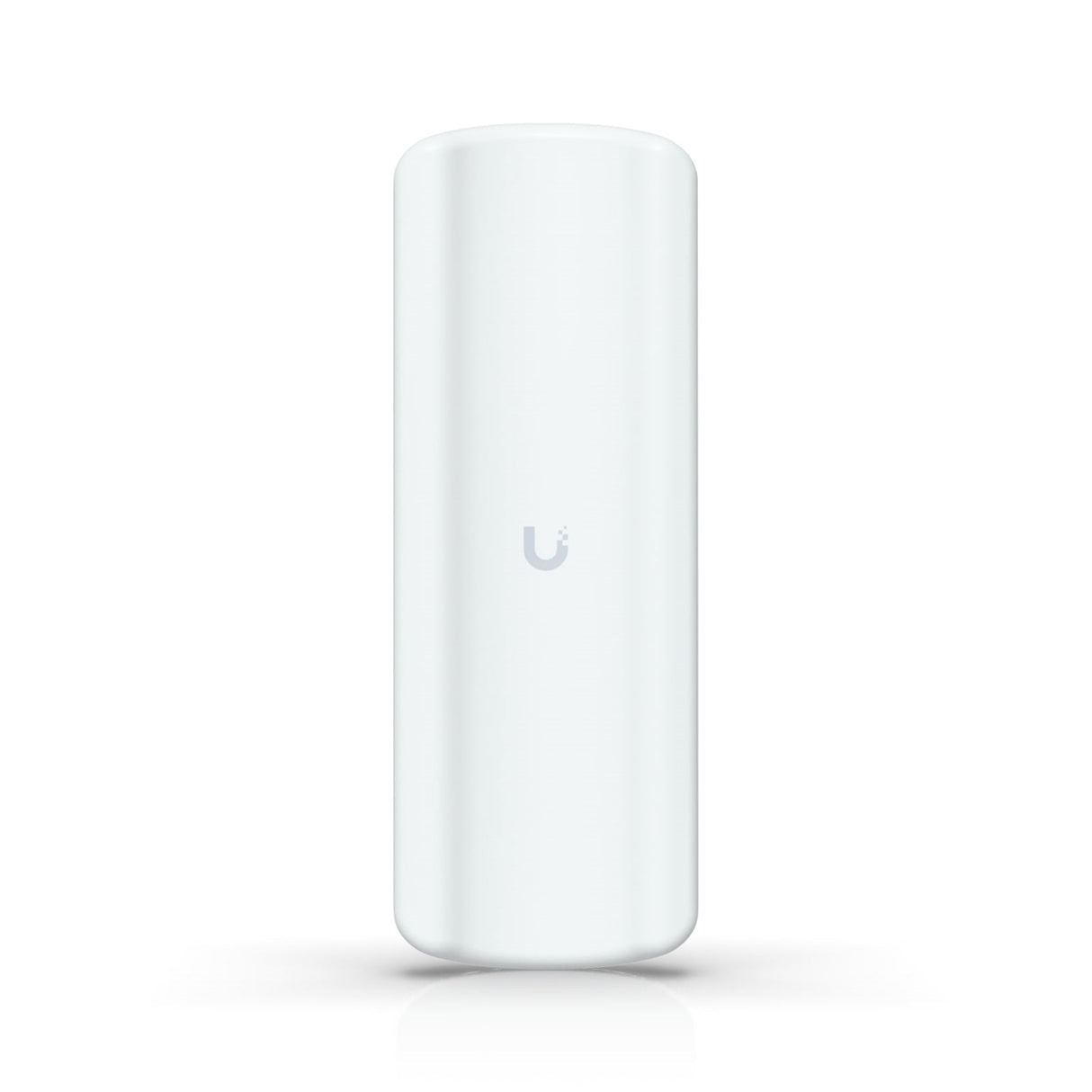

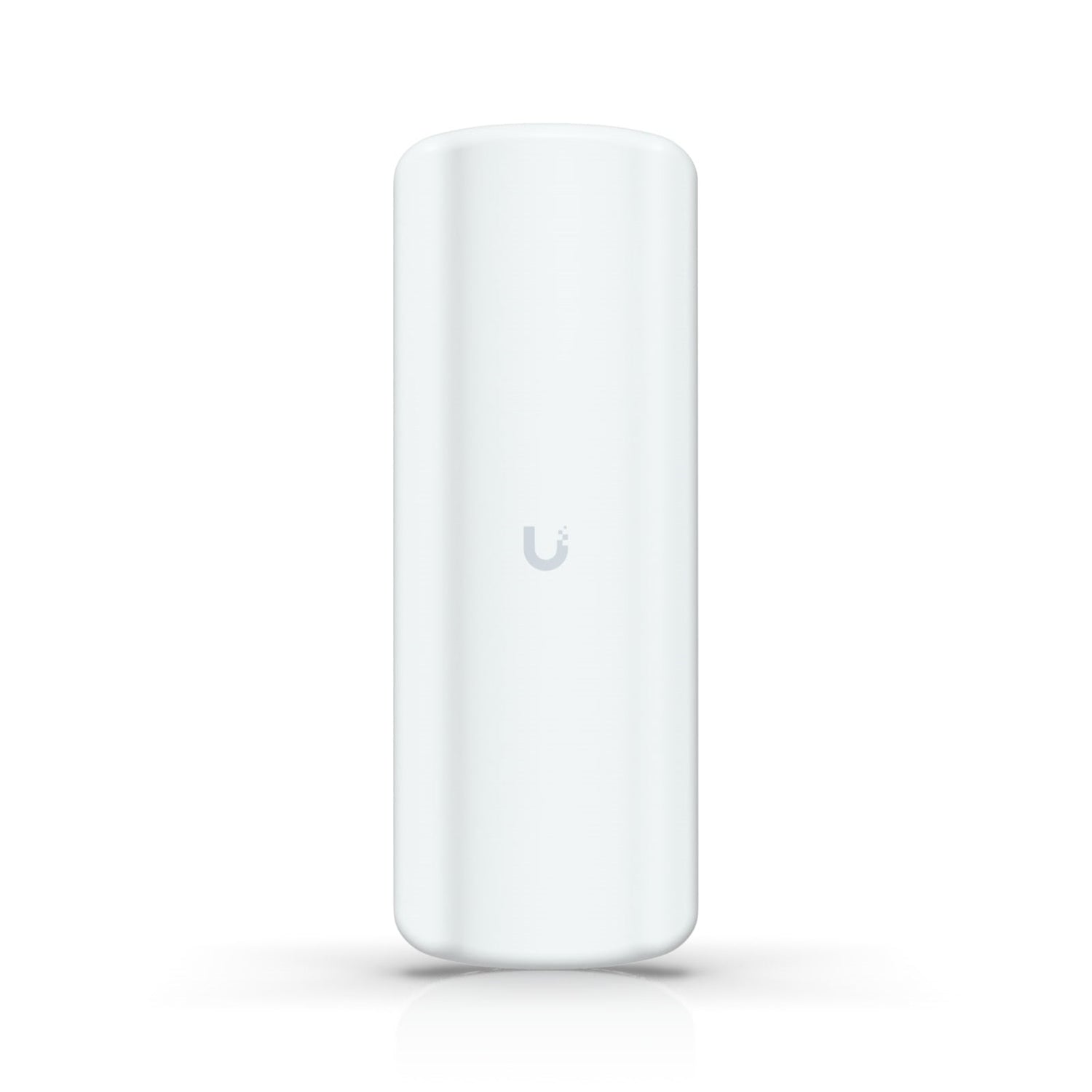

Ubiquiti UDB-Pro-Sector UniFi Device Bridge Pro Sector WiFi 5 Point To Multi-Point Link (PtMP)
$294.00
Device Bridge Pro Sector 5 GHz Point-to-Multipoint Access Point
The Device Bridge Pro Sector is a 5 GHz point-to-multipoint access point designed to wirelessly bridge 40+ Device Bridge Pro clients at distances of 5+ km.
Key Features
- 5 GHz WiFi 5 (802.11ac) point-to-multipoint access point
- Supports 40+ Device Bridge Pro clients
- Wireless bridging at 5+ km distances
- 5 km (3.1 mi) coverage area
- 2x2 MIMO performance
- Weatherproof IPX6-rated enclosure
- Gigabit Ethernet with PoE power input
- Pole-mountable, UV-stabilized construction
- NDAA compliant with CE, FCC, and IC certifications
Specifications
Overview
| Parameter | Details |
|---|---|
| Product Type | 5 GHz point-to-multipoint access point |
| Coverage Area | 5 km (3.1 mi) |
| WiFi Standard | WiFi 5 (802.11ac) |
| Spatial Streams | 2 |
| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
Dimensions & Weight
| Parameter | Details |
|---|---|
| Dimensions | 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8") |
| Weight (Device) | 782 g (1.7 lb) |
| Weight (With Mount) | 835 g (1.8 lb) |
Performance
| Parameter | Details |
|---|---|
| MIMO | 5 GHz – 2 x 2 |
| Max. Data Rate | 5 GHz – 400 Mbps (BW40) |
| Antenna Gain | 5 GHz – 17 dBi |
| Max. TX Power | 5 GHz – 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Channel Bandwidth | 20/40 MHz |
Supported Data Rates
| Standard | Data Rates |
|---|---|
| 802.11ac (WiFi 5) | 6.5 Mbps to 400 Mbps (MCS0–MCS9 NSS1/2, VHT 20/40) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Wireless Security
- WPA2 AES
Hardware
| Parameter | Details |
|---|---|
| Max. Power Consumption | 6 W |
| Supported Voltage Range | 42.5–57 V DC |
| Networking Interface | (1) GbE RJ45 port |
| Antennas | Internal |
| Management | Ethernet, WiFi |
Mechanical & Environmental
| Parameter | Details |
|---|---|
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.9–2.4" (24–60 mm) |
| Wind Loading | 128.2 N at 200 km/h |
| Button | (1) Factory-reset |
| LEDs | System – Power, Ethernet |
| Ambient Operating Temp. | -40 to 60°C (-40 to 140°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Compliance & Certifications
| Parameter | Details |
|---|---|
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
