SX1308
£3.29

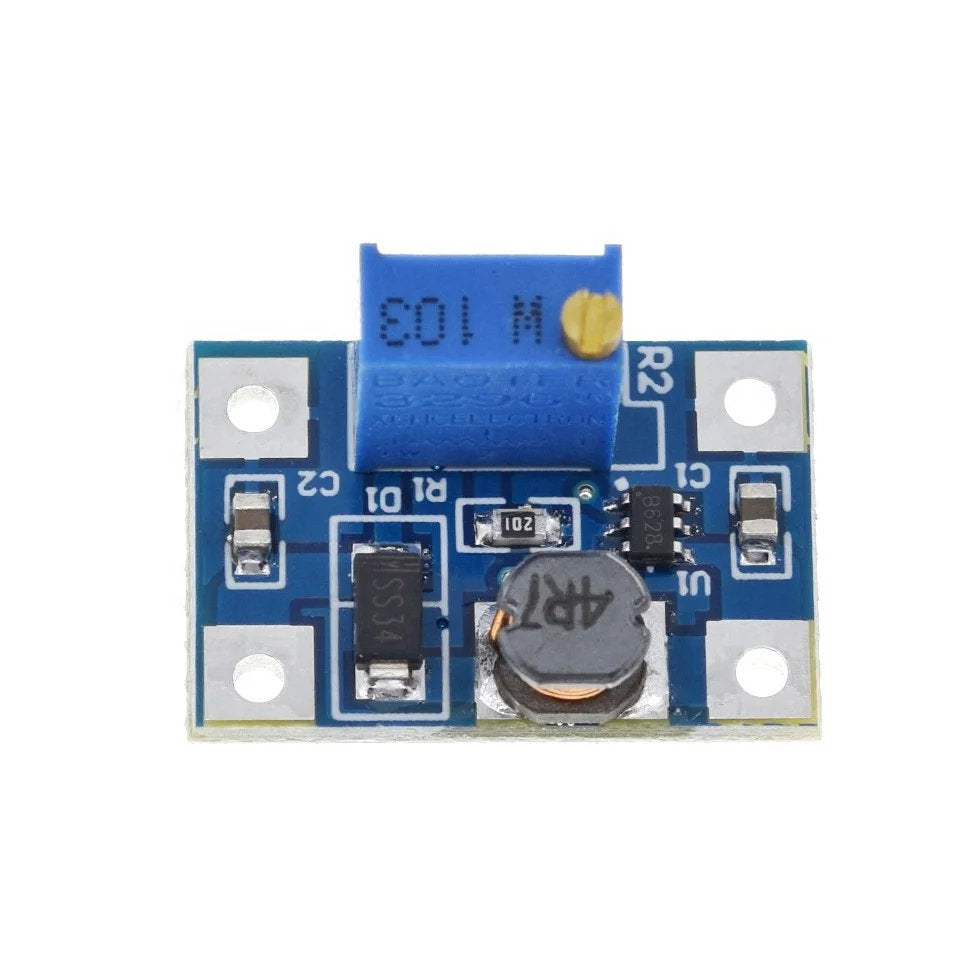

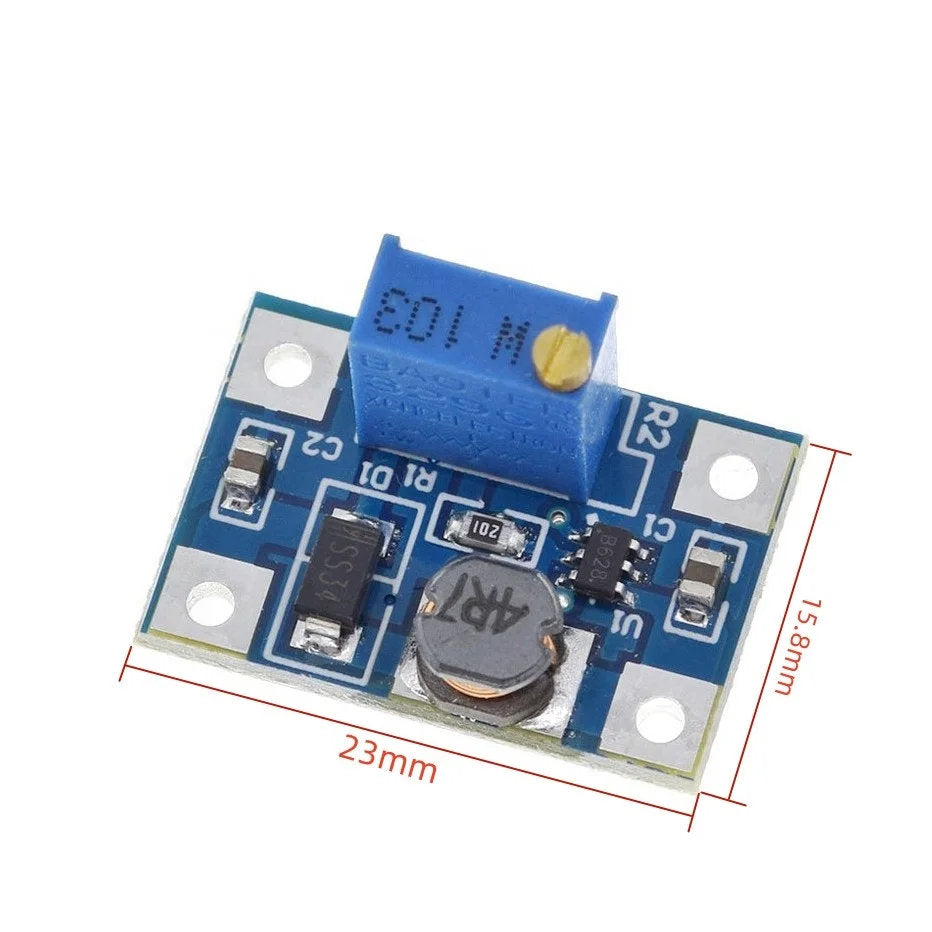

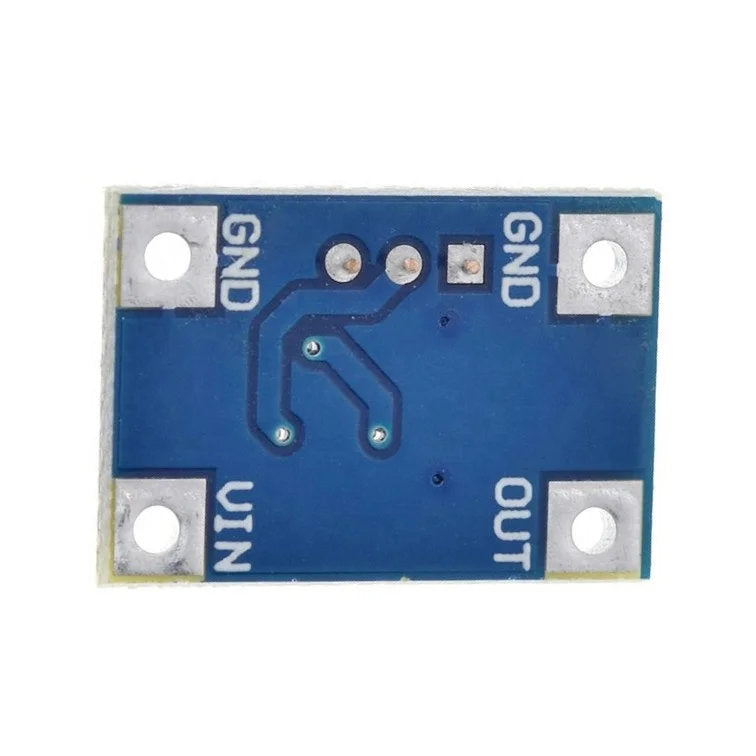

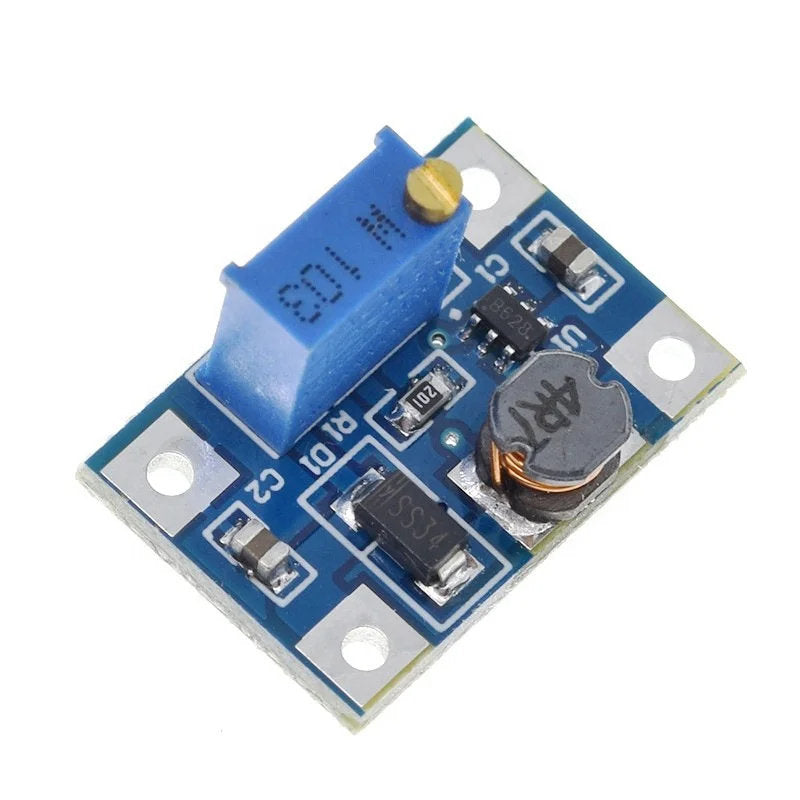

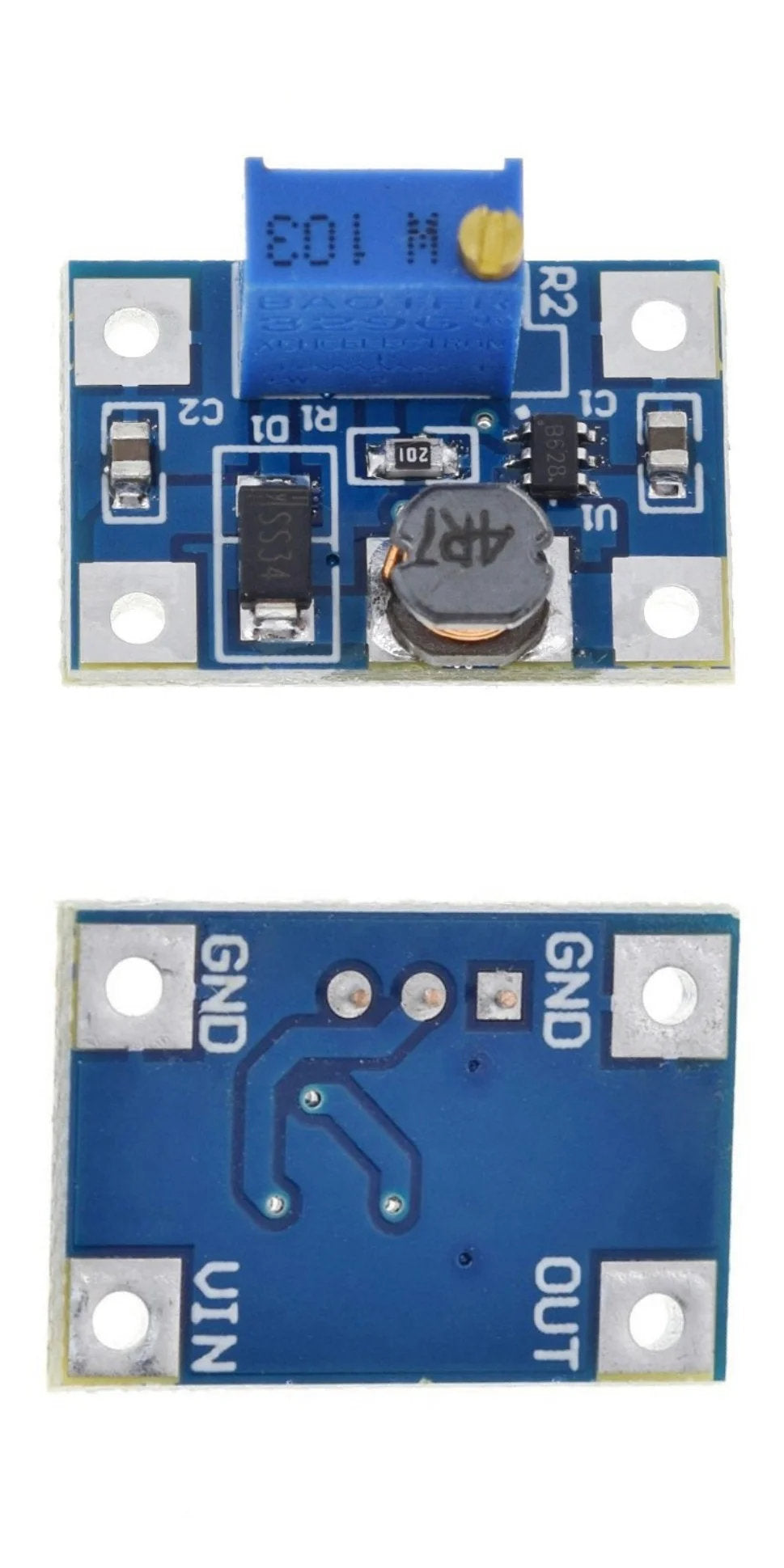

SX1308 DC-DC Boost Converter Module
The SX1308 booster module features the SX1308 chip in a compact design with high conversion efficiency. It provides adjustable output power with a maximum output voltage of up to 28V and integrates a low RDS(on) MOSFET for stable, high-current performance.
Designed for a wide range of power applications, this module is commonly used in 3G network products, digital devices, mobile power supplies, battery-powered systems, and electronic equipment.
Key Features
-
Compact module size with high efficiency
-
Adjustable output voltage via onboard 10K potentiometer
-
Integrated low RDS(on) MOSFET (100mΩ)
-
Supports large current output up to 2A
-
Built-in short-circuit protection
-
Overheating protection
-
High-frequency operation at 1.2MHz
-
Efficiency up to 95%
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | DC 2–24V |
| Output Voltage | DC 2–28V (adjustable) |
| Maximum Output Current | 2A |
| Switching Frequency | 1.2MHz |
| Conversion Efficiency | Up to 95% |
This SX1308 boost converter module offers reliable voltage boosting performance in a small, efficient form factor for a variety of power supply applications.
