PCA9515A
$7.00

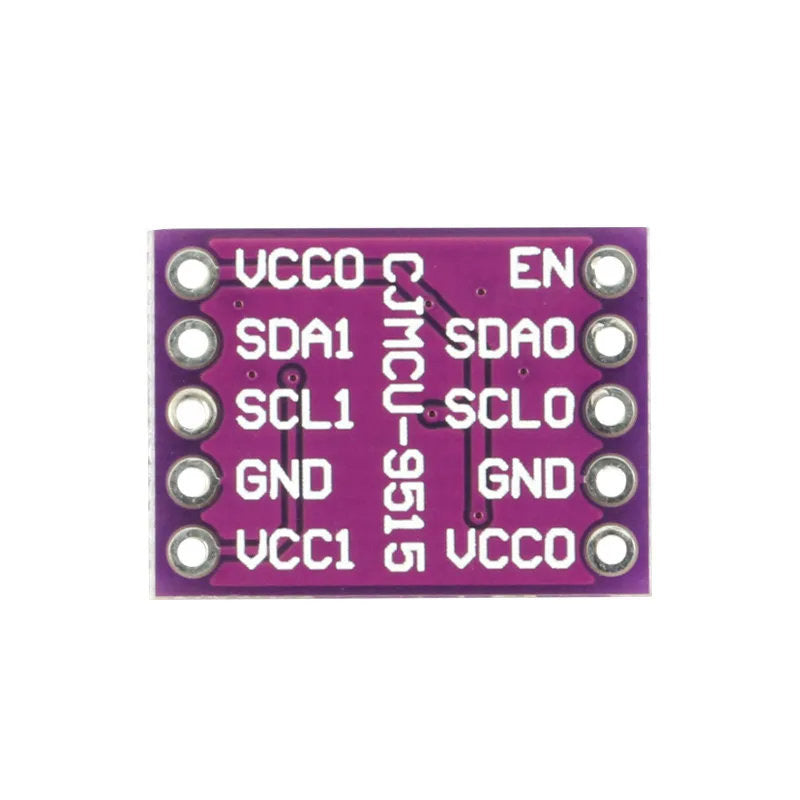

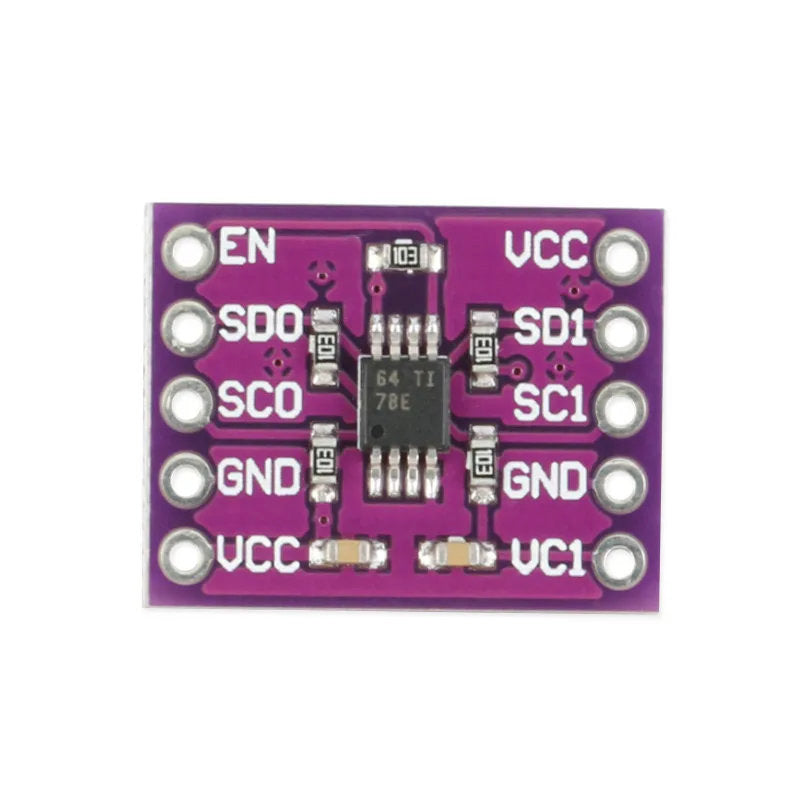

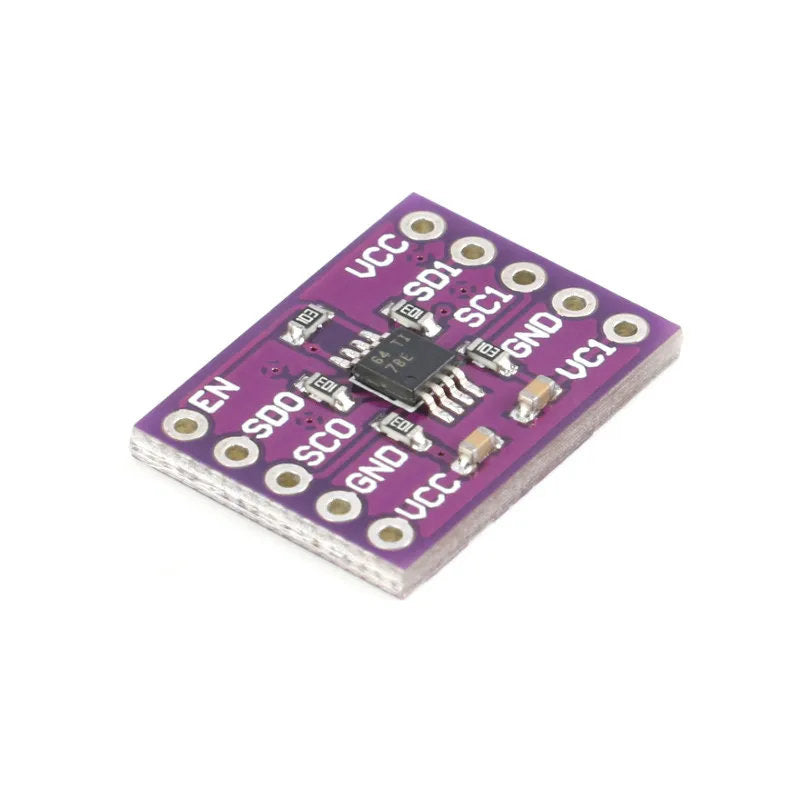

PCA9515A Dual-Channel Bidirectional I²C / SMBus Repeater Module (400 kHz)
The PCA9515A is a compact dual-channel bidirectional buffer designed to extend and isolate I²C and SMBus communication. It supports mixed-voltage environments and helps improve signal integrity on complex bus designs, while maintaining full compatibility with standard open-drain I²C operation.
Key Features
-
Dual-channel bidirectional buffers for I²C / SMBus
-
I²C and SMBus compatible operation
-
400 kHz maximum bus speed
-
Active-high repeater enable input
-
Open-drain I²C I/O architecture
-
5.5 V tolerant I²C I/O and enable input, supporting mixed-mode signal operation
Technical Specifications
| Parameter | Description |
|---|---|
| Model | PCA9515A |
| Bus Type | I²C / SMBus |
| Channel Count | 2 |
| Maximum Frequency | 400 kHz |
| Operating Temperature | -40 °C to +85 °C |
| I/O Voltage Tolerance | 5.5 V tolerant |
| Enable Input | Active-high |
| Board Size | 18.5 × 13.5 mm |
Package Includes
-

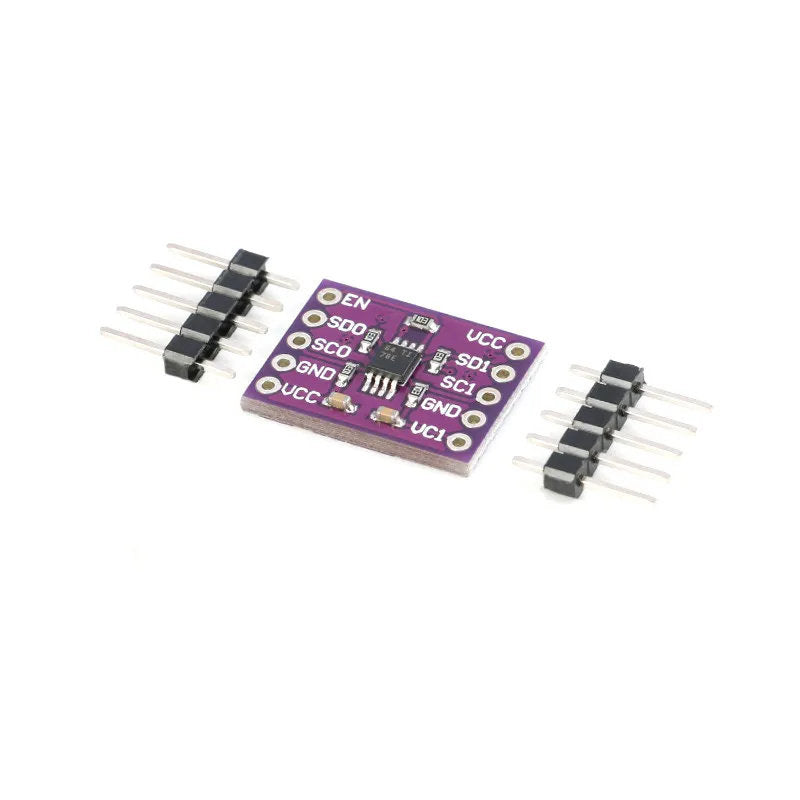

1 × PCA9515A Dual-Channel Bidirectional I²C / SMBus Repeater Module (400 kHz)
This module offers a reliable solution for buffering and repeating I²C or SMBus signals in designs that require dual-channel support, voltage tolerance, and stable operation across a wide temperature range.
