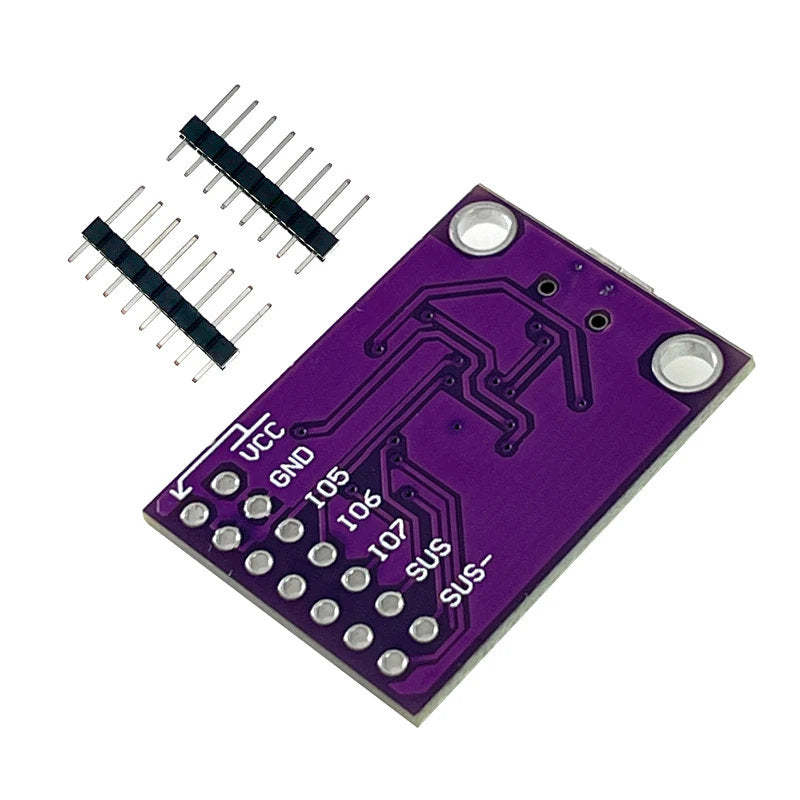

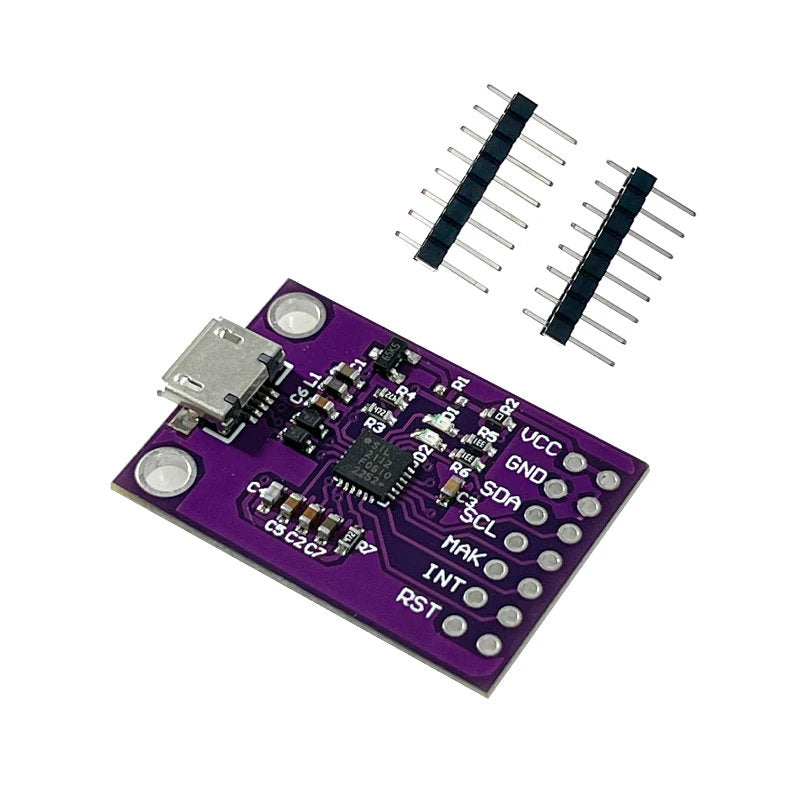

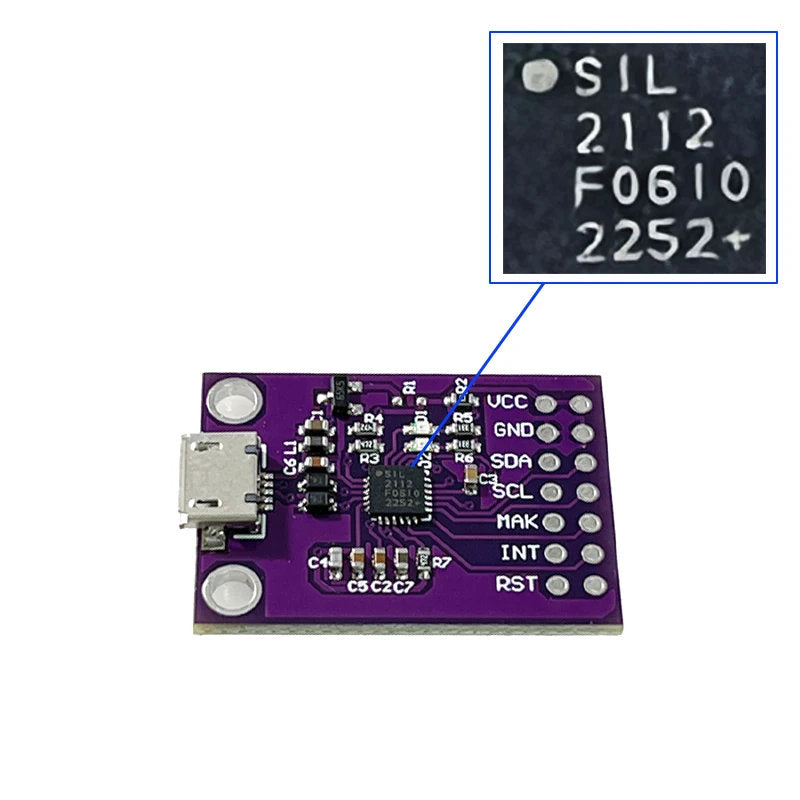

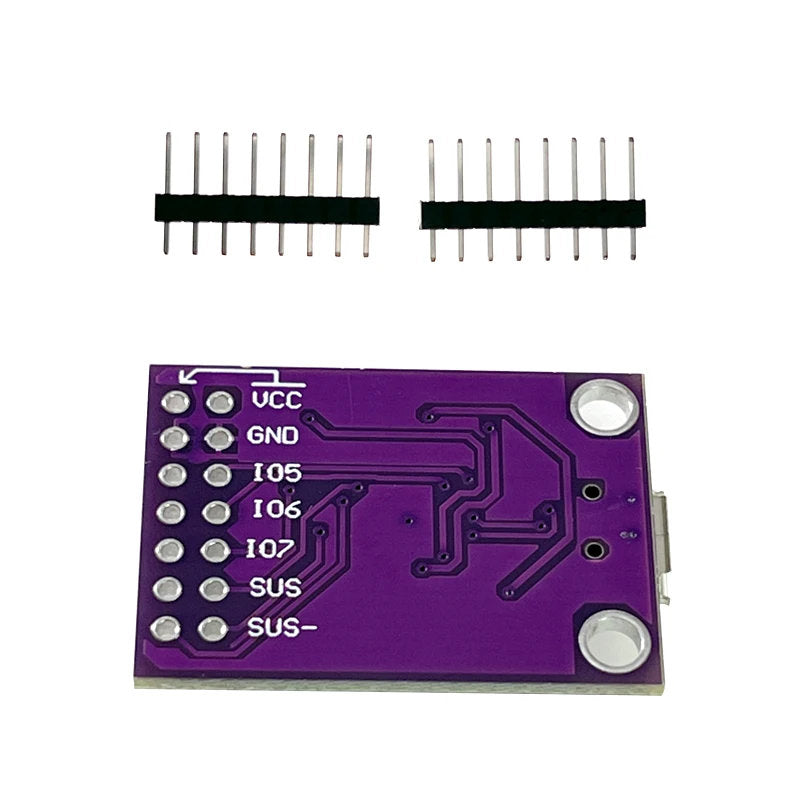

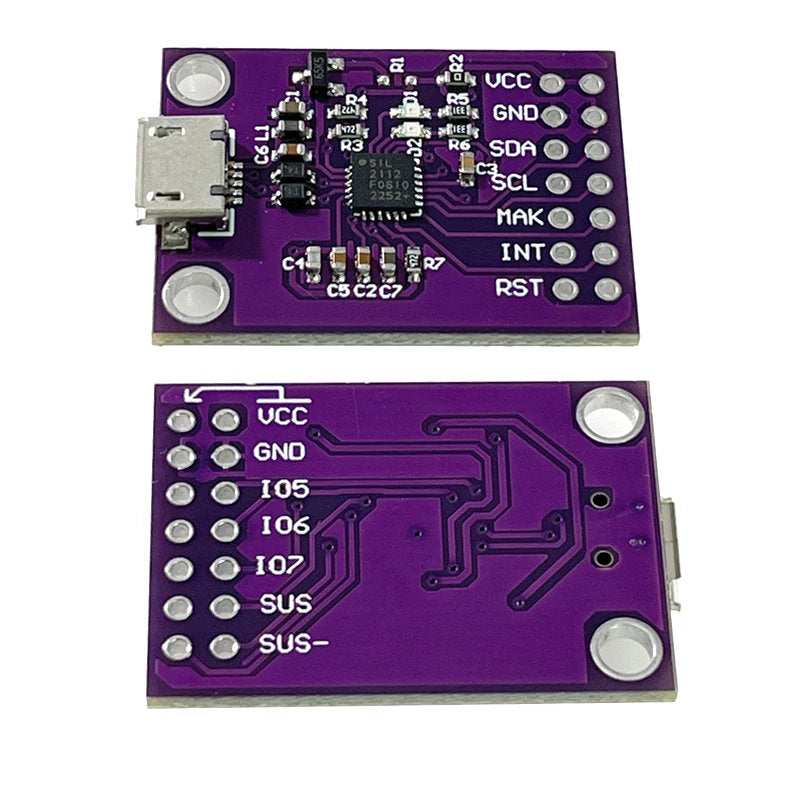

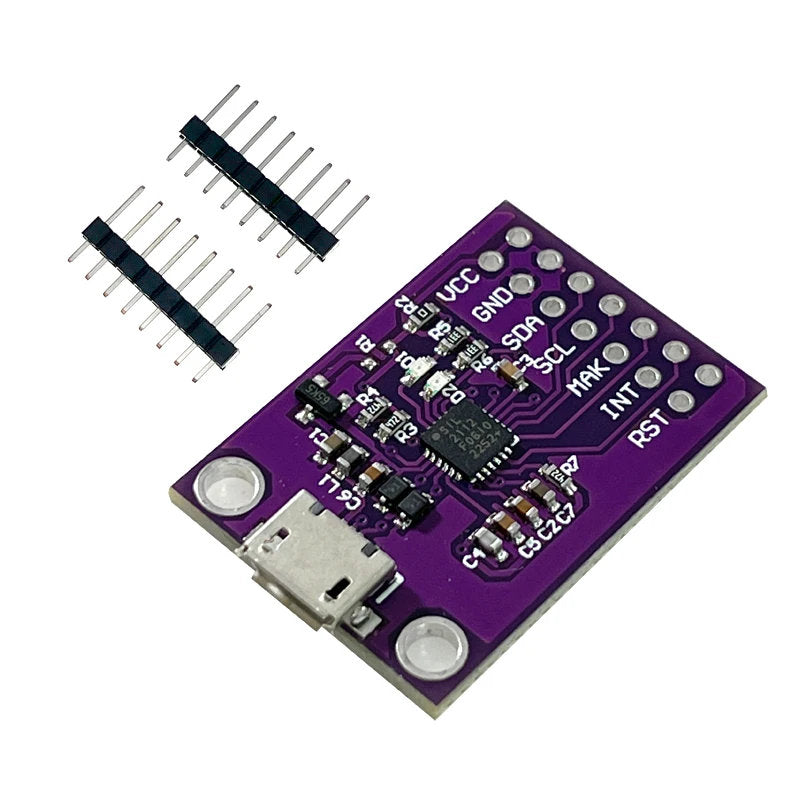

CP2112 Module
£8.24
CP2112 USB to SMBus Bridge Controller
The CP2112 is a highly integrated USB to SMBus bridge controller designed for reliable connectivity and flexible configuration. Built with high-quality materials, it offers durable performance in a compact, portable form factor. Configuration and customization are handled through a simple GUI-based tool, removing the need for complex firmware or driver development for standard HID class devices.
Key Features
-
High-quality materials for long-term durability
-
Highly integrated design combining:
-
USB 2.0 full-speed function controller
-
USB transceiver oscillator
-
8 GPIO pins
-
-
Compact and easy to carry
-
GUI-based configurator for all customization and configuration options
-
Eliminates complex firmware and driver development for standard HID class devices
-
Suitable for a wide range of applications
Technical Specifications
| Parameter | Description |
|---|---|
| USB Bus Power | 4.0 V to 5.25 V |
| Self Power | 3.0 V to 3.6 V |
| I/O Voltage | 1.8 V to VDD |
| Operating Temperature | -40 °C to 85 °C |
| Reset & Regulation | On-chip power-on reset circuit; on-chip voltage regulator with 3.45 V output |
| USB Compliance | USB 2.0 specification, full-speed (12 Mbps) |
| Suspend Support | USB pending status via SUSPEND pin |
| Programmable Memory | 194-byte one-time programmable ROM for customizable product information |
| SMBus Buffer | 512-byte SMBus data buffer |
| SMBus Addressing | Configurable clock speed; 7-bit device address (CP2112 slave address) |
| GPIO | 8 GPIO configurable as input/output and open-drain or push-pull |
| Clock Output | Configurable clock output from 48 MHz to 94 kHz |
| Software Support | Windows, Mac, and Linux HID-to-SMBus library with open-access API |
| Indicators | Read/write SMBus device switching LED |
Application Areas
-
Portable controllers
-
USB dongles
-
Data logging systems
This CP2112 USB to SMBus bridge controller delivers an efficient, configurable solution for USB-based SMBus communication across multiple platforms.
